一,产品概述(General Description)

The JTMH8701 is hih efficiency, fixed frequency, Buck-Boost DC/DC converter that operates from input voltages above, below or equal to the output voltage. The devices are suitable for single lithium-ion, multicell alkaline or NiMH applications where the output voltage is within the battery voltage range.

The switching frequencies up to 1.5 MHz could be fixed by an external resistor. Also the oscillator could be synchronized to an external clock. The quiescent current is 1mA which maximizes the battery life in portable applications.

Other features include a 1µA shutdown, thermal shutdown and current limit. The JTMH8701 is available in the 10-pin thermally enhanced MSOP package (or upon request).

二.产品特点(Features)

Ø Synchronous Rectification up to 95% Efficiency

Ø Single Inductor

Ø Fixed Frequency Operation with Battery Voltages Above, Below or Equal to the Output

Ø Quiescent Current: 1mA (50µA low power mode: mode pin high)

Ø Continuous Output Current up to 1A

Ø Input Voltage Range: 1.8V to 5.5V

Ø Programmable Oscillator Frequency from 350kHz to 1.5MHz

Ø No Schottky Diodes Required (V_OUT< 4.3V)

Ø V_OUT Disconnected from V_IN During Shutdown

Ø Shutdown Current: <1 µA

Ø Small Thermally Enhanced 8-pin SOP Package

三,应用范围 (Applications)

Ø Handheld Instruments

Ø MP3/MP4 Players

Ø Palmtop computers

Ø Digital Cameras

四.技术规格书下载（产品PDF）

五,产品封装图 (Package)

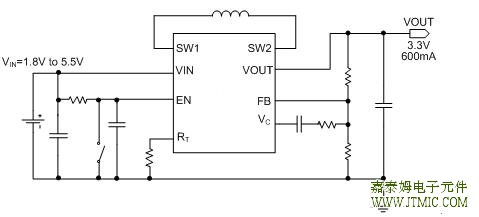

六.电路原理图

七,功能概述

八,相关芯片选择指南
