The JTSU8665 IS step-up DC/DC converters designed to drive up to 8 LEDs in series from a Li-Ion cell. Series connection of the LEDs provides identical LED currents and eliminates the need for ballas

                          目录n9H嘉泰姆

   1.产品概述      2.产品特点      3.应用范围     4.技术规格书下载（PDF文档）</span>n9H嘉泰姆

   5.产品封装      6.电路原理图</strong>     7.相关产品n9H嘉泰姆

一.产品概述n9H嘉泰姆

   The JTSU8665 IS step-up DC/DC converters designed to drive up to 8 LEDs n9H嘉泰姆

in series from a Li-Ion cell. Series connection of the LEDs provides identical n9H嘉泰姆

LED currents and eliminates the need for ballast resistors. These devices n9H嘉泰姆

integrate the Schottky diode required externally on competing devices. n9H嘉泰姆

Additional features include output voltage limiting when LEDs are disconnected, n9H嘉泰姆

onepin shutdown and dimming control. The JTSU8665 has internal soft-start. n9H嘉泰姆

The JTSU8665 switches at 1.2MHz, allowing the use of tiny external components. n9H嘉泰姆

Constant frequency switching results in low input noise and a small output capacitor. n9H嘉泰姆

 Just 0.22μF is required for 4-, 6- or 8-LED applications. The JTSU8665 is n9H嘉泰姆

available in low profile(1mm)6-lead  n9H嘉泰姆

二.产品特点n9H嘉泰姆

■ Inherently Matched LED Current n9H嘉泰姆

■ Drives Up to 8 LEDs from a 3.6V Supply n9H嘉泰姆

■ No External Schottky Diode Required n9H嘉泰姆

■ 1.2MHz Switching Frequency n9H嘉泰姆

■ Automatic Soft-Start n9H嘉泰姆

■ Open LED Protection n9H嘉泰姆

■ High Efficiency: 81% n9H嘉泰姆

■ Requires Only 0.22mF Output Capacitor n9H嘉泰姆

■ Low Profile (1mm) SOT-23 Packagingn9H嘉泰姆

三.应用范围n9H嘉泰姆

■Cellular Phones n9H嘉泰姆

■ PDAs, Handheld Computers n9H嘉泰姆

■ Digital Cameras n9H嘉泰姆

■ MP3 Players n9H嘉泰姆

■ GPS Receivers    n9H嘉泰姆

四.技术规格书（产品PDF)n9H嘉泰姆

需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持</span>！</span>n9H嘉泰姆

 n9H嘉泰姆

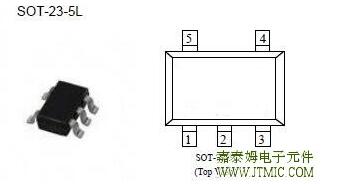

五.产品封装图</span>n9H嘉泰姆

  n9H嘉泰姆

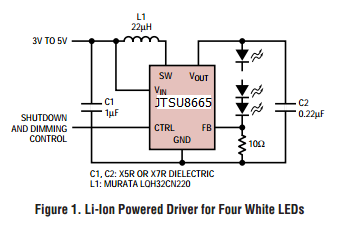

六.电路原理图</strong>n9H嘉泰姆

   n9H嘉泰姆

七.相关芯片选择指南n9H嘉泰姆
