Dual N-Channel, 20V, 6A, Power MOSFET The JTMD2178 is Dual N-Channel enhancement MOS Field Effect Transistor and connecting the Drains on the circuit board is not required because the Drains of the M

发布时间：2020-04-06 09:43:38 浏览次数：710 作者：嘉泰姆

摘要：Dual N-Channel, 20V, 6A, Power MOSFET The JTMD2178 is Dual N-Channel enhancement MOS Field Effect Transistor and connecting the Drains on the circuit board is not required because the Drains of the M

目录Uep嘉泰姆

1.产品概述 2.产品特点 3.应用范围 4.技术规格书下载（PDF文档）Uep嘉泰姆

5.产品封装 6.电路原理图 7.相关产品Uep嘉泰姆

一.产品概述Uep嘉泰姆

The JTMD2178 is Dual N-Channel enhancement MOS Field Effect Transistor and connecting the Drains on the circuit board is not required because the Drains of the MOSFET1 and the MOSFET2 are internally connected. Uses advanced trench technology and design to provide excellent RSS(ON) with low gate charge. This device is designed for Lithium-Ion battery protection circuit. The JTMD2178 is available in DFN2X2-4L package. Standard Product JTMD2178 is Pb-free and Halogen-free.Uep嘉泰姆

二.产品特点Uep嘉泰姆

 Trench TechnologyUep嘉泰姆

 Supper high density cell designUep嘉泰姆

 Excellent ON resistance for higher DC currentUep嘉泰姆

 Extremely Low Threshold VoltageUep嘉泰姆

 Small package DFN2X2-4LUep嘉泰姆

三.应用范围Uep嘉泰姆

 Lithium-Ion battery protection circuit Uep嘉泰姆

四.技术规格书（产品PDF)Uep嘉泰姆

需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！Uep嘉泰姆

Uep嘉泰姆

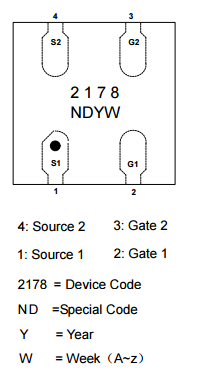

五.产品封装图Uep嘉泰姆

Uep嘉泰姆

六.电路原理图Uep嘉泰姆

Uep嘉泰姆

七.相关芯片选择指南Uep嘉泰姆

场效应晶体管
ProUep嘉泰姆 ductUep嘉泰姆	ConfigUep嘉泰姆 urationUep嘉泰姆	ChaUep嘉泰姆 nnelUep嘉泰姆	Drain-Source	Gate-Source	Gate Threshold	Drain-to-Source	Drain-to-Source	Input CapaUep嘉泰姆 citanceUep嘉泰姆	ConUep嘉泰姆 tinuousUep嘉泰姆	Power DissUep嘉泰姆 ipationUep嘉泰姆	Body Diode	Body Diode	PaUep嘉泰姆 ckageUep嘉泰姆
			VolUep嘉泰姆 tageUep嘉泰姆	VoUep嘉泰姆 ltageUep嘉泰姆	VoUep嘉泰姆 ltageUep嘉泰姆	On-ResisUep嘉泰姆 tanceUep嘉泰姆	On-ResisUep嘉泰姆 tanceUep嘉泰姆	C_ISS	Drain Current	P_D(@T_A = 25°C)	Forward Voltage	Forward VoUep嘉泰姆 ltageUep嘉泰姆
			V_DS	V_GS	V_GS(th)	R_DS(ON)@(V_GS = 4.5V)	R_DS(ON)@(V_GS = 4.5V)	(pF) (Typ.)	I_D (@T_A = 25°C)	(W) (Max.)	V_SD	V_SD
			(V) (Max.)	(V) (Max.)	(V) (Max.)	(Ω) (Typ.)	(Ω) (Max.)		(A) (Max.)		(V) (Typ.)	(V) (Max.)
JTPM9435A	P-Channel MOSFET	1	-30	±20	-3	0.043	0.066	1120	-5.4	1.9	-0.8	-1.5	SOP-8L
JTPMD2084	P-Channel MOSFET	2	-20	±10	-1	0.08	0.12	444	-3.3	2	-0.8	-1.5	DFN2020-6L
JTPM6207	P-Channel MOSFET	1	-20	±12	-1	0.025	0.03	2260	-5.7	1.2	-	-1.2	SOT-23-3
JTNM01N11	N-Channel MOSFET	1	110	±20	2.5	0.25	0.35	300	1.8	1.78	0.8	1.2	SOT-23-6L
JTMD2078	N-Channel MOSFET	2	20	±12	1	0.42	0.6	30	0.56	0.41	0.85	1.5	SOT-363
JTCR650N60TG	N-Channel MOSFET	1	600	±30	4.5	0.55	0.65	403	7.3	62.5		1.5	TO-252E-2
JTCR650N60TF	N-Channel MOSFET	1	600	±30	4.5	0.55	0.65	403	7.3	27.7		1.5	TO-220F
JTCR470N60TF	N-Channel MOSFET	1	600	±30	4.5	0.42	0.47	547	9.4	29.8		1.5	TO-220F
JTCR380N60TG	N-Channel MOSFET	1	600	±30	4.5	0.36	0.38	656	10.6	83		1.5	TO-252E-2
JTCR380N60TF	N-Channel MOSFET	1	600	±30	4.5	0.36	0.38	656	10.6	31.2		1.5	TO-220F
JTNMD2178	N-Channel MOSFET	2	20	±12	1	0.012	0.016	1240	6	-	-	1.5	DFN2020-4L
JTNM01N10	N-Channel MOSFET	1	100	±20	2.5	0.255	0.35	350	1.7	1.6	0.8	1.2	SOT-23
JTMD2076	N-Channel MOSFET	2	-20	±12	-1	0.071	0.09	471	-4.62	1.92	-0. 76	-1.2	SOP-8L
JTMD2180	N-Channel MOSFET	2	20	±10	1	0.0095	0.014	1188	11	1.7	0.75	1.5	PDFN3×3-8L
JTNM2077	N-Channel MOSFET	1	20	±10	1	0.42	0.6	30	0.54	0.36	0.85	1.5	SOT-723
JTNM3019	N-Channel MOSFET	1	30	±20	1.5	1.3	4	36	0.25	0.37	0.8	1.5	SOT-523
JTPM2049B	P-Channel MOSFET	1	-20	±5	-0.85	0.44	0.7	74.5	-0.51	0.31	-0.65	-1.1	DFN1006-3L
JTPM2049	P-Channel MOSFET	1	-20	±5	-0.85	-	0.85	74.5	-0.51	0.31	-	-1.5	DFN1006-3L
JTNM07N65F	N-Channel MOSFET	1	650	±30	5	1	1.2	930	7	34	0.74	1.5	TO-220F
JTNM2072	N-Channel MOSFET	1	20	±5	0.85	0.22	0.42	50.6	0.66	0.27	0.7	1.1	DFN1006-3L
JTNM2046B	N-Channel MOSFET	1	20	±5	0.85	0.22	0.42	50.6	0.71	0.32	0.7	1.1	DFN1006-3L
JTCM2068	N + P channel MOSFET	2	20/-20	±8	1/-1	0.033/0.085	0.046/0.116	345/531	4.4/-2.8	0.72	0.7/-0.8	1.5/-1.5	SOT-23-6L
JTNM12N65	N-Channel MOSFET	1	650	±30	5	0.57	0.7	1670	12	192	0.7	1.5	TO-220
JTNM07N60	N-Channel MOSFET	1	600	±30	5	1	1.2	930	7	156	0.74	1.5	TO-220
JTNM6002	N-Channel MOSFET	1	60	±20	2	1.7	2.6	23.37	0.3	0.37	0.9	1.5	SOT-323
JTPM3005	P-Channel MOSFET	1	-30	±20	-2.5	0.083	0.09	670	-4.1	1.4	-0.78	-1.5	SOT-23-3L
JTNM3017	N-Channel MOSFET	1	30	±20	1.5	0.021	0.033	834	6.2	1.4	0.85	1.5	DFN2X2-6L
JTMD2176	N-Channel MOSFET	2	20	±10	1	0.055	0.09	190	2.6	0.9	-	1.5	SOT-23-6L
JTCM2007	N + P channel MOSFET	2	20/-20	±6	0.9/-0.9	0.18/0.45	0.31/0.81	90/65.8	0.79/-0.5	0.29	0.74/-0.8	1.5/-1.5	SOT-563
JTCM2002	N + P channel MOSFET	2	20/-20	±6	0.9/-0.9	0.23/0.52	0.31/0.81	50/74.5	0.8/-0.59	0.31/0.29	0.7/-0.65	1.5/-1.5	SOT-363
JTCM2001	N + P channel MOSFET	2	20/-20	±6/±8	0.85/-1.0	0.18/0.085	0.31/0.12	50/470	0.65/-3.1	1.5	0.5/-0.5	0.7/-0.7	DFN2 x 2-6L
JTMD3002	P-Channel MOSFET	2	-30	±20	-2.5	0.07	0.09	670	-3.8	1.1	-0.78	-1.5	SOP-8L
JTMD2013	P-Channel MOSFET	2	-20	±6	-0.9	0.55	0.81	74.5	-0.56	0.29	-0.65	-1.5	SOT-563
JTMD2010	P-Channel MOSFET	2	-20	±12	-1	0.075	0.12	470	-3.1	1.5	-0.85	-1.5	DFN 6
JTPM9435	P-Channel MOSFET	1	-30	±20	-3	0.053	0.066	710	-5.5	2	-0.79	-1.5	SOP-8P
JTPM5001	P-Channel MOSFET	1	-50	±20	-2	3.5	10	66.7	-0.2	0.4	-0.9	-1.5	SOT-23
JTPM4803	P-Channel MOSFET	2	-30	±20	-3	0.053	0.066	680	-5.5	2	-0.79	-1.5	SOP-8P
JTPM4801	P-Channel MOSFET	2	-30	±12	-1.4	0.045	0.06	560	-5.6	2	-0.75	-1.5	SOP-8P
JTPM3407	P-Channel MOSFET	1	-30	±20	-3	0.053	0.066	950	-3.7	1	-0.79	-1.5	SOT-23-3
JTPM3401	P-Channel MOSFET	1	-30	±12	-1.5	0.043	0.056	1250	-4.6	1.3	-0.75	-1.5	SOT-23-3L
JTPM3012	P-Channel MOSFET	1	-30	±20	-2.5	0.08	0.095	654	-2.9	0.8	-0.8	-1.5	SOT-23
JTPM3004	P-Channel MOSFET	1	-30	±20	-2.5	0.079	0.09	670	-3.8	1.2	-0.78	-1.5	SOP-8L
JTPM2341A	P-Channel MOSFET	1	-20	±12	-1	0.052	0.061	700	-3.5	0.75	-0.8	-	SOT23-3
JTPM2341	P-Channel MOSFET	1	-20	±8	-1	0.052	0.061	700	-3.5	0.75	-0.8	-	SOT23-3
JTPM2065	P-Channel MOSFET	1	-20	±8	-1	0.017	0.024	2026	-6.2	1.4	-0.8	-1.5	DFN 2X2-6L
JTPM2048	P-Channel MOSFET	1	-20	±12	-1	0.096	0.135	331	-2.2	0.7	-0.79	-1.5	SOT-23
JTPM2031	P-Channel MOSFET	1	-20	±5	-0.81	0.495	0.853	74.5	-0.6	0.36	-0.75	-1.5	SOT-723
JTPM2026	P-Channel MOSFET	1	-20	±12	-1	0.056	0.065	1130	-2.9	0.8	-0.62	-1.5	SOT-23
JTPM2019	P-Channel MOSFET	1	-20	±5	-0.9	0.48	0.81	74.5	-0.62	0.28	-0.65	-1.5	SOT-523
JTPM2015	P-Channel MOSFET	1	-20	±8	-0.81	0.081	0.11	534	-2.2	0.8	-0.74	-1.5	SOT-23
JTPM2014	P-Channel MOSFET	1	-20	±8	-0.9	0.05	0.06	1200	-4.1	1.4	-0.74	-1.5	DFN2 x 2-6L
JTPM2006	P-Channel MOSFET + Schottky Diode	1	-20	±8	-1	0.09	0.12	480	-3	1.45	-0.07	-1.5	DFN2x2-6L
JTPM2005B	P-Channel MOSFET + Schottky Diode	1	-20	±8	-0.81	-	0.12	300	-2.7	1.1	-	-1.5	DFN3X2-8L
JTPM2005	P-Channel MOSFET + Schottky Diode	1	-20	±8	-0.81	-	0.12	700	-2.9	1.4	-	-1.5	DFN3X2-8L
JTPM1488	P-Channel MOSFET	1	-12	±8	-0.85	0.08	0.12	607	-1.5	0.44	-0.8	-1.5	SOT-323
JTPM1485	P-Channel MOSFET	1	-12	±8	-0.95	0.015	0.019	2620	-7.4	1.8	-0.88	-1.5	DFN2X2-6L
JTPM1483	P-Channel MOSFET	1	-12	±8	-0.85	0.031	0.037	1152	-3.5	0.74	-0.8	-1.5	SOT-23
JTPM1481	P-Channel MOSFET	1	-12	±12	-0.9	0.022	0.026	1880	-5.1	1.9	-0.76	-1.5	DFN2X2-6L
JTPM1480	P-Channel MOSFET	1	-20	±8	-1	0.11	0.255	480	-1.4	0.29	-0.79	-1.5	SOT-323
JTMD6003	N-Channel MOSFET	2	60	±20	2	1.7	2.6	23.37	0.3	0.37	0.9	1.5	SOT-563
JTMD3014	N-Channel MOSFET	2	30	±20	2.2	0.033	0.041	580	6.8	1.9	0.95	1.5	SOP-8L
JTMD2179	N-Channel MOSFET	2	20	±10	1	0.0175	0.021	800	6.3	1.1	0.75	1.5	TSOT-23-6L
JTNMD2174	N-Channel MOSFET	2	12	±10	1.2	0.019	0.025	1313	6	-	0.9	1.5	CSP 4L
JTNMD2173	N-Channel MOSFET	2	20	±12	1	0.026	0.031	1240	6	-	-	1.5	CSP 4L
JTMD2172	N-Channel MOSFET	2	20	±10	1	0.015	0.02	1371	7	1.4	0.65	1.5	TSSOP-8L
JTMD2171	N-Channel MOSFET	2	20	±12	1	0.036	0.045	1210	6	-	-	1.5	CSP 4L
JTMD2168	N-Channel MOSFET	2	20	±10	1	0.022	0.028	680	5.1	1.1	0.78	1.5	TSSOP-8
JTMD2166	N-Channel MOSFET	2	20	±10	1	0.022	0.027	680	5	1.1	0.78	1.5	SOT-23-6L
JTMD2165	N-Channel MOSFET	2	60	±20	2	1.7	2.6	23.37	0.32	0.41	0.9	1.5	SOT-363
JTMD2162	N-Channel MOSFET	2	20	±10	1	0.016	0.022	1371	4.8	1.7	0.65	1.5	PDFN2.9X2.8-8L
JTMD2160	N-Channel Mosfet	2	20	±10	1	0.0157	0.021	800	6.3	1.1	0.65	1.5	SOT-23-6L
JTMD2158	N-Channel MOSFET	2	20	±10	1	0.0148	0.019	800	7	1.4	0.65	1.5	TSSOP-8L
JTMD2154	N-Channel MOSFET	2	20	±6	0.85	0.22	0.31	60	0.88	0.37	0.7	1.5	SOT-563
JTMD2153	N-Channel Mosfet	2	20	±6	0.85	0.22	0.31	50	0.89	0.38	0.7	1.5	SOT-363
JTNM6001	N-Channel MOSFET	1	60	±20	2	1.7	2.6	23.37	0.5	0.69	0.9	1.5	SOT-23
JTNM4153	N-Channel MOSFET	1	20	±6	1	0.22	0.31	68	0.88	0.37	0.7	1.5	SOT-523
JTNM4006	N-Channel MOSFET	1	45	±20	1.5	0.142	0.18	315	1.7	0.8	0.8	1.5	SOT-23
JTNM4002	N-Channel MOSFET	1	20	±6	1	1.65	2	72	0.6	0.25	-	-	SOT-523
JTNM4001	N-Channel MOSFET	1	20	±6	1	0.41	0.7	67	0.8	0.25	-	-	SOT-523
JTNM3013	N-Channel MOSFET	1	30	±20	1.5	1.3	4	36	0.27	0.44	0.8	1.5	SOT-723
JTNM3011	N-Channel MOSFET	1	30	±20	3	0.039	0.059	570	5.7	1.5	0.84	1.5	SOT-23-6L
JTNM3008	N-Channel MOSFET	1	30	±20	2	0.057	0.077	265	3.1	0.8	0.8	1.5	SOT-23
JTNM3003	N-Channel MOSFET	1	30	±20	3	0.043	0.059	570	4	0.8	0.84	1.5	SOT-23
JTNM2046	N-Channel MOSFET	1	20	±5	0.85	0.22	0.42	50.6	0.71	0.32	0.7	1.1	DFN1006-3L
JTNM2030	N-Channel MOSFET	1	20	±6	1	0.21	0.31	50	0.95	0.43	0.7	1.5	SOT-723
JTNM2024	N-Channel MOSFET	1	20	±8	1	0.027	0.036	1025	3.9	0.8	0.6	1.5	SOT-23
JTNM2021	N-Channel MOSFET	1	20	±6	0.85	0.22	0.31	50	0.89	0.37	0.7	1.5	SOT-323
JTNM2020	N-Channel MOSFET	1	20	±6	0.85	0.22	0.31	50	0.9	0.38	0.7	1.5	SOT-23
JTNM2016	N-Channel MOSFET	1	20	±8	1	0.04	0.047	500	3.2	0.8	0.62	1.5	SOT-23
JTNM12N65F	N-Channel MOSFET	1	650	±30	5	0.57	0.7	1670	12	39	0.7	1.5	TO-220F
JTNM07N65	N-Channel MOSFET	1	650	±30	5	1.05	1.05	930	7	156	0.74	1.5	TO-220
JTNM07N60F	N-Channel MOSFET	1	600	±30	5	1	1.2	930	7	34	0.74	1.5	TO-220F
