JTBM78XX regulators employ internal current-limiting and thermal-shutdown, making them essentially indestructible. They can deliver up to 1000mA output JTBM7805 can continuously output 1.0A when +8V

                          目录qRk嘉泰姆

   1.产品概述      2.产品特点      3.应用范围     4.技术规格书下载（PDF文档）</span>qRk嘉泰姆

   5.产品封装      6.电路原理图</strong>     7.相关产品qRk嘉泰姆

一.产品概述qRk嘉泰姆

  JTBM78XX regulators employ internal current-limiting and thermal-shutdown, making them essentially indestructible. They can deliver up to 1000mA output JTBM7805 can continuously output 1.0A when +8V input JTBM7805 TO220 and TO263 can output 0.8A when +12V inputqRk嘉泰姆

二.产品特点qRk嘉泰姆

 z Maximum Output Current of >1000mA (Tc=25°C)qRk嘉泰姆

 z Internal Short-Circuit Current LimitingqRk嘉泰姆

 z Internal Thermal Overload ProtectionqRk嘉泰姆

 z 3% Output ToleranceqRk嘉泰姆

 z TO252,TO263,TO220 PackageqRk嘉泰姆

三.应用范围qRk嘉泰姆

 z LCD-TV tunerqRk嘉泰姆

 z Car electronics    qRk嘉泰姆

四.技术规格书（产品PDF)qRk嘉泰姆

需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持</span>！</span>qRk嘉泰姆

 qRk嘉泰姆

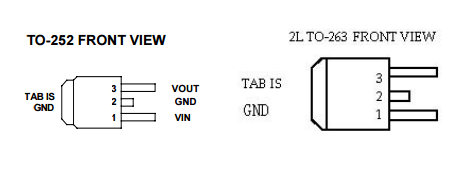

五.产品封装图</span>qRk嘉泰姆

  qRk嘉泰姆

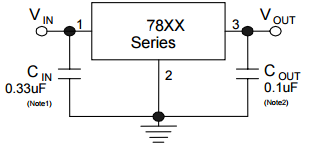

六.电路原理图</strong>qRk嘉泰姆

   qRk嘉泰姆

七.相关芯片选择指南qRk嘉泰姆
