CXLB7296 is a switching Li-Ion battery charger capable of delivering up to 3A of charging current to the battery and also capable of delivering up to 2.4A in boost OTG operation. It employs a charge p

   产品概述 返回TOPRfc嘉泰姆

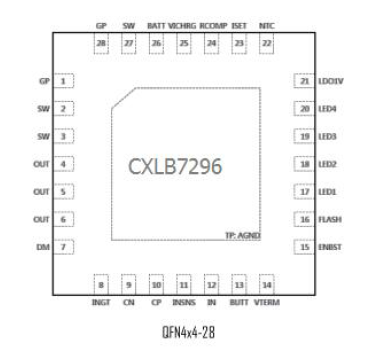

   CXLB7296 is a switching Li-Ion battery charger capable of delivering up to 3A of charging current to the battery and also capable of delivering up to 2.4A in boost OTG operation. It employs a charge pump to achieve a very fast input OVP, and also includes an externally programmable fuel gauge system for power indication. For charging, it uses a proprietary control scheme that eliminates the current sense resistor for constant current control, thereby improving efficiency and reducing costs. It can also output a 5V voltage in the reversed direction by boosting from the battery. Therefore, it only needs a single inductor to provide power bi-directionally. Together with the build-in Micro-controller functions, such as push-button, auto load detection, and fuel gauging features,CXLB7296 is truly an ideal all-in-one solution for battery charging and discharge applications, such as power banks,smart phones, and tablets with only one USB port that can be used for both charging battery and USB OTG function.CXLB7296 is in QFN4x4-28 package.Rfc嘉泰姆

   产品特点 返回TOPRfc嘉泰姆

Rfc嘉泰姆

Bi-Directional Power conversion with Single InductorRfc嘉泰姆

Input OVP with 0.1us reaction timeRfc嘉泰姆

Input standoff voltage up to 20VRfc嘉泰姆

Switching ChargerRfc嘉泰姆

5V Synchronous BoostRfc嘉泰姆

Up to 95% EfficiencyRfc嘉泰姆

Up to 3A Max charging current and 2.4A dischargingRfc嘉泰姆

Automatic plug-in detectionRfc嘉泰姆

NTC thermistor inputRfc嘉泰姆

   应用范围 返回TOPRfc嘉泰姆

Rfc嘉泰姆

Power BankRfc嘉泰姆

Smart Phone / Tablet, MIDRfc嘉泰姆

   技术规格书（产品PDF) 返回TOP Rfc嘉泰姆

     需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持</span>！</span>
