Complementary Output Hall Effect Latch CXMD3281 The device includes an on-chip Hall voltage, a Schmitt trigger to provide switching hysteresis for noise rejection, a temperature compensation circuit

   产品概述 jdM嘉泰姆

The device includes an on-chip Hall voltage, a Schmitt trigger to provide switching hysteresis for noise rejection, a temperature compensation circuit to compensate the temperature drift of Hall sensitivity and two complementary open-collector drivers for sinking large load current. It also includes an internal band-gap regulator which is used to provide bias voltage for internal circuits. Placing the device in a variable magnetic field, if the magnetic flux density is larger than threshold BOP, the pin DO will be turned low (on) and pin DOB will be turned high (off). This output state is held until the magnetic flux density reverses and falls below BRP, then causes DO to be turned high (off) and DOB turned low(on). CXMD3281 is available in TO-94(SIP-4L) package.The CXMD3281 is an integrated Hall sensor with output driver designed for electronic commutation of brush-less DC motor applications.

   产品特点 jdM嘉泰姆

 On-Chip Hall Sensor jdM嘉泰姆

 3.5V to 20V Supply Voltage jdM嘉泰姆

 300mA (avg) Output Sink Current jdM嘉泰姆

 Reversed Supply Voltage Protection jdM嘉泰姆

 -20℃ to 85℃ Operating Temperature jdM嘉泰姆

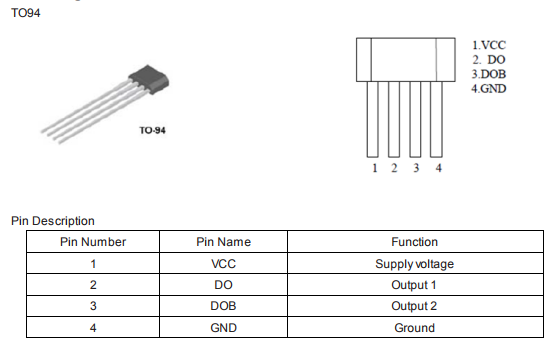

 Low Profile TO-94 (SIP-4L) Package jdM嘉泰姆

 High ESD RatingjdM嘉泰姆

   应用范围 jdM嘉泰姆

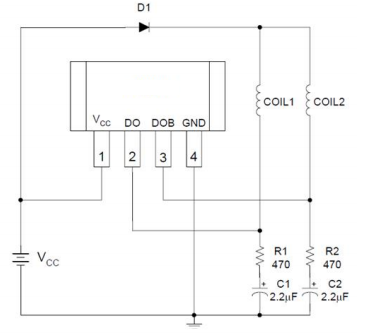

 Dual-Coil Brush-less DC Motor jdM嘉泰姆

 Dual-Coil Brush-less DC Fan jdM嘉泰姆

 Revolution counting jdM嘉泰姆

 Speed measurementjdM嘉泰姆

   技术规格书（产品PDF)  jdM嘉泰姆

     需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！jdM嘉泰姆
