Single Rail-to-Rail Operational Amplifiers CXAS42241 CXAS42242 CXAS42243 is a single rail-to-rail input/output operation amplifier with the low power, high voltage swing. Operating on supplies ranging

   产品概述 返回TOP11p嘉泰姆

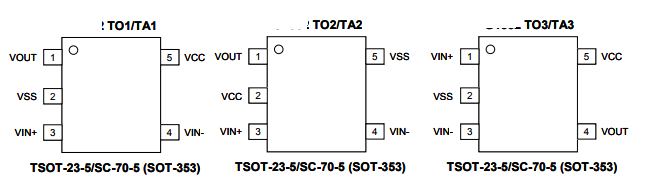

The CXAS42241 CXAS42242 CXAS42243 is a single rail-to-rail input/output operation amplifier with the low power, high voltage swing. Operating on supplies ranging from 4.5V to 20V, while current consuming only 3mA, the CXAS42241 CXAS42242 CXAS42243 is with high unit-gain bandwidth of 30MHz. The CXAS42241 CXAS42242 CXAS42243 also provides common mode input ability beyond the supply rails, as well as rail-to-rail output capability. This enables this amplifier to offer maximum dynamic range at any supply voltage. The CXAS42241 CXAS42242 CXAS42243 also features fast slewing and settling times, as well as a high output drive capability of 65mA (sink and source). These features make these amplifiers ideal for high speed filtering and signal conditioning application. Other applications include battery power, TFT Vcom /Gamma buffers, portable devices, and anywhere low power consumption is important. There are over temperature and short-circuit current limit protection embedded to avoid the unexpected damages. The CXAS42241 CXAS42242 CXAS42243 is available in TSOT-23-5 and SC-70-5 (SOT-353) package.

   产品特点 返回TOP11p嘉泰姆

„ Wide Supply Operation Range +4.5V to +20V 11p嘉泰姆

„ Beyond the Rails Input Capability 11p嘉泰姆

„ Rail-to-Rail Output Swing 11p嘉泰姆

„ Low Supply Current, 3mA (Typical) 11p嘉泰姆

„ Low Input Offset Voltage 2mV (Typical) 11p嘉泰姆

„ Internal Frequency Compensated for Unit Gain Stable 11p嘉泰姆

„ Wide Bandwidth (unit gain) 30MHz 11p嘉泰姆

„ High Slew Rate =150V/μs 11p嘉泰姆

„ Large DC Voltage Gain 80dB (Typical) 11p嘉泰姆

„ ±180mA Output Short Current 11p嘉泰姆

„ Embedded Over-Temperature Protection 11p嘉泰姆

„ Short-Circuit Current Limit Protection 11p嘉泰姆

„ TSOT-23-5 and SC-70-5 (SOT-353) Package Available11p嘉泰姆

   应用范围 返回TOP11p嘉泰姆

„ Portable Equipment 11p嘉泰姆

„ TFT Vcom/Gamma buffers 11p嘉泰姆

„ Battery-Powered Equipment 11p嘉泰姆

„ ASIC Input or Output Amplifier 11p嘉泰姆

„ Low Power/Low Voltage Applications11p嘉泰姆

   技术规格书（产品PDF) 返回TOP 11p嘉泰姆

     需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持</span>！</span>
