产品概述 返回TOPynh嘉泰姆
CX24211 applied to smart of phone the camera. It can control voice coil motor and it can sink
100mA current of 10 bit DAC component.
CX24211 contains power on reset (POR), power down (PD), fast smart mode (FSC). The POR can
allow sink pin to output 0V after power on. When user closed the camera, The PD could down power
consumption until 1uA. The lens of camera would produce to damping vibration during the autofocusing.
The vibration can affect that the lens move to clear of position. Using FSC mode can reduce
damping vibration. FSC make lens to fast of stabilize.
产品特点 返回TOPynh嘉泰姆
IC of ID ：00010100. ynh嘉泰姆
Power on reset (POR) ynh嘉泰姆
Power down（PD） ynh嘉泰姆
Direct mode control ynh嘉泰姆
Fast Smart control（FSC） ynh嘉泰姆
ｏ FSC1 ynh嘉泰姆
ｏ FSC2 ynh嘉泰姆
ｏ FSC3 ynh嘉泰姆
10bit resolution for 100mA currentynh嘉泰姆
Voltage rang (VDD) ynh嘉泰姆
ｏ Supply to ：2.3V to 4.2V ynh嘉泰姆
ｏ I
2C interface ： 1.8V or 3.3V ynh嘉泰姆
Interface ynh嘉泰姆
ｏ I
2C Serial Communication Rate
400KHZ ynh嘉泰姆
ｏ I
2C write address：0x18 ynh嘉泰姆
ｏ I
2C read address：0x19 ynh嘉泰姆
Packaging: ynh嘉泰姆
ｏ WLCSP , 1.14*0.73mynh嘉泰姆
应用范围 返回TOPynh嘉泰姆
aynh嘉泰姆
技术规格书（产品PDF) 返回TOP ynh嘉泰姆
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持</span>！</span>
ynh嘉泰姆
ynh嘉泰姆

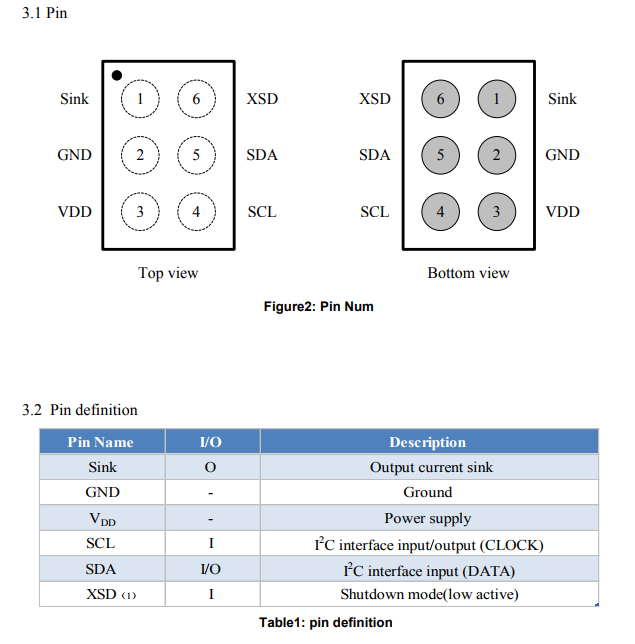

产品封装图 返回TOPynh嘉泰姆
ynh嘉泰姆
电路原理图 返回TOPynh嘉泰姆
ynh嘉泰姆
ynh嘉泰姆
ynh嘉泰姆
串行存储器 (Serial EEPROM )ynh嘉泰姆 |
Part No.ynh嘉泰姆 | Capacityynh嘉泰姆 | Interfaceynh嘉泰姆 | VDDynh嘉泰姆 | Packageynh嘉泰姆 |
CX24C02ynh嘉泰姆 | 2K bitsynh嘉泰姆 | Two-wire Serialynh嘉泰姆 | 1.7~5.5Vynh嘉泰姆 | DIP8 SOP8 TSSOP8 DFN8ynh嘉泰姆 |
CX24C04ynh嘉泰姆 | 4K bitsynh嘉泰姆 | Two-wire Serialynh嘉泰姆 | 1.7~5.5Vynh嘉泰姆 | DIP8 SOP8 TSSOP8 DFN8ynh嘉泰姆 |
CX24C08ynh嘉泰姆 | 8K bitsynh嘉泰姆 | Two-wire Serialynh嘉泰姆 | 1.7~5.5Vynh嘉泰姆 | DIP8 SOP8 TSSOP8 DFN8ynh嘉泰姆 |
CX24C16ynh嘉泰姆 | 16K bitsynh嘉泰姆 | Two-wire Serialynh嘉泰姆 | 1.7~5.5Vynh嘉泰姆 | DIP8 SOP8 TSSOP8 DFN8ynh嘉泰姆 |
CX24C32Aynh嘉泰姆 | 32K bitsynh嘉泰姆 | Two-wire Serialynh嘉泰姆 | 1.7~5.5Vynh嘉泰姆 | DIP8 SOP8 TSSOP8 UDFN8 WCSP4ynh嘉泰姆 |
CX24C32Bynh嘉泰姆 | 32K bitsynh嘉泰姆 | Two-wire Serialynh嘉泰姆 | 1.7~5.5Vynh嘉泰姆 | DIP8 SOP8 TSSOP8 UDFN8 WCSP4ynh嘉泰姆 |
CX24C64Aynh嘉泰姆 | 64K bitsynh嘉泰姆 | Two-wire Serialynh嘉泰姆 | 1.7~5.5Vynh嘉泰姆 | DIP8 SOP8 TSSOP8 UDFN8 WCSP4ynh嘉泰姆 |
CX24C64Bynh嘉泰姆 | 64K bitsynh嘉泰姆 | Two-wire Serialynh嘉泰姆 | 1.7~5.5Vynh嘉泰姆 | DIP8 SOP8 TSSOP8 UDFN8 WCSP4ynh嘉泰姆 |
CX24C128Aynh嘉泰姆 | 128K bitsynh嘉泰姆 | Two-wire Serialynh嘉泰姆 | 1.7~5.5Vynh嘉泰姆 | DIP8 SOP8 TSSOP8 UDFN8 WCSP4ynh嘉泰姆 |
CX24C128Bynh嘉泰姆 | 128K bitsynh嘉泰姆 | Two-wire Serialynh嘉泰姆 | 1.7~5.5Vynh嘉泰姆 | DIP8 SOP8 TSSOP8 UDFN8 WCSP4ynh嘉泰姆 |
CX24C256ynh嘉泰姆 | 256K bitsynh嘉泰姆 | Two-wire Serialynh嘉泰姆 | 1.7~5.5Vynh嘉泰姆 | DIP8 SOP8 TSSOP8ynh嘉泰姆 |
CX24C512ynh嘉泰姆 | 512K bitsynh嘉泰姆 | Two-wire Serialynh嘉泰姆 | 1.7~5.5Vynh嘉泰姆 | SOP8 TSSOP8 DFN8ynh嘉泰姆 |
CX24211ynh嘉泰姆 | NAK bitsynh嘉泰姆 | I2Cynh嘉泰姆 | 12.3~4.Vynh嘉泰姆 | WLCSP6ynh嘉泰姆 |
| CX24C512G | 513K bitsynh嘉泰姆 | Two-wire Serialynh嘉泰姆 | 1.7~5.6Vynh嘉泰姆 | SOP8 TSSOP8 DFN9ynh嘉泰姆 |
