产品概述 返回TOPWSf嘉泰姆
The CXSD6132H CXSD6132S is a fully integrated, high-efficiency 2A synchronous rectified step-down converter. The CXSD6132H CXSD6132S operates at high efficiency over a wide output current load range. This device offers two operation modes, PWM control and PFM Mode switching control, which allows a high efficiency over the wider range of the load. The CXSD6132H CXSD6132S requires a minimum number of readily available standard external components and is available in a 6-pin SOT23 ROHS compliant package.
产品特点 返回TOPWSf嘉泰姆
High Efficiency: Up to 96% WSf嘉泰姆
500KHz Frequency Operation WSf嘉泰姆
2A Output Current WSf嘉泰姆
No Schottky Diode Required WSf嘉泰姆
4.5V to 16V Input Voltage Range WSf嘉泰姆
0.6V Reference WSf嘉泰姆
Slope Compensated Current Mode Control for
Excellent Line and Load Transient Response WSf嘉泰姆
Integrated internal compensation WSf嘉泰姆
Stable with Low ESR Ceramic Output Capacitors WSf嘉泰姆
Over Current Protection with Hiccup-Mode WSf嘉泰姆
Thermal Shutdown WSf嘉泰姆
Inrush Current Limit and Soft Start WSf嘉泰姆
Available in SOT23-6 WSf嘉泰姆
-40°C to +85°C Temperature RangeWSf嘉泰姆
应用范围 返回TOPWSf嘉泰姆
Distributed Power Systems WSf嘉泰姆
Digital Set Top Boxes WSf嘉泰姆
Flat Panel Television and Monitors WSf嘉泰姆
Wireless and DSL Modems WSf嘉泰姆
Notebook ComputerWSf嘉泰姆
技术规格书（产品PDF) 返回TOP WSf嘉泰姆
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持</span>！</span>
WSf嘉泰姆
WSf嘉泰姆

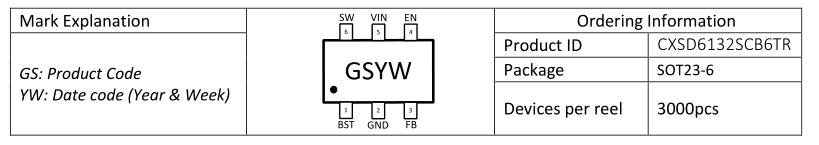

产品封装图 返回TOPWSf嘉泰姆
WSf嘉泰姆
电路原理图 返回TOPWSf嘉泰姆
WSf嘉泰姆
WSf嘉泰姆
WSf嘉泰姆
降压型DC/DC转换器(DC/DC Step-down Converter)WSf嘉泰姆 |
Part No.WSf嘉泰姆 | Power switchingWSf嘉泰姆 | MODEWSf嘉泰姆 | VINWSf嘉泰姆 | VOUTWSf嘉泰姆 | IQWSf嘉泰姆 | FOSCWSf嘉泰姆 | Eff.WSf嘉泰姆 | Max. Duty CycleWSf嘉泰姆 | Accu.WSf嘉泰姆 | IOUTWSf嘉泰姆 | PackageWSf嘉泰姆 |
CXSD61067WSf嘉泰姆 | Built-in MOSFET SynchronousWSf嘉泰姆 | PWM/PFMWSf嘉泰姆 | 2.6~6VWSf嘉泰姆 | ADJVWSf嘉泰姆 | 80μAWSf嘉泰姆 | 2MHzWSf嘉泰姆 | 97%WSf嘉泰姆 | 100%WSf嘉泰姆 | ±2%WSf嘉泰姆 | 1500mAWSf嘉泰姆 | DFN2x2-6WSf嘉泰姆 SOT23-5WSf嘉泰姆 |
CXSD6132WSf嘉泰姆 | Built-in MOSFET SynchronousWSf嘉泰姆 | PWM/PFMWSf嘉泰姆 | 4.2~18VWSf嘉泰姆 | ADJVWSf嘉泰姆 | 0.5mAWSf嘉泰姆 | 500KHzWSf嘉泰姆 | 96%WSf嘉泰姆 | 92%WSf嘉泰姆 | ±2%WSf嘉泰姆 | 2000mAWSf嘉泰姆 | SOT23-6WSf嘉泰姆 |
CXSD6132HWSf嘉泰姆 | Built-in MOSFET SynchronousWSf嘉泰姆 | PWM/PFMWSf嘉泰姆 | 4.2~18VWSf嘉泰姆 | ADJVWSf嘉泰姆 | 0.5mAWSf嘉泰姆 | 1000KHzWSf嘉泰姆 | 96%WSf嘉泰姆 | 92%WSf嘉泰姆 | ±2%WSf嘉泰姆 | 2000mAWSf嘉泰姆 | SOT23-6WSf嘉泰姆 |
CXSD6132SWSf嘉泰姆 | Built-in MOSFET SynchronousWSf嘉泰姆 | PWM/PFMWSf嘉泰姆 | 4.5~16VWSf嘉泰姆 | ADJVWSf嘉泰姆 | 0.5mAWSf嘉泰姆 | 500KHzWSf嘉泰姆 | 96%WSf嘉泰姆 | 95%WSf嘉泰姆 | ±2%WSf嘉泰姆 | 2000mAWSf嘉泰姆 | SOT23-6WSf嘉泰姆 |
CXSD61068WSf嘉泰姆 | Built-in MOSFET SynchronousWSf嘉泰姆 | PWM/PFMWSf嘉泰姆 | 4.2~16VWSf嘉泰姆 | ADJVWSf嘉泰姆 | 0.5mAWSf嘉泰姆 | 500KHzWSf嘉泰姆 | 96%WSf嘉泰姆 | 92%WSf嘉泰姆 | ±2%WSf嘉泰姆 | 3000mAWSf嘉泰姆 | SOT23-6WSf嘉泰姆 |
CXSD61069WSf嘉泰姆 | Built-in MOSFET SynchronousWSf嘉泰姆 | PWM/PFMWSf嘉泰姆 | 4.2~16VWSf嘉泰姆 | ADJVWSf嘉泰姆 | 0.5mAWSf嘉泰姆 | 500KHzWSf嘉泰姆 | 95%WSf嘉泰姆 | 92%WSf嘉泰姆 | ±2%WSf嘉泰姆 | 4000mAWSf嘉泰姆 | ESOP-8LWSf嘉泰姆 |
CXSD61070WSf嘉泰姆 | Built-in MOSFET SynchronousWSf嘉泰姆 | PWMWSf嘉泰姆 | 4.2~18VWSf嘉泰姆 | ADJVWSf嘉泰姆 | 0.5mAWSf嘉泰姆 | 500KHzWSf嘉泰姆 | 96%WSf嘉泰姆 | 92%WSf嘉泰姆 | ±2%WSf嘉泰姆 | 2000mAWSf嘉泰姆 | SOT23-6WSf嘉泰姆 |
CXSD6127WSf嘉泰姆 | Built-in MOSFET SynchronousWSf嘉泰姆 | PWM/PFMWSf嘉泰姆 | 2.5~5.5VWSf嘉泰姆 | ADJVWSf嘉泰姆 | 50μAWSf嘉泰姆 | 1.3MHzWSf嘉泰姆 | 97%WSf嘉泰姆 |
| ±2.5%WSf嘉泰姆 | 2000mAWSf嘉泰姆 | SOT236WSf嘉泰姆 SOT23-5WSf嘉泰姆 |
CXSD6129WSf嘉泰姆 | Built-in MOSFET SynchronousWSf嘉泰姆 | PWM/PFMWSf嘉泰姆 | 2.6~5.5VWSf嘉泰姆 | ADJVWSf嘉泰姆 | 50μAWSf嘉泰姆 | 1.4MHzWSf嘉泰姆 | 97%WSf嘉泰姆 |
| ±2.5%WSf嘉泰姆 | 3000mAWSf嘉泰姆 | ESOP8WSf嘉泰姆 |
CXSD61071WSf嘉泰姆 | Built-in MOSFETWSf嘉泰姆 | PWM/PFMWSf嘉泰姆 | 4.5~45VWSf嘉泰姆 | ADJVWSf嘉泰姆 | 0.69mAWSf嘉泰姆 | 1.6MHzWSf嘉泰姆 | 95%WSf嘉泰姆 | 87%WSf嘉泰姆 | ±2%WSf嘉泰姆 | 0.6AWSf嘉泰姆 | SOT23WSf嘉泰姆 |
