EnglishJTMB8503 series group of positive voltage output, low power consumption, low dropout voltage, three terminal regulator. It can provide 250mA output current when input / output voltage differentia
一,
产品概述(General Description)
JTMB8503 series is a group of positive voltage output, low power consumption, low
dropout voltage, three terminal regulator. It can provide 250mA output current when
input / output voltage differential drops to 400mV（</span>Vin =4.0V、</span>Vout=3.0V）。</span>The
very low power consumption of JTMB8503 （</span>Iq=3.0uA）</span>can greatly improve natural life
of batteries.
JTMB8503 can provide output value in the range of 1.2V~6.0V in 0.1V steps. It also can
customized on command.
JTMB8503 includes high accuracy voltage reference, error amplifier, current limit circuit
and output driver module.
JTMB8503 has well load transient response and good temperature characteristic, which
can assure the stability of chip and power system. And it uses trimming technique to
guarantee output voltage accuracy within±2%.
JTMB8503 is available in SOT-89-3、</span>SOT-23-3,TO-92 packages which is lead free，</span>it
also can available in these packages with lead.
二</span>.产品特点(Features)
Low Power Consumption：</span>3.0uA（</span>Typ.）</span>
Maximum Output Current：</span> 250mA
Small Dropout Voltage：</span>
·170mV@100mA (Vout=3.0V)
· 400mV@250mA (Vout=3.0V)
· Input Voltage Range：</span>1.5V～</span>10V
· Output Voltage Range：</span>1.2V~6.0V
（</span>customized on command in 0.1V steps）</span>
Highly Accurate：</span>±2%(±1% customized）</span>
Output Current Limit
三</span>,应用范围 (Applications)
· Battery Powered equipment
· Power Management of MP3、</span>PDA、</span>DSC、</span>Mouse、</span>PS2 Games
· Reference Voltage Source
· Regulation after Switching Power
四.技术规格书下载（产品PDF）</span>

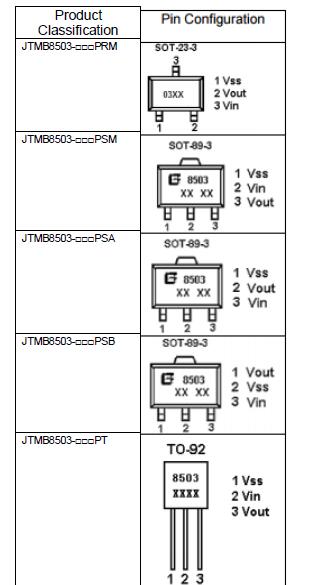

五,产品封装图 (Package)

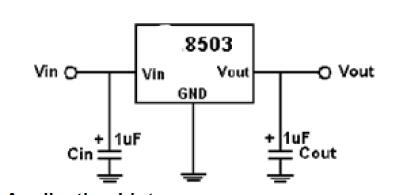

六.电路原理图</span>
七</span>,功能概述
Max input voltage ---------------------------------------------------------------------------------- 10V
Junction Temperature (TJ) ----------------------------------------------------------------------- 125°C
Ambient Temperature(TA) ------------------------------------------------------------------------ -40°C～</span>85°C
Power Dissipation
SOT-23-3------------------------------------------------------------------------------------------ 0.15W
SOT-23-5------------------------------------------------------------------------------------------ 0.25W
SOT-89-3------------------------------------------------------------------------------------------ 0.5W
Storage Temperature(Ts) ------------------------------------------------------------------------ -45°C～</span>150°C
Lead Temperature and Time -------------------------------------------------------------------- 260°C,10S
八,相关芯片选择指南
| CMOS型低压差线性稳压器(CMOS Type LDO Linear Regulator ) | |||||||||
| Part No. | Features | VIN | VOUT | Accu. | PSRR | IQ | IOUT(Max) | Package | Application |
| JTMB91XX | Low Power Consumption, LowDropout Voltage | 24V | 3.0,3.3,3.6, 4.0,5.0V | ±3% | 3.5μA | 100mA | SOT89-3 TO92 | 电表,车载,玩具,烟报,LED照明 | |
| JTMB8555 | Low Noise, High PSRR | Max 8V | 1.2~5.0V | ±2% | 65dB@1KHz | 25μA | 150mA | SOT23-5 SC70-5 | 电池供电设备 |
| JTMB8065 | HV Three-Terminal Positive Regulator | 36V | 3.3,5,12V, ADJ | ±2% | 10μA | 150mA | SOT89-3 TO92 | 电表,车载,玩具 | |
| JTMB8064 | Low Power Consumption, LowDropout Voltage | 1.5~8V | 1.1~5.5V | ±2% | 1μA | 200mA | SOT23-3 SOT89-3 TO92 | 电池供电设备 | |
| JTMB8061 | Low Power Consumption, LowDropout Voltage | Max 16V | 1.1~5.5V | ±2% | 2μA | 250mA | SOT23-3 SOT23-5 | 电池供电设备 | |
| SOT89-3 | |||||||||
| JTMB8503 | Low Dropout Voltage, Low lq | Max 8V | 1.2~6V | ±2%/±1% | 3μA | 250mA | SOT89-3 SOT23-3 TO92 | 电池供电设备 | |
| JTMB8063 | Low Noise, High PSRR | Max 6V | 2~6V | ±2% | 74dB@100Hz | 35μA | 300mA | DFN1 x 1 - 4L | 手机,无绳电话, MID等电池供电设备</span> |
| SC70-5 | |||||||||
| SOT23-5 | |||||||||
| JTMB8563 | Low Noise, High PSRR, Output Discharge | Max 6V | 1.5~4.5V | ±2% | 73dB@100Hz | 35μA | 300mA | SOT23-5 SC70-5 | 手机,无绳电话, MID等电池供电设备</span> |
| JTMB8067 | Low Noise, High PSRR, Output Discharge | Max 6V | 1.0~4.5V | ±2% | 70dB@100Hz | 35μA | 300mA | SOT23-5 SC70-5 | 手机,无绳电话, MID等电池供电设备</span> |
| JTMB9193 | RF LDO, Ultra Low Noise, High PSSR, Output Discharge | 2~6V | 1.2~5V, ADJ | ±2%/±1% | 80dB@217Hz | 90μA | 300mA | SOT23-5 SC70-5 | 电话,无绳电话, MID等电池供电设备</span> |
| 78dB@1KHz | |||||||||
| JTMB9195 | Ultra Fast, Ultra Low Noise, High PSSR, Output Discharge | 2~6V | 1.2~5V | ±2%/±1% | 78dB@217Hz | 90μA | 300mA | SOT23-3 SOT89-3 | STB,光驱,TV |
| SOT223-3 | |||||||||
| JTMB9198 | RF LDO, Ultra Low Noise, High PSSR, Output Discharge | 2~6V | 1.2~5V | ±2%/±1% | 78dB@217Hz | 90μA | 300mA | SOT23-5 SC70-5 | 电话,无绳电话, MID等电池供电设备</span> |
| JTMB9180 | Dual Channels LDO, Output Discharge | 2~6V | 1.2~5V | ±2%/±1% | 70dB@1KHz | 90μA x 2 | 300mA x 2 | SOT23-6 ESOP8 | 电话,摄像头模组</span> |
| JTMB8566 | Dual Channels LDO, Output Discharge | Max 6V | 1.5~4.5V | ±2%/±1% | 73dB@100Hz | 20μA x 2 | 300mA x 2 | SOT23-6 | 电话,摄像头模组</span> |
| JTMB8558 | Low Noise, High PSRR, | Max 8V | 1.2~4.5V | ±2%/±1% | 66dB@100Hz | 75μA | 500mA | SOT89-3 SOT23-5 | 电池供电设备 |
| Output Discharge | |||||||||
| JTMB8565 | Low Noise, Low Dropout, High PSRR, Output Discharge | Max 6V | 1.5~4.5V | ±2% | 73dB@100Hz | 20μA | 500mA | SOT89-3 | STB,光驱,TV |
| JTMB8568 | Low Noise, High PSRR Fast Response, Output Discharge | Max 6V | 1.2~4.5V | ±2% | 72dB@1KHz | 30μA | 500mA | SC70-5 SOT23-5 | 电话,无绳电话, MID等电池供电设备</span> |
| JTMB8569 | Dual Channels LDO | Max 6V | 1.2~4.5V | ±2% | 72dB@1KHz | 30μA x 2 | 500mA x 2 | SOT23-6 | 电话,摄像头模组</span> |
| JTMB9118 | 800mA Low Dropout | Max18V | 1.2,1.8,2.5, 3.3,5V | ±2% | 70dB@1KHz | 52uA | 800mA | SOT223 | TV,STB,PC主板 |
| (115mV@ IOUT =100mA) | |||||||||
| JTMB9110 | 1A Very Low Dropout (350mV@1A) | 2.5~6V | 1~5V, ADJ | ±2%/±1% | 70dB@100Hz | 70μA | 1A | DFN6 TO92 SOT89-3 SOT89-5 SOT223-3 SOT223-5 TO252-3 TO252-5 TO263-3 TO220-3 | TV,STB,PC主板 |
| Low Noise Low Quiescent Current High PSRR, Output Discharge | |||||||||
| JTMB8071 | Low Noise, Low Dropout, High PSRR | Max 6V | 1.2~5.0V | ±2% | 100μA | 1.5A | SOT223 SOT23-5 | TV,STB,PC主板 | |
| JTMB8072 | 2A Low Dropout , Low lq | Max18V | 1.2~5.0V | ±2% | 3μA | 2A | SOT223 TO252 | TV,STB,PC主板 | |
