CXPR7146A产品是锂离子/聚合物电池保护的高集成度解决方案。CXPR7146A包含先进的功率MOSFET、高精度电压检测电路和延迟电路。CXPR7146Ais采用DFN1.8X1.4x0.55-6封装，只有一个外部组件，是电池组有限空间的理想解决方案。CXPR7146AHA具有电池应用所需的所有保护功能，包括过充、过放电、过电流和负载短路保护等。准确的过充检测电压确保安全和充分利用充电。低待机电流在储存时从电池中排出很少的电流。该设备不仅面向数字蜂窝电话，也面向任何其他需要长期电池寿命的锂离子和锂聚电池供电的信息设备。
-
[ 产品资料下载 ]
目录
7.相关产品
产品概述 返回TOP
The CXPR7146A product is a high integration solution for lithiumion/polymer battery protection. CXPR7146A contains advanced power MOSFET, high-accuracy voltage detection circuits and delay circuits. CXPR7146Ais put into an DFN1.8X1.4x0.55-6 package and only one external component makes it an ideal solution in limited space of battery pack. CXPR7146Ahas all the protection functions required in the battery application including overcharging, overdischarging, overcurrent and load short circuiting protection etc. The accurate overcharging detection voltage ensures safe and full utilization charging. The low standby current drains little current from the cell while in storage. The device is not only targeted for digital cellular phones, but also for any other Li-Ion and Li-Poly battery-powered information appliances requiring longterm battery life.
产品特点 返回TOP
· Protection of Battery Cell Reverse Connection
· Integrate Advanced Power MOSFET with Equivalent of 11.5mΩ RSS(ON) · DFN1.8X1.4x0.55-6 Package
· Only One External Capacitor Required
· Over-temperature Protection
· Overcharge Current Protection
· Two-step Overcurrent Detection:
-Overdischarge Current
-Load Short Circuiting
· Charger Detection Function
· 0V Battery Charging Function
- Delay Times are generated inside
· High-accuracy Voltage Detection
· Low Current Consumption
- Operation Mode:3.9μ A typ.
- Power-down Mode: 2.2μ A typ.
· RoHS Compliant and Lead (Pb) Free
应用范围 返回TOP
One-Cell Lithium-ion Battery Pack
Lithium-Polymer Battery Pack E-Smoke
技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

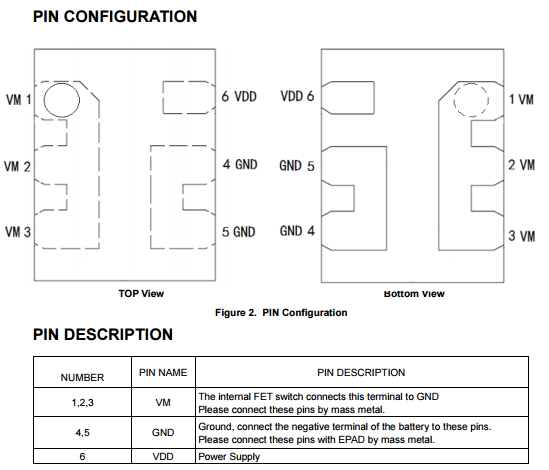

产品封装图 返回TOP
电路原理图 返回TOP
相关芯片选择指南 返回TOP 更多同类产品......
|
小过放电流/二合一锂电保护IC |
|||||||||||
|
型号 |
耐压 |
工作 电流 |
过充 电压 |
过充释 放电流 |
过放 电压 |
过放释 放电压 |
过放 自恢复 |
过流 保护 |
短路 保护 |
封装 |
说明 |
|
6.0V |
2.8uA |
4.3V |
4.1V |
2.4V |
3.0V |
OK |
OK/3A |
OK |
SOT-25 |
||
|
6.0V |
2.8uA |
4.3V |
4.1V |
2.4V |
3.0V |
OK |
OK/3A |
OK |
SOT-25 |
cost down版本 |
|
|
6.0V |
2.8uA |
4.3V |
4.1V |
2.4V |
3.0V |
OK |
OK/3A |
OK |
SOT-23 |
cost down版本 |
|
|
6.0V |
2.8uA |
4.3V |
4.1V |
2.9V |
3.0V |
OK |
OK/3A |
OK |
SOT-25 |
||
|
6.0V |
2.8uA |
4.425V |
4.25V |
2.4V |
3.0V |
OK |
OK/3A |
OK |
SOT-25 |
4.35V锂电池保护应用 |
|
|
6.0V |
2.8uA |
4.3V |
4.1V |
2.4V |
3.0V |
OK |
OK/3A |
OK |
SOT-25 |
cost down版本 |
|
|
10.0V |
2.8uA |
4.3V |
4.1V |
2.4V |
3.0V |
OK |
OK/2.5A |
OK |
SOT-26 |
||
|
6.0V |
2.8uA |
4.3V |
4.1V |
2.8V |
3.0V |
OK |
OK/0.9A |
OK |
SOT-25 |
小过放电流/保护应用 |
|
|
6.0V |
2.8uA |
4.3V |
4.1V |
2.8V |
3.0V |
OK |
OK/0.9A |
OK |
DFN2*2-6 |
小过放电流/保护超薄应用 |
|
|
6.0V |
2.8uA |
4.425V |
4.25V |
2.8V |
3.0V |
OK |
OK/0.9A |
OK |
DFN2*2-6 |
4.35V电芯/小过放电流/保护超薄 |
|
|
6.0V |
2.8uA |
4.3V |
4.1V |
2.4V |
3.0V |
OK |
OK/3A |
OK |
DFN2*2-6 |
电子烟等超薄应用 |
|
|
6.0V |
2.8uA |
4.25V |
4.1V |
2.9V |
3.0V |
OK |
OK/3A |
OK |
DFN2*2-6 |
电子烟等超薄应用 |
|
|
6.0V |
3.9uA |
4.3V |
4.10V |
2.4V |
3.0V |
OK |
OK/9A |
OK |
DFN1.8*1.4 |
电子烟等 |
|
|
8.0V |
3uA |
4.3V |
4.1V |
2.4V |
3.0V |
OK |
OK/3A |
OK |
DFN-5L |
电子烟等超薄应用 |
|
|
8.0V |
3uA |
4.4V |
4.2V |
2.8V |
3.0V |
OK |
OK/4A |
OK |
DFN-5L |
4.35V电芯保护超薄应用 |
|
