CXUS65173电荷泵是一个开关电容电压转换器，提供一个稳定的输出。操作时不需要外部感应器。使用小电容器，CXUS65173可以向电压调节输出提供高达90mA（@VIN=3V）的电压。CXUS65173在很大一部分负载范围内都具有高效率，使其成为电池供电应用的理想选择。很少的外部组件和较小的封装尺寸的结合使得在空间受限的应用中，转换器板的总面积保持在最小。CXUS65173包含热管理电路，用于在连续输出短路条件下保护设备。CXUS65173有表面安装TDFN2X2-6、SOT-23-6和TSOT-23-6组件
-
[ 产品资料下载 ]"
目录
7.相关产品
产品概述 返回TOP
The CXUS65173 Charge-Pump is a switched-capacitor voltage converter that delivers a regulated output. The external inductor is not required for operation. Using small capacitors, the CXUS65173 can deliver up to 90mA (@VIN=3V) to the voltage-regulated output. The CXUS65173 features high efficiency over a large portion of its load range making this device ideal for battery-powered applications. The combination of few external components and small package size keeps the total converter board area to a minimum in space-restricted applications. The CXUS65173 contains a thermal management circuit to protect the device under continuous output short circuit conditions. The CXUS65173is available in a surface mount TDFN2X2-6, SOT-23-6 and TSOT-23-6 package
产品特点 返回TOP
Input Range：2.7V to 5V
Quiescent Current: 90μA
Regulated 5V ±4% Output
5V Output Current 90mA with VIN ≧ 3.0V 40mA with VIN ≧ 2.7V
High Frequency 1MHz Operation
Shutdown Mode Draws Less than 1μA
Shot-Circuit/Over-temperature Protection
TDFN2X2-6, SOT-23-6 and TSOT-23-6 Package
应用范围 返回TOP
Portable Communication Devices
Cellular Phones
PDA
Handheld Electronics
Digital Cameras
LED/Display Back Light Driver
LED for Camera Flash
技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

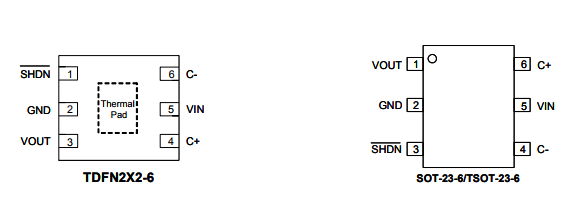

产品封装图 返回TOP
电路原理图 返回TOP
a
相关芯片选择指南 返回TOP 更多同类产品......
|
Charge Pump and Current Source |
|||||||||
|
Part NO. |
Vin(V) min. |
Vin(V) max. |
IOUT (mA) |
FOSC (kHz) |
VOUT (V) |
LED Number |
Eff. (%) |
Note |
Package |
|
3 |
5.5 |
600 |
250 |
1x/2x |
1 |
-- |
Flash LEDdriver,Flash/Torch/SHDN |
TDFN3X3-10 |
|
|
2.7 |
5.5 |
80 |
250 |
1x/2x |
4 |
90 |
4-CH LED in Parallel,PWM control16 levels dimming control |
TDFN2.5X2.5-10 TQFN3X3-16 |
|
|
2.7 |
5 |
90 |
1000 |
4.5/5 |
-- |
88 |
EN,GND,VOUT,C+,VIN,C-,Boost |
TSOT-23-6/TDFN2X2-6 |
|
|
1.8 |
5 |
60 |
270 |
-VIN |
-- |
90 |
IN,EN,GND,C-,C+,OUT,Inverting |
SOT-23-6/TDFN2X2-6 |
|
|
1.8 |
5 |
60 |
270 |
-VIN |
-- |
90 |
NC,CP+,GND,CP-,OUT,NC,NC,IN |
SOP-8 |
|
|
8 |
24 |
10 |
350 |
1.5x |
-- |
-- |
PG,D_CAP |
MSOP-8 |
|
|
8 |
24 |
10 |
370 |
1.5x |
-- |
-- |
PG,D_CAP,12V,ONx,DRIVERx |
TQFN3X3-20 |
|
|
4.5 |
5.5 |
14 |
-- |
2x |
-- |
-- |
2-NMOSFET driver,20mA discharging |
TQFN3X3-20 |
|
