CXSD6108是一款高效率的同步、脉宽调制降压型DC/DC转换器，工作电压范围为2.2V至5.5V。此功能使CXSD6108适合单锂离子电池供电的应用。100%占空比能力延长便携式电池寿命器件，当静态电流为200μA且无负载时，降至<1μA关闭中。
-
"
目录
1.产品概述 2.产品特点
3.应用范围 4.下载产品资料PDF文档
5.产品封装图 6.电路原理图
7.功能概述 8.相关产品
一,产品概述(General Description)
The CXSD6108 is high efficiency synchronous,PWM step-down DC/DC converters working under an input voltage range from 2.2V to 5.5V.
This feature makes the CXSD6108 suitable for single Li-Lon battery-powered applications. 100% duty cycle capability extends battery life in portable
devices, while the quiescent current is 200μA with no load, and drops to<1μA
in shutdown.
The internal synchronous switch is desired to increase efficiency without an external Schottky diode. The 1.0MHz/1.4MHz switching frequency allows the
using of tiny, low profile inductors and ceramic capacitors, which minimized
overall solution footprint.
The CXSD6108 converters are available in the industry standard TSOT/
SOT-23-5L power packages (or upon request)
二.产品特点(Features)
Up to 95% Efficiency
Current Mode Operation for Excellent Line
and Load Transient Response
700mA Output Current
Low Quiescent Current: 200μA
Output Voltage: 0.6V ～ 5.5V
Automatic PWM/PFM Mode Switching
No Schottky Diode Required
Frequency Operation: 1.0MHz for Fixed
Output Voltage and 1.4MHz for Adjustable
Output Voltage
Short-Circuit Protection
Shutdown Quiescent Current:<1μA
Low Profile TSOT/ SOT-23-5L Package
(lead-free packaging is now available)
三,应用范围 (Applications)
Digital cameras and MP3
Palmtop computers / PDAs
Cellular phones
Wireless handsets and DSL modems
Portable media players
PC cards
四.技术规格书下载（产品PDF）
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

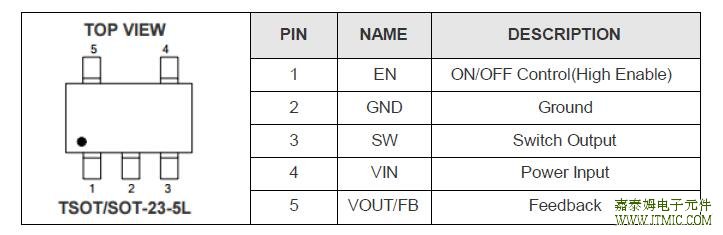

五,产品封装图 (Package)
六.电路原理图
七,功能概述
Power Dissipation………………………………………………………………………Internally Iimited
Input Voltage…………………………………………………………………………………..-0.3V ～ +6V
Output Voltage……………………………………………………………………….…….....-0.3V ～ +6V
EN,SW Pin Voltage……………………..………………..……………………...……-0.3V ～ (VIN+0.3)V
SW Pin Current….………………………………………………………………...……………………..1.3A
Operating Temperature Range(Note 2) ………………………………………………...-40℃ ～ +85℃
Junction Temperature ………………………………………………………...…………-40℃ ～ +125℃
Storage Temperature Range ………………………………………………………….-65℃ ～ +150℃
Lead Temperature (Soldering,10 sec.) ………………………………………..…………………..+265℃
八,相关芯片选择指南 更多同类产品......
|
DC-DC降压 |
|||||
|
Model |
VIN (V) |
VOUT (V) |
ISW |
FOSC(MHz) |
Package |
|
0.6V ～5V |
0.6 ～ 5.5 |
1.3A |
1~1.4 |
SOT-23-5L |
|
|
5V~16V |
1.2V~16V |
2A |
400kHz |
SOP-8L |
|
|
2.5 ～ 5.5 |
0.6 ～ 5.5 |
1.3A |
1~1.4 |
SOT-23-5L |
|
|
2.5 ～ 5.5 |
0.6V ～ 5.5V |
700mA |
1.4MHz |
DFN3*3-10L |
|
|
2.5V ～5.5V |
0.6V ～ 5.5V |
3A |
950kHz |
SOT-23-5L |
|
|
2.5V ～5.5V |
0.6V ～ 5.5V |
1.4A |
950kHz |
SOT-23-5L |
|
|
10V ~ 30V |
0.6V ～ 5.5V |
2.5A |
500k |
SOP-8 |
|
|
8V ～ 30V |
0.6V ～ 5.5V |
3.5A |
500KHz |
SOP8 |
|
|
8V ～ 30V |
0.6V ～ 5.5V |
3.0A |
500KHz |
SOP8 |
|
|
8V ～ 30V |
0.6V ～ 5.5V |
2A |
500KHz |
SOP8 |
|
