CXSD62382/3是一个内置功率MOSFET的单片降压开关模式稳压器。它在宽的输入电源范围内实现3A连续输出电流，具有良好的负载和线路调节。电流模式操作提供快速的瞬态响应，并简化回路稳定。故障状态保护包括逐周限流、输出短路保护和热关机
-
[ 产品资料下载 ]
目录
7.相关产品
产品概述 返回TOP
The CXSD62382/3 is a monolithic step-down switch mode regulator with a built in internal power MOSFET. It achieves 3A continuous output current over a wide input supply range with excellent load and line regulation. Current mode operation provides fast transient response and eases loop stabilization. Fault condition protection includes cycle-by-cycle current limiting, output short circuit protection and thermal shutdown. In shutdown mode the regulator draws 25μA of supply current. Programmable soft-start overwrites the internal soft-start for various requirement of output power up ramp and minimizes the inrush supply current at initial startup. The CXSD62382/3 requires a minimum number of readily available standard external components. It is available in a SOP-8 (FD) package.
产品特点 返回TOP
„ 3A Output Current
„ 0.15Ω Internal Power MOSFET Switch
„ Stable with Low ESR Output Ceramic Capacitors
„ Up to 95% Efficiency
„ 25μA Shutdown Mode
„ Fixed 380kHz Frequency
„ Thermal Shutdown
„ Cycle-by-Cycle Over Current Protection
„ Wide 4.75V to 20V Operating Input Range
„ Output Adjustable from 1.22V to 12V
„ Available in SOP-8 (FD) Package
应用范围 返回TOP
„ PC Monitors
„ DSL Modems
„ Distributed Power Systems
„ Pre-Regulator for Linear Regulators
技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

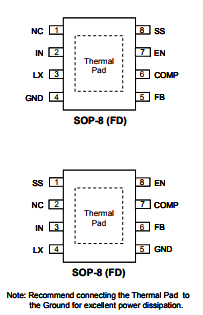

产品封装图 返回TOP
电路原理图 返回TOP
相关芯片选择指南 返回TOP 更多同类产品.....
|
