CXSD62504是一款高效的3MHz同步降压DC/DC稳压器，能够提供高达4A的输出电流。它在2.7V到5.5V的宽输入电压范围内工作。它将主开关和同步开关与极低的RDS（ON）集成在一起，以最小化传导损耗。高集成度解决方案和DFN2x2-8封装实现了优化的物料清单成本，减少了外部零部件的数量。实现了低输入输出电压纹波、小外部电感和电容尺寸、小PCB布局空间
-
[ 产品资料下载 ]
目录
7.相关产品
产品概述 返回TOP
CXSD62504 is a high efficiency 3MHz synchronous step down DC/DC regulator capable of delivering up to 4A output current. It operates over a wide input voltage range from 2.7V to 5.5V. It integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. High integrated solution and DFN2x2-8 package perform the optimized BOM cost and reduce external component part count. Low input and output voltage ripple, small external inductor and capacitor sizes, small PCB layout space are achieved.
产品特点 返回TOP
· Low RDS(ON) for Internal Switches (Top/Bottom): 35/15 mΩ
· 2.7-5.5V Input Voltage Range
· 3MHz Switching Frequency Minimizes the External Components
· Internal Soft-start Limits the Inrush Current
· Up to 92% Efficiency
· 4A Continuous Output Current Capability
· Shutdown Mode Draws<0.1μA Supply Current
· 100% Dropout Operation
· Power Good Indicator
· OCP/UVLO/OTP Protections
· RoHS Compliant and Halogen Free
· Compact Package: DFN2x2-8
应用范围 返回TOP
· High Definition Set Top Box
· LCD TV
· Notebook PC
技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

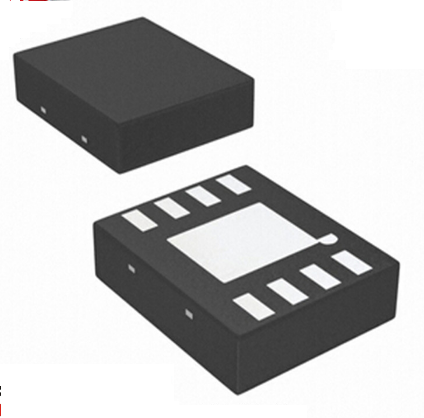

产品封装图 返回TOP
电路原理图 返回TOP
相关芯片选择指南 返回TOP 更多同类产品。。。。
|
