CXSU6381是一种电流模式升压型DC-DC转换器，具有PWM/PSM控制。内置30mΩ高压侧开关和30mΩ低压侧开关的PWM电路使该调节器具有很高的功率效率。内部补偿网络还将外部元件数量降至6个。内部0.6V电压连接到误差放大器，非逆变输入作为精密参考电压。内置软启动功能，减少励磁涌流。
-
[ 产品资料下载 ]
目录
1.产品概述 2.产品特点 3.应用范围 4.技术规格书下载（PDF文档）
一.产品概述
The CXSU6381 is a current mode boost DC-DC converter with PWM/PSM control. Its PWM circuitry with built-in 30mΩ high side switch and 30mΩ low side switch make this regulator highly power efficient. The internal compensation network also minimizes external component counts to only 6. An internal 0.6V voltage is connected to error amplifier the non-inverting input as precision reference voltage. Built-in soft-start function can reduce the inrush current.
二.产品特点
˙Current mode with PWM/PSM control
˙Input voltage range: 2.4V~4.5V
˙Adjustable Output up to 5.3V
˙Shutdown current:<1uA
˙Oscillator frequency: 500KHz
˙Reference voltage: 0.6V +/-2%
˙Disconnect load during shutdown
˙Cycle-by-cycle current limit
˙Low RDS(on): 30mΩ for both high and low side
˙Protection: OTP, OCP, SCP
˙Internal compensation
˙Internal soft-start: 7ms
˙Package: SOP-8L(EP)
三.应用范围
Ø Chargers
Ø Handheld Devices
Ø Portable Products
Ø Power Bank
四.技术规格书（产品PDF)
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

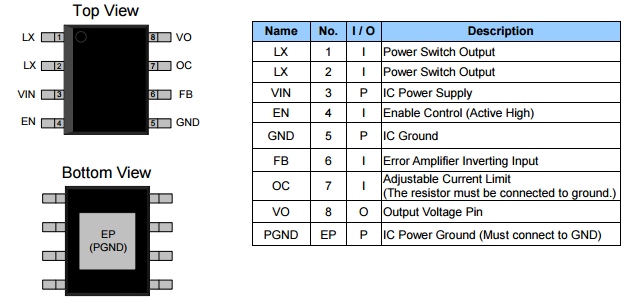

五.产品封装图
六.电路原理图
七.相关芯片选择指南 更多同类产品......
| 同步升压型（Boost）变换器SYNCHRONOUS STEP-UP(BOOST)CONVERTERS | ||||||||||
| Part No. | VIN | VOUT | Driver | Feedback | Switching | Soft Start | Notes | Package | Status | |
| (Min) | (Max) | (Max) | Current | Voltage | Frequency | |||||
| (V) | (V) | (A) | (V) | (kHz) | ||||||
| CXSU6380 | 2.4 | 4.5 | 5.3 | 6 | 0.6 | 500 | Internal | OCP Fix | SOP8E | MP |
| CXSU6380B | 2.4 | 4.5 | 5.3 | 6 | 0.6 | 500 | Internal | OCP Adjust | SOP8E | MP |
| CXSU6381 | 2.4 | 4.5 | 5.3 | 7 | 0.6 | 500 | Internal | OCP Adjust | SOP8E | MP |
