CXLD6499是一个具有3A输出电流能力的低压差三端可调稳压器。为了获得较低的压降和较快的瞬态响应，这对低电压应用至关重要，对CXLD6499进行了优化。可调版本的输出可用电压范围为1.25~5.75V，输入电源低于7V，还提供固定的3.3V输出电压装置。
-
[ 产品资料下载 ]
目录
7.相关产品
产品概述 返回TOP
The CXLD6499 is a low dropout three-terminal adjustable regulator with 3A output current capability. In order to obtain lower dropout voltage and faster transient response which is critical for low voltage applications, the CXLD6499 has been optimized. The output available voltage range of adjustable version is from 1.25 to 5.75V with an input supply below 7V, and the fixed 3.3V output voltage device is also available. Current limit is trimmed to ensure specified output current and controlled short-circuit current. On-chip thermal limiting provides protection against any combination of overload that would create excessive junction temperatures. The CXLD6499 is available in both the through-hole and surface mount versions of the industry standard 3-pin TO-220,TO-252, and TO-263 power packages
产品特点 返回TOP
· Fast Transient Response
· Guaranteed Dropout Voltage at Multiple Currents
· Load Regulation : 0.05% Typ.
· Line Regulation : 0.03% Typ.
· Low Dropout Voltage : 1.2V Typ. at IOUT =3A
· Trimmed Current Limit : 3A Typ. at TJ =125°C
· On-Chip Thermal Limiting : 150°C Typ.
· Standard 3-Pin TO-220, TO-252, and TO-263 Power Package
· Lead Free and Green Devices Available (RoHS Compliant)
应用范围 返回TOP
· PentiumTM Processor Supplies
· Power PCTM Supplies
· Low Voltage Logic Supplies
· Battery-Powered Circuitry
· Post Regulator for Switching Power Supply
技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

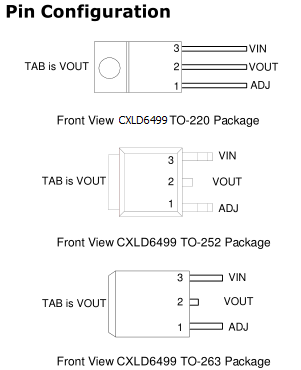

产品封装图 返回TOP
