CXAO42155A CXAO42155B（双台）、CXAO42155C（单台停机）和CXAO42155D（四台）是低噪声、低电压和低功率运算放大器，可被广泛应用。CXAO42155A/B/C/D具有11MHz的高增益带宽积和8.5V/μs的转换速率。CXAO42155C具有断电禁用功能，可将电源电流降低到小于1μa。
CXAO42155A/B/C/D设计用于在低电压和低噪声系统中提供最佳性能。它们提供轨对轨输出，使其摆动成重载。输入共模电压范围包括接地，CXAO42155A/B/C/D的最大输入偏置电压为4mV。它们是在扩展的工业温度范围（-40℃到+125℃）内指定的。工作电源范围为2.1V至5.5V。
单一版本的CXAO42155A有绿色SC70-5、SOT-23-5和SOIC-8封装。CXAO42155C提供绿色SOT-23-6和SOIC-8封装。双版本CXAO42155B有绿色SOIC-8、MSOP-8和TSSOP-8软件包。四版本CXAO42155D有绿色SOIC-14和TSSOP-14两种包装。
•轨对轨输入和输出
4mV最大VOS
•高增益带宽产品：11MHz
•高转换率：8.5V/μs
•2V步进，沉降时间为0.1%：0.21μs
•过载恢复时间：0.6μs
•低噪声：10kHz时8.5nV/√Hz
•电源电压范围：2.1V至5.5V
•输入电压范围=-0.1V至+5.6V，VS=5.5V
•低功率
-
[ CXAO42155A ]"
目录
7.相关产品
产品概述 返回TOP
The CXAO42155A (single), CXAO42155B (dual), CXAO42155C (single with shutdown) and CXAO42155D (quad) are low noise, low voltage, and low power operational amplifiers, that can be designed into a wide range of applications. The CXAO42155A/B/C/D have a high gain-bandwidth product of 11MHz and a slew rate of 8.5V/μs. The CXAO42155C has a power-down disable feature that reduces the supply current to less than 1μA.
The CXAO42155A/B/C/D are designed to provide optimal performance in low voltage and low noise systems. They provide rail-to-rail output swing into heavy loads. The input common mode voltage range includes ground, and the maximum input offset voltage is 4mV for CXAO42155A/B/C/D. They are specified over the extended industrial temperature range (-40℃ to +125℃). The operating supply range is from 2.1V to 5.5V.
The single version, CXAO42155A is available in Green SC70-5, SOT-23-5 and SOIC-8 packages. CXAO42155C is available in Green SOT-23-6 and SOIC-8 packages. The dual version CXAO42155B is available in Green SOIC-8, MSOP-8 and TSSOP-8 packages. The quad version CXAO42155D is available in Green SOIC-14 and TSSOP-14 packages.
产品特点 返回TOP
• Rail-to-Rail Input and Output
4mV Maximum VOS
• High Gain-Bandwidth Product: 11MHz
• High Slew Rate: 8.5V/μs
• Settling Time to 0.1% with 2V Step: 0.21μs
• Overload Recovery Time: 0.6μs
• Low Noise : 8.5nV/√Hz at 10kHz
• Supply Voltage Range: 2.1V to 5.5V
• Input Voltage Range = -0.1V to +5.6V with VS = 5.5V
• Low Power
CXAO42155A/3: 1.2mA (TYP)
CXAO42155B/4: 1.1mA/Amplifier (TYP)
CXAO42155C Less than 1μA when Disabled
• Small Packaging
CXAO42155A Available in Green SC70-5, SOT-23-5 and SOIC-8 Packages
CXAO42155B Available in Green MSOP-8, SOIC-8 and TSSOP-8 Packages
CXAO42155C Available in Green SOT-23-6 and SOIC-8 Packages
CXAO42155D Available in Green TSSOP-14 and SOIC-14 Packages
应用范围 返回TOP
Sensors
Audio
Active Filters
A/D Converters
Communications
Test Equipment
Cellular and Cordless Phones
Laptops and PDAs
Photodiode Amplification
Battery-Powered Instrumentation
技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

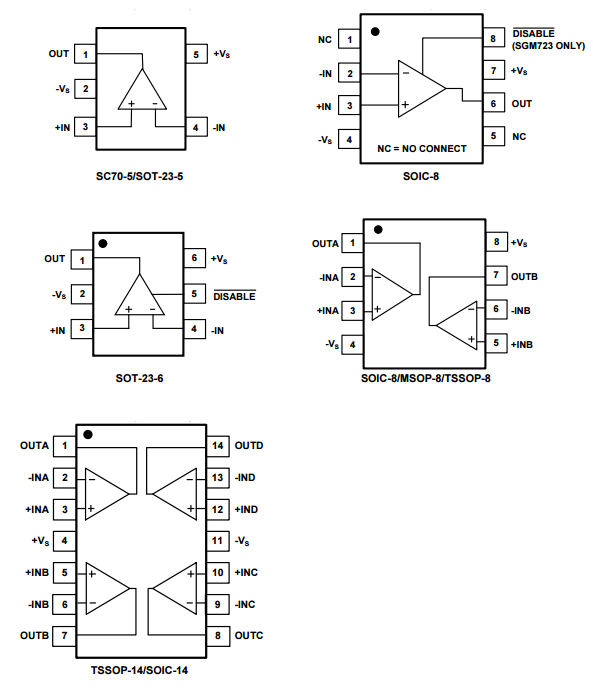

产品封装图 返回TOP

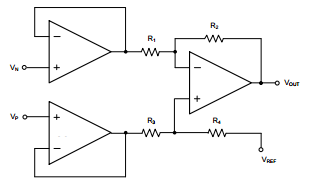

电路原理图 返回TOP
相关芯片选择指南 返回TOP 更多同类产品......
|
低噪声运算放大器 |
|||||||||||
|
Part No. |
CH |
SHDN |
VCC (Min) |
VCC (Max) |
VOS (mV) |
Iq/CH (μA) |
IB (pA) |
GBP (MHz) |
SR (V/μs) |
ENOISE (nV/√Hz) |
Package |
|
1 |
N |
2.1 |
5.5 |
4 |
1.2 |
1 |
11 |
8.5 |
12.5 |
SOT-23-5 SOIC-8 SC70-5 |
|
|
2 |
N |
2.1 |
5.5 |
4 |
1.1 |
1 |
11 |
8.5 |
12.5 |
SOIC-8 MSOP-8 TSSOP-8 |
|
|
1 |
Y |
2.1 |
5.5 |
4 |
1.2 |
1 |
11 |
8.5 |
12.5 |
SOT-23-6 SOIC-8 |
|
|
4 |
N |
2.1 |
5.5 |
4 |
1.1 |
1 |
11 |
8.5 |
12.5 |
SOIC-14 TSSOP-14 |
|
|
1 |
N |
2 |
5.5 |
3 |
0.27 |
1 |
3 |
1.7 |
17.5 |
SOT-23-5 SOIC-8 SC70-5 |
|
|
2 |
N |
2 |
5.5 |
3 |
0.21 |
1 |
3 |
1.7 |
17.5 |
SOIC-8 MSOP-8 |
|
|
1 |
Y |
2 |
5.5 |
3 |
0.27 |
1 |
3 |
1.7 |
17.5 |
SOT-23-6 SOIC-8 |
|
|
4 |
N |
2 |
5.5 |
3 |
0.21 |
1 |
3 |
1.7 |
17.5 |
SOIC-14 TSSOP-14 |
|
|
1 |
N |
2 |
5.5 |
3.5 |
0.57 |
1 |
6 |
3.7 |
13 |
SOT-23-5 SOIC-8 SC70-5 |
|
|
2 |
N |
2 |
5.5 |
3.5 |
0.48 |
1 |
6 |
3.7 |
13 |
MSOP-8 SOIC-8 |
|
|
1 |
Y |
2 |
5.5 |
3.5 |
0.57 |
1 |
6 |
3.7 |
13 |
SOT-23-6 SOIC-8 |
|
|
4 |
N |
2.5 |
5.5 |
3.5 |
0.47 |
1 |
6 |
3.7 |
12 |
SOIC-14 TSSOP-14 |
|
|
1 |
N |
2.5 |
5.5 |
8 |
2.3 |
6 |
50 |
66 |
8.7@1MHz |
SOT-23-5 SOIC-8 |
|
|
2 |
N |
2.5 |
5.5 |
8 |
2.3 |
6 |
50 |
66 |
8.7@2MHz |
SOIC-8 MSOP-8 |
|
|
1 |
Y |
2.5 |
5.5 |
8 |
2.3 |
6 |
50 |
66 |
8.7@3MHz |
SOT-23-6 SOIC-8 |
|
|
4 |
N |
2.5 |
5.5 |
8 |
2.3 |
6 |
50 |
66 |
8.7@4MHz |
SOIC-14 TSSOP-14 |
|
|
2 |
Y |
2.5 |
5.5 |
8 |
2.3 |
6 |
50 |
66 |
8.7@5MHz |
MSOP-10 |
|
