产品概述 返回TOPRGh嘉泰姆
The CXSU63021D is a high frequency, high efficiency DC to DC
converter with anintegrated 4A, 0.1Ω power switch capable of providing an
output voltage up to 14V.
The fixed 1.2MHz allows the use of small external inductions and capacitors
and provides fast transient response. It integrates Soft start, Comp,. only need few
components outside. 产品特点 返回TOP
1.6V to 6V input voltage Rangel
Efficiency up to 96%
14V Boost converter with 4A switch
current
1.2Mhz fixed Switching Frequency
Integrated soft-start
Thermal Shutdown
Under voltage Lockout
ESD 8KV Pass( HBM )
8-Pin SOP-PP PackageRGh嘉泰姆
应用范围 返回TOPRGh嘉泰姆
Handheld Devices
GPS Receiver
Digital Still Camera
Portable Applications
DSL Modem
PCMCIA Card
TFT LCD Bias SupplyRGh嘉泰姆
技术规格书（产品PDF) 返回TOP RGh嘉泰姆
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持</span>！</span>
RGh嘉泰姆
RGh嘉泰姆

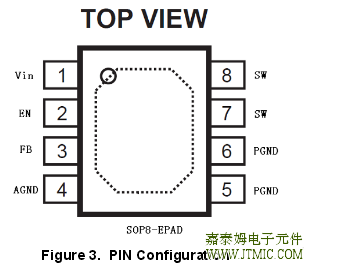

产品封装图 返回TOPRGh嘉泰姆
RGh嘉泰姆
电路原理图 返回TOPRGh嘉泰姆
RGh嘉泰姆
RGh嘉泰姆
RGh嘉泰姆
内置MOS DC-DC升压ICRGh嘉泰姆 |
型号RGh嘉泰姆 | 工作模式RGh嘉泰姆 | 工作电压范围RGh嘉泰姆 | 输出电压RGh嘉泰姆 | 输出电压形式RGh嘉泰姆 | 输出电压精度RGh嘉泰姆 | 最大输出电流</span>RGh嘉泰姆 | 效率RGh嘉泰姆 | 静态电流</span>RGh嘉泰姆 | 工作频率RGh嘉泰姆 | 封装RGh嘉泰姆 |
CXSU63002RGh嘉泰姆 | PFMRGh嘉泰姆 | 0.8V-VoutRGh嘉泰姆 | 2.2/2.7/2.83.0RGh嘉泰姆 /3.3/3.6/4.0/5.0RGh嘉泰姆 | 固定输出RGh嘉泰姆 | ±2%RGh嘉泰姆 | 500mARGh嘉泰姆 | 85%RGh嘉泰姆 | 4uARGh嘉泰姆 | 350KHzRGh嘉泰姆 | SOT-89 SOT23-3L TO-92RGh嘉泰姆 |
CXSU63004RGh嘉泰姆 | PWMRGh嘉泰姆 | 2.7V-5.5VRGh嘉泰姆 | 最大22VRGh嘉泰姆 | 可调输出RGh嘉泰姆 | ±2%RGh嘉泰姆 | 300mARGh嘉泰姆 | 88%RGh嘉泰姆 | 90uARGh嘉泰姆 | 1MHzRGh嘉泰姆 | SOT-25RGh嘉泰姆 |
CXSU63005RGh嘉泰姆 | PWM PFMRGh嘉泰姆 | 2.5V-6.0VRGh嘉泰姆 | 最大28VRGh嘉泰姆 | 可调输出RGh嘉泰姆 | ±2%RGh嘉泰姆 | 1.5ARGh嘉泰姆 | 90%RGh嘉泰姆 | 1uARGh嘉泰姆 | 1.2MHzRGh嘉泰姆 | SOT-25RGh嘉泰姆 |
CXSU63006RGh嘉泰姆 | PWM PFMRGh嘉泰姆 | 2.5V-6.0VRGh嘉泰姆 | 最大12VRGh嘉泰姆 | 可调输出RGh嘉泰姆 | ±2%RGh嘉泰姆 | 3.5ARGh嘉泰姆 | 95%RGh嘉泰姆 | 1uARGh嘉泰姆 | 1.2MHzRGh嘉泰姆 | SOT-26RGh嘉泰姆 |
CXSU63006BRGh嘉泰姆 | PWM PFMRGh嘉泰姆 | 2.0V-24VRGh嘉泰姆 | 最大28VRGh嘉泰姆 | 可调输出RGh嘉泰姆 | ±2%RGh嘉泰姆 | 4ARGh嘉泰姆 | 97%RGh嘉泰姆 | 0.1uARGh嘉泰姆 | 1.2MHzRGh嘉泰姆 | SOT-26RGh嘉泰姆 |
CXSU63007RGh嘉泰姆 | PWM PFMRGh嘉泰姆 | 2.0V-24VRGh嘉泰姆 | 最大28VRGh嘉泰姆 | 可调输出RGh嘉泰姆 | ±2%RGh嘉泰姆 | 3.5ARGh嘉泰姆 | 97%RGh嘉泰姆 | 0.1uARGh嘉泰姆 | 1.2MHzRGh嘉泰姆 | SOT-26RGh嘉泰姆 |
CXSU63008RGh嘉泰姆 | PWMRGh嘉泰姆 | 2.5V-5VRGh嘉泰姆 | 最大18VRGh嘉泰姆 | 可调输出RGh嘉泰姆 | ±2%RGh嘉泰姆 | 4.5ARGh嘉泰姆 | 90%RGh嘉泰姆 | 52uARGh嘉泰姆 | 400KHzRGh嘉泰姆 | SOT-26RGh嘉泰姆 |
CXSU63009RGh嘉泰姆 | PWMRGh嘉泰姆 | 2.5V-6.5VRGh嘉泰姆 | 最大8VRGh嘉泰姆 | 可调输出RGh嘉泰姆 | ±2%RGh嘉泰姆 | 5ARGh嘉泰姆 | 93%RGh嘉泰姆 | 100uARGh嘉泰姆 | 1.2MHzRGh嘉泰姆 | SOT-26RGh嘉泰姆 |
CXSU63010RGh嘉泰姆 | PWMRGh嘉泰姆 | 2.3-6VRGh嘉泰姆 | 最大14VRGh嘉泰姆 | 可调输出RGh嘉泰姆 | ±2%RGh嘉泰姆 | 4A/带限流保护</span>RGh嘉泰姆 | 96%RGh嘉泰姆 | 0.1uARGh嘉泰姆 | 1.2MHzRGh嘉泰姆 | SOT-26RGh嘉泰姆 |
CXSU63010BRGh嘉泰姆 | PWMRGh嘉泰姆 | 2.3V-6VRGh嘉泰姆 | 最大26VRGh嘉泰姆 | 可调输出RGh嘉泰姆 | ±2%RGh嘉泰姆 | 3A/带限流保护</span>RGh嘉泰姆 | 96%RGh嘉泰姆 | 75uARGh嘉泰姆 | 1.2MHzRGh嘉泰姆 | SOT-23-6RGh嘉泰姆 |
CXSU63011RGh嘉泰姆 | PWMRGh嘉泰姆 | 2.5V-6.0VRGh嘉泰姆 | 最大12VRGh嘉泰姆 | 可调输出RGh嘉泰姆 | ±2%RGh嘉泰姆 | 2A/带限流保护</span>RGh嘉泰姆 | 90%RGh嘉泰姆 | 200uARGh嘉泰姆 | 1.2MHzRGh嘉泰姆 | SOT-26RGh嘉泰姆 |
CXSU63012RGh嘉泰姆 | PWM PFMRGh嘉泰姆 | 0.9V-6.0VRGh嘉泰姆 | 1.5V-12VRGh嘉泰姆 | 可调输出RGh嘉泰姆 | ±2%RGh嘉泰姆 | 4ARGh嘉泰姆 | 90%RGh嘉泰姆 | 0.5uARGh嘉泰姆 | 1MHzRGh嘉泰姆 | SOT-25RGh嘉泰姆 |
CXSU63013RGh嘉泰姆 | PWMRGh嘉泰姆 | 2.0V-5.5VRGh嘉泰姆 | 最大24VRGh嘉泰姆 | 可调输出RGh嘉泰姆 | ±2%RGh嘉泰姆 | 3ARGh嘉泰姆 | 90%RGh嘉泰姆 | 15uARGh嘉泰姆 | 400KHzRGh嘉泰姆 | SOT-26RGh嘉泰姆 |
CXSU63014RGh嘉泰姆 | PWMRGh嘉泰姆 | 1.2V-15VRGh嘉泰姆 | 最大34VRGh嘉泰姆 | 可调输出RGh嘉泰姆 | ±2%RGh嘉泰姆 | 350mARGh嘉泰姆 | 80%RGh嘉泰姆 | 1uARGh嘉泰姆 | 1MHzRGh嘉泰姆 | SOT-25RGh嘉泰姆 |
CXSU63015RGh嘉泰姆 | PWMRGh嘉泰姆 | 0.8V-6VRGh嘉泰姆 | 最大12VRGh嘉泰姆 | 可调输出RGh嘉泰姆 | ±2%RGh嘉泰姆 | 2.0ARGh嘉泰姆 | 90%RGh嘉泰姆 | 14uARGh嘉泰姆 | 500KHzRGh嘉泰姆 | SOT-26RGh嘉泰姆 |
CXSU63015BRGh嘉泰姆 | PWMRGh嘉泰姆 | 2.5V-5.5VRGh嘉泰姆 | 最大10VRGh嘉泰姆 | 可调输出RGh嘉泰姆 | ±2%RGh嘉泰姆 | 2.2ARGh嘉泰姆 | 92%RGh嘉泰姆 | 21uARGh嘉泰姆 | 1MHzRGh嘉泰姆 | SOT-26RGh嘉泰姆 |
CXSU63016RGh嘉泰姆 | PWMRGh嘉泰姆 | 2.6V-6.0VRGh嘉泰姆 | 最大12VRGh嘉泰姆 | 可调输出RGh嘉泰姆 | ±2%RGh嘉泰姆 | 3.5ARGh嘉泰姆 | 90%RGh嘉泰姆 | 170uARGh嘉泰姆 | 1MHzRGh嘉泰姆 | ESOP-8RGh嘉泰姆 |
CXSU63016BRGh嘉泰姆 | PWMRGh嘉泰姆 | 2.5V-6.0VRGh嘉泰姆 | 最大9VRGh嘉泰姆 | 可调输出RGh嘉泰姆 | ±2%RGh嘉泰姆 | 4.5ARGh嘉泰姆 | 95%RGh嘉泰姆 | 0.1uARGh嘉泰姆 | 1MHzRGh嘉泰姆 | ESOP-8RGh嘉泰姆 |
CXSU63018RGh嘉泰姆 | PWMRGh嘉泰姆 | 2.5V-6.5VRGh嘉泰姆 | 最大8VRGh嘉泰姆 | 可调输出RGh嘉泰姆 | ±2%RGh嘉泰姆 | 5.5ARGh嘉泰姆 | 93%RGh嘉泰姆 | 100uARGh嘉泰姆 | 1.2MHzRGh嘉泰姆 | ESOP-8RGh嘉泰姆 |
CXSU63019RGh嘉泰姆 | PWMRGh嘉泰姆 | 2.7V-6.5VRGh嘉泰姆 | 最大24VRGh嘉泰姆 | 可调输出RGh嘉泰姆 | ±2%RGh嘉泰姆 | 12ARGh嘉泰姆 | 96%RGh嘉泰姆 | 140uARGh嘉泰姆 | 600KHzRGh嘉泰姆 | ESOP-8RGh嘉泰姆 |
CXSU63020RGh嘉泰姆 | PWMRGh嘉泰姆 | 2.3V-6VRGh嘉泰姆 | 最大14VRGh嘉泰姆 | 可调输出RGh嘉泰姆 | ±2%RGh嘉泰姆 | 4ARGh嘉泰姆 | 90%RGh嘉泰姆 | 75uARGh嘉泰姆 | 1.2MHzRGh嘉泰姆 | MSOP-8RGh嘉泰姆 |
CXSU63021RGh嘉泰姆 | PWMRGh嘉泰姆 | 2.3V-6VRGh嘉泰姆 | 最大26VRGh嘉泰姆 | 可调输出RGh嘉泰姆 | ±2%RGh嘉泰姆 | 2.8ARGh嘉泰姆 | 96%RGh嘉泰姆 | 75uARGh嘉泰姆 | 1.2MHzRGh嘉泰姆 | SOP-8PPRGh嘉泰姆 |
CXSU63021DRGh嘉泰姆 | PWMRGh嘉泰姆 | 1.6V-6VRGh嘉泰姆 | 最大14VRGh嘉泰姆 | 可调输出RGh嘉泰姆 | ±2%RGh嘉泰姆 | 4ARGh嘉泰姆 | 96%RGh嘉泰姆 | 75uARGh嘉泰姆 | 1.2MHzRGh嘉泰姆 | SOP-8PPRGh嘉泰姆 |
CXSU63022RGh嘉泰姆 | PWMRGh嘉泰姆 | 3.6V-26VRGh嘉泰姆 | 最大60VRGh嘉泰姆 | 可调输出RGh嘉泰姆 | ±2%RGh嘉泰姆 | 2ARGh嘉泰姆 | 90%RGh嘉泰姆 | 70uARGh嘉泰姆 | 400KHzRGh嘉泰姆 | SOP-8RGh嘉泰姆 |
CXSU63023RGh嘉泰姆 | PWMRGh嘉泰姆 | 3.6V-36VRGh嘉泰姆 | 最大60VRGh嘉泰姆 | 可调输出RGh嘉泰姆 | ±2%RGh嘉泰姆 | 3ARGh嘉泰姆 | 92%RGh嘉泰姆 | 70uARGh嘉泰姆 | 400KHzRGh嘉泰姆 | TO252-5LRGh嘉泰姆 |
CXSU63024RGh嘉泰姆 | PWMRGh嘉泰姆 | 5V-45VRGh嘉泰姆 | 最大60VRGh嘉泰姆 | 可调输出RGh嘉泰姆 | ±2%RGh嘉泰姆 | 5ARGh嘉泰姆 | 94%RGh嘉泰姆 | 70uARGh嘉泰姆 | 220KHzRGh嘉泰姆 | TO263-5LRGh嘉泰姆 |
