EnglishCX07N60 CX07N60F is N-Channel enhancement MOS Field Effect Transistor. Uses advanced high voltage MOSFET Process and design to provide excellent RDS (ON) with low gate charge
摘要：CX07N60 CX07N60F is N-Channel enhancement MOS Field Effect Transistor. Uses advanced high voltage MOSFET Process and design to provide excellent RDS (ON) with low gate charge
目录
1.产品概述 2.产品特点 3.应用范围 4.技术规格书下载（PDF文档）</span>
5.产品封装 6.电路原理图</strong> 7.相关产品

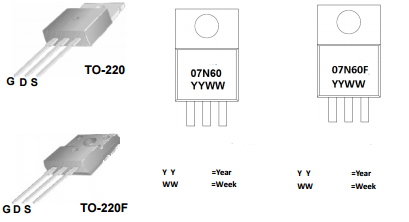

The CX07N60 CX07N60F is N-Channel enhancement MOS Field Effect Transistor. Uses advanced high voltage MOSFET Process and design to provide excellent RDS (ON) with low gate charge. This device is suitable for use in popular AC-DC applications, power switching application and a wide variety of other applications.
600V@TJ=25
Typ.RDS(on)=1.0 Ω
Low gate charge
100% avalanche tested
100% Rg tested
Driver for Relay, Solenoid, Motor, LED etc.
DC-DC converter circuit
Power Switch
Load Switch
Charging
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持</span>！</span>
七.相关芯片选择指南 更多同类产品......
| 场效应晶体管 N沟道MOS管</td> | |||||||||
| Product | Polarity | Channel | VDS | VGS | VGS(th) | RDS(ON)@VGS=4.5V | ID@TA=25oC | Package | Size |
| (Max.) | (Max.) | (Max.) | (Typ.) | (MAX.) | |||||
| (V) | (V) | (V) | (Ω) | (A) | (mm)(L×W) | ||||
| CX380N60T | N | 1 | 600 | ±30 | 4.5 | 0.36 | 10.6 | TO-220 | 22 x 10 |
| CX380N60TF | N | 1 | 600 | ±30 | 4.5 | 0.36 | 10.6 | TO-220F | 29 x 10 |
| CX380N60TG | N | 1 | 600 | ±30 | 4.5 | 0.36 | 10.6 | TO-252E-2 | 10 x 6.6 |
| CX470N60T | N | 1 | 600 | ±30 | 4.5 | 0.42 | 9.4 | TO-220 | 22 x 10 |
| CX470N60TF | N | 1 | 600 | ±30 | 4.5 | 0.42 | 9.4 | TO-220F | 29 x 10 |
| CX650N60T | N | 1 | 600 | ±30 | 4.5 | 0.55 | 7.3 | TO-220 | 22 x 10 |
| CX650N60TF | N | 1 | 600 | ±30 | 4.5 | 0.55 | 7.3 | TO-220F | 29 x 10 |
| CX650N60TG | N | 1 | 600 | ±30 | 4.5 | 0.55 | 7.3 | TO-252E-2 | 10 x 6.6 |
| CX650N60TN | N | 1 | 600 | ±30 | 4.5 | 0.55 | 7.3 | TO-251(IPAK) | 15.4 x 6.6 |
| CX01N10 | N | 1 | 100 | ±20 | 2.5 | 0.255 | 1.7 | SOT-23 | 2.9 x 2.4 |
| CX01N11 | N | 1 | 110 | ±20 | 2.5 | 0.25 | 1.8 | SOT-23-6L | 2.9 x 2.8 |
| CX07N60 | N | 1 | 600 | ±30 | 5 | 1 | 7 | TO-220 | 22 x 10 |
| CX07N60F | N | 1 | 600 | ±30 | 5 | 1 | 7 | TO-220F | 29 x 10 |
| CX07N65 | N | 1 | 650 | ±30 | 5 | 1.05 | 7 | TO-220 | 22 x 10 |
| CX07N65F | N | 1 | 650 | ±30 | 5 | 1 | 7 | TO-220F | 29 x 10 |
| CX12N65 | N | 1 | 650 | ±30 | 5 | 0.57 | 12 | TO-220 | 22 x 10 |
| CX12N65F | N | 1 | 650 | ±30 | 5 | 0.57 | 12 | TO-220F | 29 x 10 |
| CXMS5110 | N | 1 | 20 | ±8 | 1 | 0.04 | 3.2 | SOT-23 | 2.9 x 2.4 |
| CXMS5111 | N | 1 | 20 | ±6 | 0.85 | 0.22 | 0.9 | SOT-23 | 2.9 x 2.4 |
| CXMS5112 | N | 1 | 20 | ±6 | 0.85 | 0.22 | 0.89 | SOT-323 | 2.1 x 2.3 |
| CXMS5113 | N | 1 | 20 | ±8 | 1 | 0.027 | 3.9 | SOT-23 | 2.9 x 2.4 |
| CXMS5114 | N | 1 | 20 | ±6 | 1 | 0.21 | 0.95 | SOT-723 | 1.2 x 1.2 |
| CXMS5115 | N | 1 | 20 | ±5 | 0.85 | 0.22 | 0.71 | DFN1006-3L | 1.0 x 0.6 |
| CXMS5115B | N | 1 | 20 | ±5 | 0.85 | 0.22 | 0.71 | DFN1006-3L | 1.0 x 0.6 |
| CXMS5116 | N | 1 | 20 | ±5 | 0.85 | 0.22 | 0.66 | DFN1006-3L | 1.0 x 0.6 |
| CXMS5117 | N | 1 | 20 | ±10 | 1 | 0.42 | 0.54 | SOT-723 | 1.2 x 1.2 |
| CXMS5118 | N | 1 | 30 | ±20 | 3 | 0.043 | 4 | SOT-23 | 2.9 x 2.4 |
| CXMS5119 | N | 1 | 30 | ±20 | 2 | 0.057 | 3.1 | SOT-23 | 2.9 x 2.4 |
| CXMS5120 | N | 1 | 30 | ±20 | 3 | 0.039 | 5.7 | SOT-23-6L | 2.9 x 2.8 |
| CXMS5121 | N | 1 | 30 | ±20 | 1.5 | 1.3 | 0.25 | SOT-723 | 1.2 x 1.2 |
| CXMS5122 | N | 1 | 30 | 20 | 2 | 0.025 | 5.7 | DFN2020-6L | 2.0 x 2.0 |
| CXMS5123 | N | 1 | 30 | ±20 | 1.5 | 1.3 | 0.25 | SOT-323 | 2.1 x 2.3 |
| CXMS5124 | N | 1 | 30 | ±20 | 1.5 | 1.3 | 0.25 | SOT-523 | 1.6 x 1.6 |
| CXMS5125 | N | 1 | 20 | ±6 | 1 | 0.41 | 0.8 | SOT-523 | 1.6 x 1.6 |
| CXMS5126 | N | 1 | 20 | ±6 | 1 | 1.65 | 0.6 | SOT-523 | 1.6 x 1.6 |
| CXMS5127 | N | 1 | 45 | ±20 | 1.5 | 0.142 | 1.7 | SOT-23 | 2.9 x 2.4 |
| CXMS5128 | N | 1 | 20 | ±6 | 1 | 0.22 | 0.88 | SOT-523 | 1.6 x 1.6 |
| CXMS5129 | N | 1 | 60 | ±20 | 2 | 1.7 | 0.5 | SOT-23 | 2.9 x 2.4 |
| CXMS5130 | N | 1 | 60 | ±20 | 2 | 1.7 | 0.3 | SOT-323 | 2.1 x 2.3 |
| CXMS5131 | N | 2 | 20 | ±12 | 1 | 0.42 | 0.56 | SOT-363 | 2.1 x 2.3 |
| CXMS5132 | Dual N | 2 | 20 | ±6 | 0.85 | 0.22 | 0.89 | SOT-363 | 2.1 x 2.3 |
| CXMS5133 | Dual N | 2 | 20 | ±6 | 0.85 | 0.22 | 0.88 | SOT-563 | 1.6 x 1.6 |
| CXMS5134 | Dual N | 2 | 20 | ±10 | 1 | 0.0148 | 7 | TSSOP-8L | 3 x 6.4 |
| CXMS5135 | Dual N | 2 | 20 | ±10 | 1 | 0.0157 | 6.3 | SOT-23-6L | 2.9 x 2.8 |
| CXMS5136 | Dual N | 2 | 20 | ±10 | 1 | 0.016 | 4.8 | PDFN2.9x2.8-8L | 2.9 x 2.8 |
| CXMS5137 | Dual N | 2 | 60 | ±20 | 2 | 1.7 | 0.32 | SOT-363 | 2.1 x 2.3 |
| CXMS5138 | Dual N | 2 | 20 | ±10 | 1 | 0.022 | 5 | SOT-23-6L | 2.9 x 2.8 |
| CXMS5139 | N | 2 | 20 | ±10 | 1 | 0.016 | 6.3 | SOT-23-6 | 2.92 x 2.8 |
| CXMS5140 | Dual N | 2 | 20 | ±10 | 1 | 0.022 | 5.1 | TSSOP-8L | 3 x 6.4 |
| CXMS5141 | Dual N | 2 | 20 | ±12 | 1 | 0.018 | 6 | WLCSP-4L | 1.47 x 1.47 |
| CXMS5142 | Dual N | 2 | 20 | ±10 | 1 | 0.015 | 7 | TSSOP-8L | 3 x 6.4 |
| CXMS5143 | Dual N | 2 | 20 | ±12 | 1 | 0.013 | 6 | WLCSP-4L | 1.47 x 1.47 |
| CXMS5144 | Dual N | 2 | 12 | ±10 | 1.2 | 0.0095 | 6 | WLCSP-4L | 1.47 x 1.47 |
| CXMS5145 | Dual N | 2 | 20 | ±10 | 1 | 0.055 | 2.6 | SOT-23-6L | 2.9 x 2.8 |
| CXMS5146 | Dual N | 2 | 20 | ±12 | 1 | 0.012 | 6 | DFN2020-4L | 2.0 x 2.0 |
| CXMS5147 | Dual N | 2 | 20 | ±10 | 1 | 0.0175 | 6.3 | TSOT-23-6L | 2.9 x 2.8 |
| CXMS5148 | N | 2 | 20 | ±10 | 1 | 0.0095 | 11 | PDFN3x3-8L | 2.9 x 2.8 |
| CXMS5149 | Dual N | 2 | 30 | ±20 | 2.2 | 0.033 | 6.8 | SOP-8L | 4.9 x 6.0 |
| CXMS5150 | Dual N | 2 | 60 | ±20 | 2 | 1.7 | 0.3 | SOT-563 | 1.6 x 1.6 |
