High Input Voltage 6A PWM Converter With Adj. Soft Start CXSD62173 CXSD62173A CXSD62173C is a 6A, synchronous, step-down converter with integrated 30mW N-channel High-Side MOSFET and 12mW Low-Side MO

发布时间：2020-04-06 09:43:38 浏览次数：702 作者：嘉泰姆

摘要：High Input Voltage 6A PWM Converter With Adj. Soft Start CXSD62173 CXSD62173A CXSD62173C is a 6A, synchronous, step-down converter with integrated 30mW N-channel High-Side MOSFET and 12mW Low-Side MO

The CXSD62173 CXSD62173A CXSD62173C is a 6A, synchronous, step-down converter with integrated 30mW N-channel High-Side MOSFET and 12mW Low-Side MOSFET. The CXSD62173 CXSD62173A CXSD62173C steps down high voltage to generate low-voltage chipset or RAM supplies in notebook computers. The CXSD62173 CXSD62173A CXSD62173C provides excellent transient response and accurate DC voltage output in either PFM or PWM Mode. In Pulse Frequency Mode (PFM), the CXSD62173 CXSD62173A CXSD62173Cprovides very high efficiency over light to heavy loads with loadingmodulated switching frequencies. In PWM Mode, the converter works nearly at constant frequency for low-noise requirements. The CXSD62173 CXSD62173A CXSD62173C is equipped with accurate current-limit, output under-voltage, and output over-voltage protections, perfect for various applications. A Power-On-Reset function monitors the voltage on VLDO to prevent wrong operation during power-on. The CXSD62173 CXSD62173A CXSD62173 Chas external adjustable soft-start and built-in an integrated output discharge method for soft stop. A soft-start ramps up the output voltage with programmable timing to reduce the start-up current. A soft-stop function actively discharges the output capacitors. The CXSD62173 CXSD62173A CXSD62173C is available in TQFN4x4-23 (Power PAK).

产品特点 返回TOPpWA嘉泰姆

· Adjustable Output Voltage from +0.8V to +12V - 0.8V Reference Voltage - +1% Accuracy over Temperature pWA嘉泰姆

· Operates from An Input Battery Voltage Range of +2.7V to +28V pWA嘉泰姆

· 20mA Low Dropout Regulator (LDO) with Fixed 5. 3V Output pWA嘉泰姆

· Power-On-Reset Monitoring on LDO pin pWA嘉泰姆

· Excellent line and load transient responses pWA嘉泰姆

· PFM mode for increased light load efficiency pWA嘉泰姆

· Programmable PWM Frequency from 100kHz to 1000kHz pWA嘉泰姆

· Integrated 30mW at LDO=5V N-Channel MOSFET For High Side pWA嘉泰姆

· Integrated 12mW at LDO=5V N-Channel MOSFET For Low Side pWA嘉泰姆

· Integrated Bootstrap Forward P-CH MOSFET pWA嘉泰姆

· External Adjustable Soft-Start and Soft-Stop pWA嘉泰姆

· Selectable Forced PWM or automatic PFM/PWM mode pWA嘉泰姆

· Power Good Monitoring pWA嘉泰姆

· 70% Under-Voltage Protection pWA嘉泰姆

· 125% Over-Voltage Protection pWA嘉泰姆

· Current-Limit Protection pWA嘉泰姆

- Using Sense Low-Side MOSFET’s RDS(ON) pWA嘉泰姆

· Over-Temperature Protection pWA嘉泰姆

· TQFN-23 4mmx4mm package pWA嘉泰姆

· Lead Free and Green Device Available (RoHS Compliant)pWA嘉泰姆

应用范围 返回TOPpWA嘉泰姆

· Notebook pWA嘉泰姆

· Mother Board pWA嘉泰姆

· Table PC pWA嘉泰姆

· Hand-Held Portable pWA嘉泰姆

· AIO PC pWA嘉泰姆

· Set-top boxes pWA嘉泰姆

· LCD TVpWA嘉泰姆

技术规格书（产品PDF) 返回TOP pWA嘉泰姆

需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持</span>！</span>
pWA嘉泰姆

pWA嘉泰姆

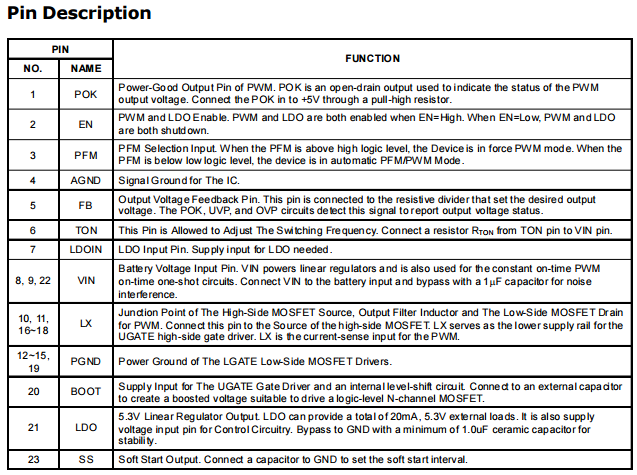

产品封装图 返回TOPpWA嘉泰姆

pWA嘉泰姆

电路原理图 返回TOPpWA嘉泰姆

pWA嘉泰姆

相关芯片选择指南返回TOP 更多同类产品.......

pWA嘉泰姆

Switching Regulator > Buck ConverterpWA嘉泰姆
Part_No pWA嘉泰姆	PackagepWA嘉泰姆	ArchitectupWA嘉泰姆	No.ofpWA嘉泰姆 PWM pWA嘉泰姆 OutpupWA嘉泰姆	DrivepWA嘉泰姆 LoutpWA嘉泰姆 (A) pWA嘉泰姆	Vin(V) pWA嘉泰姆		FmaxpWA嘉泰姆 Khz pWA嘉泰姆	Vref pWA嘉泰姆 (V) pWA嘉泰姆	R-Top (milohm) pWA嘉泰姆	R-Sync (milohm) pWA嘉泰姆	Iq (No load) (uA) pWA嘉泰姆
Part_No pWA嘉泰姆	PackagepWA嘉泰姆	ArchitectupWA嘉泰姆	No.ofpWA嘉泰姆 PWM pWA嘉泰姆 OutpupWA嘉泰姆	DrivepWA嘉泰姆 LoutpWA嘉泰姆 (A) pWA嘉泰姆	minpWA嘉泰姆	maxpWA嘉泰姆	FmaxpWA嘉泰姆 Khz pWA嘉泰姆	Vref pWA嘉泰姆 (V) pWA嘉泰姆	R-Top (milohm) pWA嘉泰姆	R-Sync (milohm) pWA嘉泰姆	Iq (No load) (uA) pWA嘉泰姆
CXSD62122pWA嘉泰姆	TQFN5x6-28pWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	5pWA嘉泰姆	4.5pWA嘉泰姆	26pWA嘉泰姆	380pWA嘉泰姆	0.8pWA嘉泰姆	50pWA嘉泰姆	20pWA嘉泰姆	1000pWA嘉泰姆
CXSD62123pWA嘉泰姆	SOP-8pWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	2pWA嘉泰姆	4.5pWA嘉泰姆	26pWA嘉泰姆	380pWA嘉泰姆	0.8pWA嘉泰姆	100pWA嘉泰姆		1000pWA嘉泰姆
CXSD62124pWA嘉泰姆	SOP-8PpWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	4pWA嘉泰姆	4.5pWA嘉泰姆	26pWA嘉泰姆	380pWA嘉泰姆	0.8pWA嘉泰姆	80pWA嘉泰姆		1000pWA嘉泰姆
CXSD62125pWA嘉泰姆	SOT23-5\|TSOT23-5pWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	1pWA嘉泰姆	2.7pWA嘉泰姆	6pWA嘉泰姆	1500pWA嘉泰姆	0.6pWA嘉泰姆	280pWA嘉泰姆	250pWA嘉泰姆	25pWA嘉泰姆
CXSD62125ApWA嘉泰姆	SOT23-5pWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	1pWA嘉泰姆	2.7pWA嘉泰姆	6pWA嘉泰姆	1500pWA嘉泰姆	0.6pWA嘉泰姆	280pWA嘉泰姆	250pWA嘉泰姆
CXSD62126pWA嘉泰姆	SOP-8pWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	3pWA嘉泰姆	4.3pWA嘉泰姆	14pWA嘉泰姆	500pWA嘉泰姆	0.8pWA嘉泰姆	70pWA嘉泰姆	70pWA嘉泰姆	500pWA嘉泰姆
CXSD62127pWA嘉泰姆	SOP-8PpWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	3pWA嘉泰姆	4.3pWA嘉泰姆	14pWA嘉泰姆	500pWA嘉泰姆	0.8pWA嘉泰姆	55pWA嘉泰姆	45pWA嘉泰姆	500pWA嘉泰姆
CXSD62128BpWA嘉泰姆	TDFN3x3-10pWA嘉泰姆			3pWA嘉泰姆	2.6pWA嘉泰姆	5.5pWA嘉泰姆	2000pWA嘉泰姆	0.8pWA嘉泰姆	110pWA嘉泰姆	110pWA嘉泰姆	460pWA嘉泰姆
CXSD62129pWA嘉泰姆	TDFN3x3-10pWA嘉泰姆	CMpWA嘉泰姆	2pWA嘉泰姆	1pWA嘉泰姆	2.7pWA嘉泰姆	6pWA嘉泰姆	1500pWA嘉泰姆	0.6pWA嘉泰姆	280pWA嘉泰姆	250pWA嘉泰姆	500pWA嘉泰姆
CXSD62129ApWA嘉泰姆	TDFN3x3-10pWA嘉泰姆	CMpWA嘉泰姆	2pWA嘉泰姆	1pWA嘉泰姆	2.7pWA嘉泰姆	6pWA嘉泰姆	1500pWA嘉泰姆	0.6pWA嘉泰姆	280pWA嘉泰姆	250pWA嘉泰姆
CXSD62130pWA嘉泰姆	TDFN2x2-6pWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	1pWA嘉泰姆	2.7pWA嘉泰姆	6pWA嘉泰姆	1500pWA嘉泰姆	0.6pWA嘉泰姆	280pWA嘉泰姆	250pWA嘉泰姆	25pWA嘉泰姆
CXSD62130ApWA嘉泰姆	TDFN2x2-6pWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	1pWA嘉泰姆	2.7pWA嘉泰姆	6pWA嘉泰姆	1500pWA嘉泰姆	0.6pWA嘉泰姆	280pWA嘉泰姆	250pWA嘉泰姆
CXSD62131pWA嘉泰姆	TDFN3x3-12pWA嘉泰姆	CMpWA嘉泰姆	2pWA嘉泰姆	1pWA嘉泰姆	2.7pWA嘉泰姆	6pWA嘉泰姆	1500pWA嘉泰姆	0.6pWA嘉泰姆	280pWA嘉泰姆	250pWA嘉泰姆	25pWA嘉泰姆
CXSD62131ApWA嘉泰姆	TDFN3x3-12pWA嘉泰姆	CMpWA嘉泰姆	2pWA嘉泰姆	1pWA嘉泰姆	2.7pWA嘉泰姆	6pWA嘉泰姆	1500pWA嘉泰姆	0.6pWA嘉泰姆	280pWA嘉泰姆	250pWA嘉泰姆
CXSD62131CpWA嘉泰姆	TDFN 3x3 12pWA嘉泰姆	CMpWA嘉泰姆	2pWA嘉泰姆	1pWA嘉泰姆	3pWA嘉泰姆	5.5pWA嘉泰姆	1500pWA嘉泰姆	0.6pWA嘉泰姆	280pWA嘉泰姆	250pWA嘉泰姆	30pWA嘉泰姆
CXSD62132pWA嘉泰姆	TQFN3x3-20pWA嘉泰姆	CMpWA嘉泰姆	3pWA嘉泰姆	2pWA嘉泰姆	2.9pWA嘉泰姆	5.5pWA嘉泰姆	1500pWA嘉泰姆	0.6pWA嘉泰姆	-pWA嘉泰姆	-pWA嘉泰姆	300pWA嘉泰姆
CXSD62133pWA嘉泰姆	TDFN2x2-8pWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	1pWA嘉泰姆	3.3pWA嘉泰姆	8pWA嘉泰姆	1500pWA嘉泰姆	0.6pWA嘉泰姆	280pWA嘉泰姆	250pWA嘉泰姆	25pWA嘉泰姆
CXSD62134pWA嘉泰姆	SOP-8pWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	2pWA嘉泰姆	4.5pWA嘉泰姆	24pWA嘉泰姆	340pWA嘉泰姆	0.925pWA嘉泰姆	110pWA嘉泰姆	110pWA嘉泰姆	1900pWA嘉泰姆
CXSD62135pWA嘉泰姆	SOP-8PpWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	3pWA嘉泰姆	4.5pWA嘉泰姆	24pWA嘉泰姆	340pWA嘉泰姆	0.925pWA嘉泰姆	110pWA嘉泰姆	110pWA嘉泰姆	1900pWA嘉泰姆
CXSD62136pWA嘉泰姆	SOP-8pWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	2pWA嘉泰姆	4.5pWA嘉泰姆	24pWA嘉泰姆	340pWA嘉泰姆	0.92pWA嘉泰姆	130pWA嘉泰姆	130pWA嘉泰姆	1900pWA嘉泰姆
CXSD62136BpWA嘉泰姆	SOP-8PpWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	2pWA嘉泰姆	4.5pWA嘉泰姆	24pWA嘉泰姆	340pWA嘉泰姆	0.92pWA嘉泰姆	130pWA嘉泰姆	130pWA嘉泰姆	1900pWA嘉泰姆
CXSD62137pWA嘉泰姆	SOP-8PpWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	3pWA嘉泰姆	4.5pWA嘉泰姆	24pWA嘉泰姆	340pWA嘉泰姆	0.92pWA嘉泰姆	85pWA嘉泰姆	85pWA嘉泰姆	1900pWA嘉泰姆
CXSD62138pWA嘉泰姆	SOP-8PpWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	4pWA嘉泰姆	4.5pWA嘉泰姆	24pWA嘉泰姆	340pWA嘉泰姆	0.8pWA嘉泰姆	85pWA嘉泰姆	85pWA嘉泰姆	1900pWA嘉泰姆
CXSD62139pWA嘉泰姆	TSOT-23-8ApWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	3pWA嘉泰姆	4.5pWA嘉泰姆	24pWA嘉泰姆	500pWA嘉泰姆	0.807pWA嘉泰姆	100pWA嘉泰姆	40pWA嘉泰姆	1000pWA嘉泰姆
CXSD62140pWA嘉泰姆	TSOT-23-8ApWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	3pWA嘉泰姆	4.5pWA嘉泰姆	24pWA嘉泰姆	500pWA嘉泰姆	0.807pWA嘉泰姆	100pWA嘉泰姆	40pWA嘉泰姆	1000pWA嘉泰姆
CXSD62141pWA嘉泰姆	TSOT-23-8ApWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	2pWA嘉泰姆	4.5pWA嘉泰姆	24pWA嘉泰姆	500pWA嘉泰姆	0.807pWA嘉泰姆	115pWA嘉泰姆	50pWA嘉泰姆	1000pWA嘉泰姆
CXSD62142pWA嘉泰姆	SOP-8PpWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	3pWA嘉泰姆	4.5pWA嘉泰姆	24pWA嘉泰姆	1300pWA嘉泰姆	0.925pWA嘉泰姆	110pWA嘉泰姆	110pWA嘉泰姆	1900pWA嘉泰姆
CXSD62143pWA嘉泰姆	SOP-8pWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	2pWA嘉泰姆	4.5pWA嘉泰姆	24pWA嘉泰姆	340pWA嘉泰姆	0.925pWA嘉泰姆	110pWA嘉泰姆	110pWA嘉泰姆	1900pWA嘉泰姆
CXSD62144pWA嘉泰姆	SOP-8PpWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	3pWA嘉泰姆	4.5pWA嘉泰姆	24pWA嘉泰姆	340pWA嘉泰姆	0.925pWA嘉泰姆	110pWA嘉泰姆	110pWA嘉泰姆	1900pWA嘉泰姆
CXSD62145pWA嘉泰姆	TSOT-23-8ApWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	2pWA嘉泰姆	4.5pWA嘉泰姆	24pWA嘉泰姆	500pWA嘉泰姆	0.807pWA嘉泰姆	115pWA嘉泰姆	50pWA嘉泰姆	500pWA嘉泰姆
CXSD62146pWA嘉泰姆	TSOT-23-8ApWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	3pWA嘉泰姆	4.5pWA嘉泰姆	24pWA嘉泰姆	500pWA嘉泰姆	0.807pWA嘉泰姆	100pWA嘉泰姆	40pWA嘉泰姆	500pWA嘉泰姆
CXSD62147pWA嘉泰姆	TSOT-23-6pWA嘉泰姆	COTpWA嘉泰姆	1pWA嘉泰姆	2pWA嘉泰姆	4.6pWA嘉泰姆	16pWA嘉泰姆	500pWA嘉泰姆	0.6pWA嘉泰姆	110pWA嘉泰姆	100pWA嘉泰姆	50pWA嘉泰姆
CXSD62148pWA嘉泰姆	TSOT-23-6pWA嘉泰姆	COTpWA嘉泰姆	1pWA嘉泰姆	2pWA嘉泰姆	4.6pWA嘉泰姆	16pWA嘉泰姆	500pWA嘉泰姆	0.8pWA嘉泰姆	95pWA嘉泰姆	40pWA嘉泰姆	50pWA嘉泰姆
CXSD62149pWA嘉泰姆	TSOT-23-6pWA嘉泰姆	COTpWA嘉泰姆	1pWA嘉泰姆	3pWA嘉泰姆	4.6pWA嘉泰姆	16pWA嘉泰姆	500pWA嘉泰姆	0.8pWA嘉泰姆	90pWA嘉泰姆	35pWA嘉泰姆	50pWA嘉泰姆
CXSD62150pWA嘉泰姆	TSOT-23-8ApWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	2.5pWA嘉泰姆	4.5pWA嘉泰姆	24pWA嘉泰姆	500pWA嘉泰姆	0.807pWA嘉泰姆	140pWA嘉泰姆	60pWA嘉泰姆	1000pWA嘉泰姆
CXSD62151pWA嘉泰姆	TSOT-23-6,TDFN2x2-6pWA嘉泰姆	COTpWA嘉泰姆	1pWA嘉泰姆	3pWA嘉泰姆	4.6pWA嘉泰姆	16pWA嘉泰姆	500pWA嘉泰姆	0.6pWA嘉泰姆	110pWA嘉泰姆	80pWA嘉泰姆	50pWA嘉泰姆
CXSD62152pWA嘉泰姆	SOP8P\|TDFN3x3-10pWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	2pWA嘉泰姆	2.5pWA嘉泰姆	6pWA嘉泰姆	1000pWA嘉泰姆	0.8pWA嘉泰姆	85pWA嘉泰姆	75pWA嘉泰姆	460pWA嘉泰姆
CXSD62153pWA嘉泰姆	SOP8P\|TDFN3x3-10pWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	3.2pWA嘉泰姆	2.5pWA嘉泰姆	6pWA嘉泰姆	1000pWA嘉泰姆	0.8pWA嘉泰姆	85pWA嘉泰姆	75pWA嘉泰姆	460pWA嘉泰姆
CXSD62154pWA嘉泰姆	SOP8P\|TDFN3x3-10pWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	4pWA嘉泰姆	2.5pWA嘉泰姆	6pWA嘉泰姆	500pWA嘉泰姆	0.8pWA嘉泰姆	85pWA嘉泰姆	75pWA嘉泰姆	460pWA嘉泰姆
CXSD62155pWA嘉泰姆	SOP-8PpWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	5pWA嘉泰姆	2.5pWA嘉泰姆	6pWA嘉泰姆	1000pWA嘉泰姆	0.6pWA嘉泰姆	65pWA嘉泰姆	55pWA嘉泰姆	460pWA嘉泰姆
CXSD62156pWA嘉泰姆	TDFN 2x2 12pWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	3.5pWA嘉泰姆	2.7pWA嘉泰姆	5.5pWA嘉泰姆	1320pWA嘉泰姆	0.6pWA嘉泰姆	70pWA嘉泰姆	60pWA嘉泰姆	40pWA嘉泰姆
CXSD62157pWA嘉泰姆	SOP-8pWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	2pWA嘉泰姆	4.5pWA嘉泰姆	24pWA嘉泰姆	340pWA嘉泰姆	0.8pWA嘉泰姆	110pWA嘉泰姆	110pWA嘉泰姆	1900pWA嘉泰姆
CXSD62158pWA嘉泰姆	SOP-8PpWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	3pWA嘉泰姆	4.5pWA嘉泰姆	24pWA嘉泰姆	340pWA嘉泰姆	0.8pWA嘉泰姆	110pWA嘉泰姆	110pWA嘉泰姆	1900pWA嘉泰姆
CXSD62159pWA嘉泰姆	TDFN3x3-10pWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	2pWA嘉泰姆	4.5pWA嘉泰姆	24pWA嘉泰姆	340pWA嘉泰姆	0.8pWA嘉泰姆	110pWA嘉泰姆	110pWA嘉泰姆	1900pWA嘉泰姆
CXSD62160pWA嘉泰姆	TDFN3x3-10pWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	3pWA嘉泰姆	4.5pWA嘉泰姆	24pWA嘉泰姆	340pWA嘉泰姆	0.8pWA嘉泰姆	110pWA嘉泰姆	110pWA嘉泰姆	1900pWA嘉泰姆
CXSD62161pWA嘉泰姆	TSOT-23-8ApWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	2pWA嘉泰姆	4.5pWA嘉泰姆	24pWA嘉泰姆	500pWA嘉泰姆	0.791pWA嘉泰姆	115pWA嘉泰姆	50pWA嘉泰姆	1000pWA嘉泰姆
CXSD62162pWA嘉泰姆	TSOT-23-8ApWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	3pWA嘉泰姆	4.5pWA嘉泰姆	24pWA嘉泰姆	500pWA嘉泰姆	0.791pWA嘉泰姆	100pWA嘉泰姆	40pWA嘉泰姆	1000pWA嘉泰姆
CXSD62162SpWA嘉泰姆	TSOT-23-8ApWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	3pWA嘉泰姆	7pWA嘉泰姆	24pWA嘉泰姆	500pWA嘉泰姆	0.791pWA嘉泰姆	100pWA嘉泰姆	40pWA嘉泰姆	1000pWA嘉泰姆
CXSD62163pWA嘉泰姆	TDFN 2x2-6pWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	1pWA嘉泰姆	3pWA嘉泰姆	5.5pWA嘉泰姆	1500pWA嘉泰姆	0.6pWA嘉泰姆	260pWA嘉泰姆	230pWA嘉泰姆	30pWA嘉泰姆
CXSD62164pWA嘉泰姆	SOT23-5,TSOT23-5ApWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	1.2pWA嘉泰姆	3pWA嘉泰姆	5.5pWA嘉泰姆	1500pWA嘉泰姆	0.6pWA嘉泰姆	260pWA嘉泰姆	230pWA嘉泰姆	30pWA嘉泰姆
CXSD62164ApWA嘉泰姆	SOT23-5,TSOT23-5ApWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	1pWA嘉泰姆	3pWA嘉泰姆	5.5pWA嘉泰姆	1500pWA嘉泰姆	0.6pWA嘉泰姆	260pWA嘉泰姆	230pWA嘉泰姆	30pWA嘉泰姆
CXSD62164CpWA嘉泰姆	SOT23-5,TSOT23-5ApWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	1pWA嘉泰姆	3pWA嘉泰姆	5.5pWA嘉泰姆	1500pWA嘉泰姆	0.6pWA嘉泰姆	260pWA嘉泰姆	230pWA嘉泰姆	30pWA嘉泰姆
CXSD62165pWA嘉泰姆	SOT23-5,TSOT23-5ApWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	1.2pWA嘉泰姆	3pWA嘉泰姆	5.5pWA嘉泰姆	1500pWA嘉泰姆	0.6pWA嘉泰姆	260pWA嘉泰姆	230pWA嘉泰姆	30pWA嘉泰姆
CXSD62165CpWA嘉泰姆	SOT23-5,TSOT23-5ApWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	1pWA嘉泰姆	3pWA嘉泰姆	5.5pWA嘉泰姆	1500pWA嘉泰姆	0.6pWA嘉泰姆	260pWA嘉泰姆	230pWA嘉泰姆	30pWA嘉泰姆
CXSD62166pWA嘉泰姆	TSOT-23-8ApWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	2pWA嘉泰姆	4.5pWA嘉泰姆	24pWA嘉泰姆	800pWA嘉泰姆	0.807pWA嘉泰姆	115pWA嘉泰姆	50pWA嘉泰姆	1000pWA嘉泰姆
CXSD62167pWA嘉泰姆	TSOT-23-8ApWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	3pWA嘉泰姆	4.5pWA嘉泰姆	24pWA嘉泰姆	800pWA嘉泰姆	0.807pWA嘉泰姆	100pWA嘉泰姆	40pWA嘉泰姆	1000pWA嘉泰姆
CXSD62168pWA嘉泰姆	TSOT-23-8ApWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	2pWA嘉泰姆	4.5pWA嘉泰姆	24pWA嘉泰姆	500pWA嘉泰姆	0.807pWA嘉泰姆	115pWA嘉泰姆	50pWA嘉泰姆	1000pWA嘉泰姆
CXSD62169pWA嘉泰姆	TDFN5x5-16pWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	4pWA嘉泰姆	4.5pWA嘉泰姆	26pWA嘉泰姆	380pWA嘉泰姆	0.8pWA嘉泰姆	22pWA嘉泰姆	-pWA嘉泰姆	1000pWA嘉泰姆
CXSD62170pWA嘉泰姆	TDFN 2x2-8pWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	0.8pWA嘉泰姆	4.5pWA嘉泰姆	5.5pWA嘉泰姆	1700 ~ 2300pWA嘉泰姆	0.6pWA嘉泰姆			300pWA嘉泰姆
CXSD62171pWA嘉泰姆	TQFN 4x4 22pWA嘉泰姆	COTpWA嘉泰姆	1pWA嘉泰姆	8pWA嘉泰姆	2.7pWA嘉泰姆	28pWA嘉泰姆	100~1000pWA嘉泰姆	0.8pWA嘉泰姆	30pWA嘉泰姆	9pWA嘉泰姆	700pWA嘉泰姆
CXSD62172pWA嘉泰姆	TQFN4x4-23pWA嘉泰姆	COTpWA嘉泰姆	1pWA嘉泰姆	6pWA嘉泰姆	2.7pWA嘉泰姆	28pWA嘉泰姆	100~1000pWA嘉泰姆	0.8pWA嘉泰姆	30pWA嘉泰姆	9pWA嘉泰姆	750pWA嘉泰姆
CXSD62172ApWA嘉泰姆	TQFN 4x4 23pWA嘉泰姆	COTpWA嘉泰姆	1pWA嘉泰姆	8pWA嘉泰姆	2.7pWA嘉泰姆	28pWA嘉泰姆	100~1000pWA嘉泰姆	0.8pWA嘉泰姆	30pWA嘉泰姆	9pWA嘉泰姆	700pWA嘉泰姆
CXSD62172BpWA嘉泰姆	TQFN 4x4 23pWA嘉泰姆	COTpWA嘉泰姆	1pWA嘉泰姆	8pWA嘉泰姆	2.7pWA嘉泰姆	28pWA嘉泰姆	100~1000pWA嘉泰姆	0.8pWA嘉泰姆	30pWA嘉泰姆	9pWA嘉泰姆	700pWA嘉泰姆
CXSD62172CpWA嘉泰姆	TQFN 4x4 23pWA嘉泰姆	COTpWA嘉泰姆	1pWA嘉泰姆	10pWA嘉泰姆	2.7pWA嘉泰姆	28pWA嘉泰姆	100~1000pWA嘉泰姆	0.8pWA嘉泰姆	27pWA嘉泰姆	7pWA嘉泰姆	700pWA嘉泰姆
CXSD62172CApWA嘉泰姆	TQFN 4x4 23pWA嘉泰姆	COTpWA嘉泰姆	1pWA嘉泰姆	10pWA嘉泰姆	2.7pWA嘉泰姆	28pWA嘉泰姆	100~1000pWA嘉泰姆	0.8pWA嘉泰姆	27pWA嘉泰姆	7pWA嘉泰姆	700pWA嘉泰姆
CXSD62172DpWA嘉泰姆	TQFN 4x4 23pWA嘉泰姆	COTpWA嘉泰姆	1pWA嘉泰姆	10pWA嘉泰姆	2.7pWA嘉泰姆	28pWA嘉泰姆	100~1000pWA嘉泰姆	0.8pWA嘉泰姆	27pWA嘉泰姆	7pWA嘉泰姆	700pWA嘉泰姆
CXSD62172DApWA嘉泰姆	TQFN 4x4 23pWA嘉泰姆	COTpWA嘉泰姆	1pWA嘉泰姆	10pWA嘉泰姆	2.7pWA嘉泰姆	28pWA嘉泰姆	100~1000pWA嘉泰姆	0.8pWA嘉泰姆	27pWA嘉泰姆	7pWA嘉泰姆	700pWA嘉泰姆
CXSD62172EpWA嘉泰姆	TQFN 4x4 23pWA嘉泰姆	COTpWA嘉泰姆	1pWA嘉泰姆	8pWA嘉泰姆	2.7pWA嘉泰姆	28pWA嘉泰姆	100~1000pWA嘉泰姆	0.8pWA嘉泰姆	30pWA嘉泰姆	9pWA嘉泰姆	25pWA嘉泰姆
CXSD62173pWA嘉泰姆	TQFN 4x4 23pWA嘉泰姆	COTpWA嘉泰姆	1pWA嘉泰姆	6pWA嘉泰姆	2.7pWA嘉泰姆	28pWA嘉泰姆	100~1000pWA嘉泰姆	0.8pWA嘉泰姆	30pWA嘉泰姆	12pWA嘉泰姆	700pWA嘉泰姆
CXSD62173ApWA嘉泰姆	TQFN 4x4 23pWA嘉泰姆	COTpWA嘉泰姆	1pWA嘉泰姆	6pWA嘉泰姆	2.7pWA嘉泰姆	28pWA嘉泰姆	100~1000pWA嘉泰姆	0.8pWA嘉泰姆	30pWA嘉泰姆	12pWA嘉泰姆	700pWA嘉泰姆
CXSD62173CpWA嘉泰姆	TQFN 4x4 23pWA嘉泰姆	COTpWA嘉泰姆	1pWA嘉泰姆	6pWA嘉泰姆	2.7pWA嘉泰姆	28pWA嘉泰姆	100~1000pWA嘉泰姆	0.8pWA嘉泰姆	30pWA嘉泰姆	12pWA嘉泰姆	700pWA嘉泰姆
CXSD62173DpWA嘉泰姆	TQFN 4x4 23pWA嘉泰姆	COTpWA嘉泰姆	1pWA嘉泰姆	6pWA嘉泰姆	2.7pWA嘉泰姆	28pWA嘉泰姆	100~1000pWA嘉泰姆	0.8pWA嘉泰姆	30pWA嘉泰姆	12pWA嘉泰姆	700pWA嘉泰姆
CXSD62173EpWA嘉泰姆	TQFN 4x4 23pWA嘉泰姆	COTpWA嘉泰姆	1pWA嘉泰姆	8pWA嘉泰姆	2.7pWA嘉泰姆	28pWA嘉泰姆	100~1000pWA嘉泰姆	0.8pWA嘉泰姆	30pWA嘉泰姆	12pWA嘉泰姆	25pWA嘉泰姆
CXSD62174pWA嘉泰姆	TQFN5x5 30pWA嘉泰姆	COTpWA嘉泰姆	1pWA嘉泰姆	12pWA嘉泰姆	2.7pWA嘉泰姆	28pWA嘉泰姆	300~1000pWA嘉泰姆	0.8pWA嘉泰姆	9.7pWA嘉泰姆	5.2pWA嘉泰姆	700pWA嘉泰姆
CXSD62174ApWA嘉泰姆	TQFN5x5 30pWA嘉泰姆	COTpWA嘉泰姆	1pWA嘉泰姆	12pWA嘉泰姆	2.7pWA嘉泰姆	28pWA嘉泰姆	300~1000pWA嘉泰姆	0.8pWA嘉泰姆	14.6pWA嘉泰姆	7.8pWA嘉泰姆	750pWA嘉泰姆
CXSD62175pWA嘉泰姆	TQFN5x6-28pWA嘉泰姆	COTpWA嘉泰姆	1pWA嘉泰姆	8pWA嘉泰姆	3pWA嘉泰姆	25pWA嘉泰姆	500pWA嘉泰姆	0.75pWA嘉泰姆	12pWA嘉泰姆	12pWA嘉泰姆	400pWA嘉泰姆
CXSD62176pWA嘉泰姆	TDFN3x3-10pWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	3pWA嘉泰姆	2.6pWA嘉泰姆	6pWA嘉泰姆	1000pWA嘉泰姆	0.6pWA嘉泰姆	65pWA嘉泰姆	55pWA嘉泰姆	460pWA嘉泰姆
CXSD62176EpWA嘉泰姆	TDFN3x3-10pWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	3pWA嘉泰姆	2.6pWA嘉泰姆	5.5pWA嘉泰姆	1000pWA嘉泰姆	0.6pWA嘉泰姆	65pWA嘉泰姆	55pWA嘉泰姆	65pWA嘉泰姆
CXSD62177pWA嘉泰姆	TDFN3x3-10pWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	3pWA嘉泰姆	2.6pWA嘉泰姆	6pWA嘉泰姆	1000pWA嘉泰姆	0.6pWA嘉泰姆	75pWA嘉泰姆	55pWA嘉泰姆	460pWA嘉泰姆
CXSD62177ApWA嘉泰姆	TDFN3x3 10pWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	3pWA嘉泰姆	2.6pWA嘉泰姆	6pWA嘉泰姆	1000pWA嘉泰姆	0.8pWA嘉泰姆	75pWA嘉泰姆	55pWA嘉泰姆	460pWA嘉泰姆
CXSD62177BpWA嘉泰姆	TDFN3x3 10pWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	3pWA嘉泰姆	2.6pWA嘉泰姆	6pWA嘉泰姆	1000pWA嘉泰姆	0.8pWA嘉泰姆	75pWA嘉泰姆	55pWA嘉泰姆	460pWA嘉泰姆
CXSD62178pWA嘉泰姆	TQFN3x3-16pWA嘉泰姆	COTpWA嘉泰姆	1pWA嘉泰姆	8pWA嘉泰姆	6pWA嘉泰姆	28pWA嘉泰姆	500pWA嘉泰姆	0.6pWA嘉泰姆	24pWA嘉泰姆	14pWA嘉泰姆	80pWA嘉泰姆
CXSD62179pWA嘉泰姆	TSOT23-6pWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	1pWA嘉泰姆	2.7pWA嘉泰姆	5.5pWA嘉泰姆	1500pWA嘉泰姆	0.6pWA嘉泰姆	280pWA嘉泰姆	250pWA嘉泰姆	25pWA嘉泰姆
CXSD62180pWA嘉泰姆	SOT23-6, TDFN2x2 8pWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	3pWA嘉泰姆	2.6pWA嘉泰姆	6pWA嘉泰姆	1000pWA嘉泰姆	0.6pWA嘉泰姆	110pWA嘉泰姆	80pWA嘉泰姆	50pWA嘉泰姆
CXSD62181pWA嘉泰姆	TDFN3x3-10pWA嘉泰姆	CMpWA嘉泰姆	1pWA嘉泰姆	3pWA嘉泰姆	4.5pWA嘉泰姆	24pWA嘉泰姆	600pWA嘉泰姆	0.8pWA嘉泰姆	70pWA嘉泰姆	70pWA嘉泰姆	400pWA嘉泰姆
CXSD62182pWA嘉泰姆	TQNF4x4 32pWA嘉泰姆	COTpWA嘉泰姆	1pWA嘉泰姆	8pWA嘉泰姆	4.5pWA嘉泰姆	26pWA嘉泰姆	400~550pWA嘉泰姆	0.75pWA嘉泰姆	75pWA嘉泰姆	75pWA嘉泰姆	230pWA嘉泰姆
CXSD62183pWA嘉泰姆	TQN 4x4 26pWA嘉泰姆	COTpWA嘉泰姆	2pWA嘉泰姆	8pWA嘉泰姆	4.5pWA嘉泰姆	25pWA嘉泰姆	400~1400pWA嘉泰姆 (VDDQ)pWA嘉泰姆 1000(VPP)pWA嘉泰姆	0.6V for VPPSMBUS for VDDQ=1.0V~1.2VpWA嘉泰姆	20(VDDQ)pWA嘉泰姆 200(VPP)pWA嘉泰姆	7(VDDQ)pWA嘉泰姆 200(VPP)pWA嘉泰姆	270pWA嘉泰姆
