产品概述 返回TOPh0S嘉泰姆
The CXAR4178 is a stereo, fixed gain, single supply, and
cap-free headphone driver, which is available in a WLCSP-
16 packages.
The CXAR4178 is ground-reference output, and no need
the output capacitors for DC blocking. The advantages of
eliminating the output capacitor are saving the cost, eliminating
component height, and improving the low frequency
response.
The internal selectable gain (0dB or 6dB) can minimize
the external component counts and save the PCB space.
High PSRR provides increased immunity to noise and
RF rectification.
The CXAR4178 is capable of driving 25mW at 3.6V into 16W
load and provides thermal protection
产品特点 返回TOPh0S嘉泰姆
· Operating Voltage: 2.4V~5.5V h0S嘉泰姆
· Supply Current
- I
DD
=2.1mA at VDD
=3.6V h0S嘉泰姆
· Low Shutdown Current h0S嘉泰姆
- I
DD
=0.7mA at VDD
=3.6V h0S嘉泰姆
· Ground Reference Output h0S嘉泰姆
- No Output Capacitor Required (for DC Blocking) h0S嘉泰姆
- Save the PCB Space h0S嘉泰姆
- Reduce the BOM Costs h0S嘉泰姆
- Improve the Low Frequency Response h0S嘉泰姆
· Output Power
25mW/Ch into 16W at VDD
=3.6V,THD+N=0.04%
20mW/Ch into 32W at VDD
=3.6V,THD+N=0.02% h0S嘉泰姆
· High PSRR: 90dB at 217Hz
· Fast Start-Up Time: 4ms h0S嘉泰姆
· Integrate the De-pop Circuitry h0S嘉泰姆
· Thermal Protection h0S嘉泰姆
· Surface-Mount Packaging
WLCSP1.6x1.6-16h0S嘉泰姆
应用范围 返回TOPh0S嘉泰姆
· Handests h0S嘉泰姆
· PDAs h0S嘉泰姆
· Portable Multimedia Devices h0S嘉泰姆
· Notebooksh0S嘉泰姆
技术规格书（产品PDF) 返回TOP h0S嘉泰姆
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持</span>！</span>
h0S嘉泰姆
h0S嘉泰姆

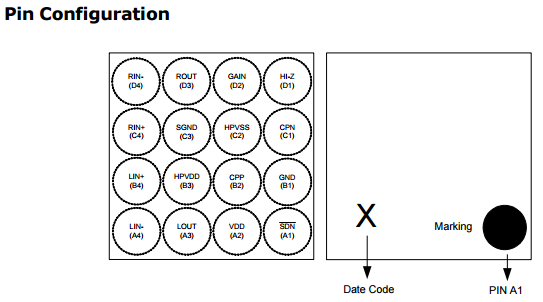

产品封装图 返回TOPh0S嘉泰姆
h0S嘉泰姆
电路原理图 返回TOPh0S嘉泰姆
h0S嘉泰姆
h0S嘉泰姆
h0S嘉泰姆
Audio Products > Headphone Amplifierh0S嘉泰姆 |
Part_No h0S嘉泰姆 | Package h0S嘉泰姆 | VDD h0S嘉泰姆 Voltage h0S嘉泰姆 (V) h0S嘉泰姆 | IDD, Supply Current (mA) h0S嘉泰姆 | TSTART-UP(uS) h0S嘉泰姆 | Output h0S嘉泰姆 Power h0S嘉泰姆 RL=32Wh0S嘉泰姆 (mW) h0S嘉泰姆 | Output h0S嘉泰姆 Power RL=2.5KWh0S嘉泰姆 (mW) h0S嘉泰姆 | Total Harmonic Distortion Plus Noise (%) h0S嘉泰姆 | Power Supply Rejection Ratio (dB) h0S嘉泰姆 | Output Noise (uV) h0S嘉泰姆 | Signal to Noise Ratio (dB) h0S嘉泰姆 | Output Offset Voltage (mV) h0S嘉泰姆 |
minh0S嘉泰姆 | maxh0S嘉泰姆 |
CXAR4173h0S嘉泰姆 | TSSOP14/SOP14h0S嘉泰姆 | 3h0S嘉泰姆 | 3.6h0S嘉泰姆 | 10h0S嘉泰姆 | 500h0S嘉泰姆 | 20h0S嘉泰姆 | 2.1h0S嘉泰姆 | 0.001h0S嘉泰姆 | 80h0S嘉泰姆 | 8h0S嘉泰姆 | 108h0S嘉泰姆 | 5h0S嘉泰姆 |
CXAR4174h0S嘉泰姆 | TSSOP14/SOP14h0S嘉泰姆 | 2.3h0S嘉泰姆 | 5.5h0S嘉泰姆 | 10h0S嘉泰姆 | 500h0S嘉泰姆 | 40h0S嘉泰姆 | 2.1h0S嘉泰姆 | 0.001h0S嘉泰姆 | 80h0S嘉泰姆 | 8h0S嘉泰姆 | 108h0S嘉泰姆 | 5h0S嘉泰姆 |
CXAR4175h0S嘉泰姆 | TQFN4x4-20A/h0S嘉泰姆 TSSOP16/SOP14h0S嘉泰姆 | 2.3h0S嘉泰姆 | 4.5h0S嘉泰姆 | 5h0S嘉泰姆 | 500h0S嘉泰姆 | NAh0S嘉泰姆 | 2.1h0S嘉泰姆 | 0.002h0S嘉泰姆 | 90h0S嘉泰姆 | 10h0S嘉泰姆 | 105h0S嘉泰姆 | 8h0S嘉泰姆 |
CXAR4176h0S嘉泰姆 | TQFN4x4-20B/TSSOP-16h0S嘉泰姆 | 2.3h0S嘉泰姆 | 4.5h0S嘉泰姆 | 5h0S嘉泰姆 | 16000h0S嘉泰姆 | NAh0S嘉泰姆 | 2.1h0S嘉泰姆 | 0.003h0S嘉泰姆 | 80h0S嘉泰姆 | 15h0S嘉泰姆 | 102h0S嘉泰姆 | 8h0S嘉泰姆 |
CXAR4177h0S嘉泰姆 | TQFN4x4-20B/TSSOP-16/TQFN3x3-16h0S嘉泰姆 | 1.8h0S嘉泰姆 | 5.5h0S嘉泰姆 | 2h0S嘉泰姆 | 120h0S嘉泰姆 | 150h0S嘉泰姆 | NAh0S嘉泰姆 | 0.03h0S嘉泰姆 | 82h0S嘉泰姆 | 15h0S嘉泰姆 | 95h0S嘉泰姆 | 5h0S嘉泰姆 |
CXAR4177Ah0S嘉泰姆 | TSSOP-16h0S嘉泰姆 |
|
|
|
|
|
|
|
|
|
|
|
CXAR4178h0S嘉泰姆 | WLCSP-16h0S嘉泰姆 | 2.4h0S嘉泰姆 | 5.5h0S嘉泰姆 | 2.5h0S嘉泰姆 | 4000h0S嘉泰姆 | 22h0S嘉泰姆 | NAh0S嘉泰姆 | 0.02h0S嘉泰姆 | 90h0S嘉泰姆 | 7h0S嘉泰姆 | 95h0S嘉泰姆 | 0.5h0S嘉泰姆 |
CXAR4179h0S嘉泰姆 | WLCSP2x2-16h0S嘉泰姆 | 1.8h0S嘉泰姆 | 4.5h0S嘉泰姆 | 5h0S嘉泰姆 | 120h0S嘉泰姆 | 145h0S嘉泰姆 | NAh0S嘉泰姆 | 0.02h0S嘉泰姆 | 75h0S嘉泰姆 | 15h0S嘉泰姆 | 100h0S嘉泰姆 | 5h0S嘉泰姆 |
CXAR4180h0S嘉泰姆 | WLCSP1.6x1.6-12/TDFN3x3-12h0S嘉泰姆 | 2.3h0S嘉泰姆 | 5.5h0S嘉泰姆 | 1h0S嘉泰姆 | 4000h0S嘉泰姆 | 60h0S嘉泰姆 | NAh0S嘉泰姆 | 0.03h0S嘉泰姆 | 80h0S嘉泰姆 | 27h0S嘉泰姆 | 95h0S嘉泰姆 | 8h0S嘉泰姆 |
CXAR4181h0S嘉泰姆 | WLCSP1.6xh0S嘉泰姆 1.6-12h0S嘉泰姆 | 2.3h0S嘉泰姆 | 5.5h0S嘉泰姆 | 1h0S嘉泰姆 | 4000h0S嘉泰姆 | 60h0S嘉泰姆 | NAh0S嘉泰姆 | 0.03h0S嘉泰姆 | 80h0S嘉泰姆 | 27h0S嘉泰姆 | 95h0S嘉泰姆 | 8h0S嘉泰姆 |
CXAR4182h0S嘉泰姆 | MSOP-10Ph0S嘉泰姆 | 2.3h0S嘉泰姆 | 5.5h0S嘉泰姆 | 10h0S嘉泰姆 | 500h0S嘉泰姆 | 60h0S嘉泰姆 | 2.1h0S嘉泰姆 | 0.001h0S嘉泰姆 | 80h0S嘉泰姆 | 8h0S嘉泰姆 | 108h0S嘉泰姆 | 5h0S嘉泰姆 |
