产品概述 返回TOPH7S嘉泰姆
The CXAS42167 is a dual, low on-resistance, low voltage, bidirectional, single-pole/double-throw (SPDT) CMOS analog switch designed to operate from a single 1.8V to 5.5V power supply. Targeted applications include battery powered equipment that benefit from low RON(0.5Ω) and fast switching speeds (tON = 50ns, tOFF = 15ns).H7S嘉泰姆
The on resistance profile is very flat over the full analog signal range. This ensures excellent linearity and low distortion when switching audio signals.H7S嘉泰姆
The CXAS42167 is a committed dual single-pole/double-throw (SPDT) that consist of two normally open (NO) and two normally close (NC) switches. This configuration can be used as a dual 2-to-1 multiplexer.H7S嘉泰姆
CXAS42167 is available in Green TDFN-3×3-10L and MSOP-10 packages.H7S嘉泰姆
产品特点 返回TOPH7S嘉泰姆
• Low Voltage Operation: 1.8V to 5.5V
• Low On-Resistance: 0.5Ω (TYP)
• Low On-Resistance Flatness
• -3dB Bandwidth: 15MHz
• Fast Switching Times
tON 50ns
tOFF 15ns
• Rail-to-Rail Operation
• Typical Power Consumption (< 0.01μW)
• TTL/CMOS Compatible
• Microsize PackagesH7S嘉泰姆
应用范围 返回TOPH7S嘉泰姆
Battery-powered, Handheld, and Portable Equipment
Cellular/Mobile Phones
Laptops, Notebooks, Palmtops
Communication Systems
Sample-and-Hold Circuits
Audio Signal Routing
Audio and Video Switching
Portable Test and Measurement
Medical EquipmentH7S嘉泰姆
技术规格书（产品PDF) 返回TOP H7S嘉泰姆
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持</span>！</span>
H7S嘉泰姆
H7S嘉泰姆

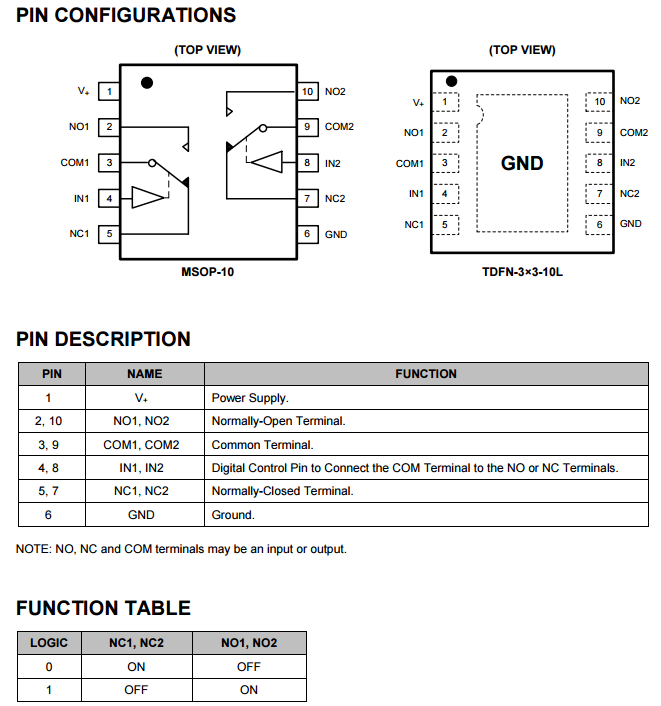

产品封装图 返回TOPH7S嘉泰姆
H7S嘉泰姆
电路原理图 返回TOPH7S嘉泰姆
H7S嘉泰姆
H7S嘉泰姆
H7S嘉泰姆
模拟信号开关</span>H7S嘉泰姆 |
Part H7S嘉泰姆 NumberH7S嘉泰姆 | CHH7S嘉泰姆 | TypeH7S嘉泰姆 | VCCH7S嘉泰姆 (Min)(V)H7S嘉泰姆 | VCCH7S嘉泰姆 (Max)(V)H7S嘉泰姆 | IqH7S嘉泰姆 (μA)H7S嘉泰姆 | RON H7S嘉泰姆 (Ω)H7S嘉泰姆 | -3dB H7S嘉泰姆 BandwiH7S嘉泰姆 dth(MHz)H7S嘉泰姆 | VINHH7S嘉泰姆 (Min) H7S嘉泰姆 | VINLH7S嘉泰姆 (Max)V H7S嘉泰姆 | tONH7S嘉泰姆 (ns)H7S嘉泰姆 | tOFF H7S嘉泰姆 (ns)H7S嘉泰姆 | PackageH7S嘉泰姆 |
CXAS42160H7S嘉泰姆 | 2H7S嘉泰姆 | 01:02H7S嘉泰姆 | 1.8H7S嘉泰姆 | 5.5H7S嘉泰姆 | 1H7S嘉泰姆 | 4.5H7S嘉泰姆 | 300H7S嘉泰姆 | 1.6H7S嘉泰姆 | 0.5H7S嘉泰姆 | 70H7S嘉泰姆 | 20H7S嘉泰姆 | TQFN-2.1x1.6-10LH7S嘉泰姆 |
CXAS42161H7S嘉泰姆 | 2H7S嘉泰姆 | 01:02H7S嘉泰姆 | 1.8H7S嘉泰姆 | 4.3H7S嘉泰姆 | 1H7S嘉泰姆 | 6H7S嘉泰姆 | 300H7S嘉泰姆 | 1.6H7S嘉泰姆 | 0.5H7S嘉泰姆 | 20H7S嘉泰姆 | 20H7S嘉泰姆 | UTQFN-1.8x1.4-10LH7S嘉泰姆 |
CXAS42162H7S嘉泰姆 | 2H7S嘉泰姆 | 01:02H7S嘉泰姆 | 1.8H7S嘉泰姆 | 4.2H7S嘉泰姆 | 1H7S嘉泰姆 | 0.4H7S嘉泰姆 | 40H7S嘉泰姆 | 1.6H7S嘉泰姆 | 0.5H7S嘉泰姆 | 96H7S嘉泰姆 | 16H7S嘉泰姆 | TQFN-2.1x1.6-10LH7S嘉泰姆 |
CXAS42163H7S嘉泰姆 | 2H7S嘉泰姆 | 01:02H7S嘉泰姆 | 1.8H7S嘉泰姆 | 4.2H7S嘉泰姆 | 1H7S嘉泰姆 | 0.4H7S嘉泰姆 | 40H7S嘉泰姆 | 1.6H7S嘉泰姆 | 0.5H7S嘉泰姆 | 88H7S嘉泰姆 | 16H7S嘉泰姆 | TQFN-1.8x1.4-10LH7S嘉泰姆 |
CXAS42164H7S嘉泰姆 | 1H7S嘉泰姆 | 01:02H7S嘉泰姆 | 1.8H7S嘉泰姆 | 5.5H7S嘉泰姆 | 1H7S嘉泰姆 | 2.5H7S嘉泰姆 | 120H7S嘉泰姆 | 2.4H7S嘉泰姆 | 0.8H7S嘉泰姆 | 11H7S嘉泰姆 | 30H7S嘉泰姆 | SC70-6H7S嘉泰姆 |
CXAS42165H7S嘉泰姆 | 2H7S嘉泰姆 | 01:02H7S嘉泰姆 | 1.8H7S嘉泰姆 | 5.5H7S嘉泰姆 | 1H7S嘉泰姆 | 2.5H7S嘉泰姆 | 120H7S嘉泰姆 | 2.4H7S嘉泰姆 | 0.8H7S嘉泰姆 | 11H7S嘉泰姆 | 8H7S嘉泰姆 | MSOP-10H7S嘉泰姆 |
CXAS42166H7S嘉泰姆 | 1H7S嘉泰姆 | 01:02H7S嘉泰姆 | 1.8H7S嘉泰姆 | 5.5H7S嘉泰姆 | 1H7S嘉泰姆 | 0.5H7S嘉泰姆 | 30H7S嘉泰姆 | 2.4H7S嘉泰姆 | 0.8H7S嘉泰姆 | 21H7S嘉泰姆 | 9H7S嘉泰姆 | MSOP-8H7S嘉泰姆 |
CXAS42167H7S嘉泰姆 | 2H7S嘉泰姆 | 01:02H7S嘉泰姆 | 1.8H7S嘉泰姆 | 5.5H7S嘉泰姆 | 1H7S嘉泰姆 | 0.5H7S嘉泰姆 | 15H7S嘉泰姆 | 2.4H7S嘉泰姆 | 0.8H7S嘉泰姆 | 50H7S嘉泰姆 | 15H7S嘉泰姆 | TDFN-3x3-10L MSOP-10H7S嘉泰姆 |
CXAS42168H7S嘉泰姆 | 1H7S嘉泰姆 | 01:02H7S嘉泰姆 | 1.8H7S嘉泰姆 | 5.5H7S嘉泰姆 | 5H7S嘉泰姆 | 4.5H7S嘉泰姆 | 300H7S嘉泰姆 | 1.5H7S嘉泰姆 | 0.6H7S嘉泰姆 | 20H7S嘉泰姆 | 15H7S嘉泰姆 | SC70-6H7S嘉泰姆 |
CXAS42169H7S嘉泰姆 | 2H7S嘉泰姆 | 01:02H7S嘉泰姆 | 1.8H7S嘉泰姆 | 5.5H7S嘉泰姆 | 5H7S嘉泰姆 | 4.5H7S嘉泰姆 | 270H7S嘉泰姆 | 1.5H7S嘉泰姆 | 0.6H7S嘉泰姆 | 20H7S嘉泰姆 | 15H7S嘉泰姆 | TDFN-3x1-12LH7S嘉泰姆 |
CXAS42170H7S嘉泰姆 | 1H7S嘉泰姆 | 01:02H7S嘉泰姆 | 1.8H7S嘉泰姆 | 5.5H7S嘉泰姆 | 5H7S嘉泰姆 | 9H7S嘉泰姆 | 600H7S嘉泰姆 | 1.5H7S嘉泰姆 | 0.6H7S嘉泰姆 | 20H7S嘉泰姆 | 15H7S嘉泰姆 | SC70-6H7S嘉泰姆 |
CXAS42171H7S嘉泰姆 | 4H7S嘉泰姆 | 01:02H7S嘉泰姆 | 5H7S嘉泰姆 | 5H7S嘉泰姆 | 20H7S嘉泰姆 | 12H7S嘉泰姆 | 500H7S嘉泰姆 | 2H7S嘉泰姆 | 0.6H7S嘉泰姆 | 25H7S嘉泰姆 | 13H7S嘉泰姆 | SOIC-16 TSSOP-16 SSOP-16H7S嘉泰姆 |
CXAS42172H7S嘉泰姆 | 4H7S嘉泰姆 | 01:02H7S嘉泰姆 | 5H7S嘉泰姆 | 5H7S嘉泰姆 | 20H7S嘉泰姆 | 12H7S嘉泰姆 | 500H7S嘉泰姆 | 2H7S嘉泰姆 | 0.6H7S嘉泰姆 | 25H7S嘉泰姆 | 13H7S嘉泰姆 | SOIC-16 TSSOP-16 SSOP-16H7S嘉泰姆 |
CXAS42173H7S嘉泰姆 | 4H7S嘉泰姆 | 01:02H7S嘉泰姆 | 1.8H7S嘉泰姆 | 4.35H7S嘉泰姆 | 1H7S嘉泰姆 | 0.5H7S嘉泰姆 | 70H7S嘉泰姆 | 1.6H7S嘉泰姆 | 0.5H7S嘉泰姆 | 52H7S嘉泰姆 | 25H7S嘉泰姆 | TQFN-3x3-16LH7S嘉泰姆 |
CXAS42174H7S嘉泰姆 | 4H7S嘉泰姆 | 01:02H7S嘉泰姆 | 2.5H7S嘉泰姆 | 5.5H7S嘉泰姆 | 15H7S嘉泰姆 | 4H7S嘉泰姆 | 380H7S嘉泰姆 | 1.5H7S嘉泰姆 | 0.5H7S嘉泰姆 | 15H7S嘉泰姆 | 9H7S嘉泰姆 | TQFN-3x3-16LH7S嘉泰姆 |
CXAS42175H7S嘉泰姆 | 2H7S嘉泰姆 | 01:02H7S嘉泰姆 | 2.5H7S嘉泰姆 | 5H7S嘉泰姆 | 6H7S嘉泰姆 | 4H7S嘉泰姆 | 400H7S嘉泰姆 | 1.5H7S嘉泰姆 | 0.6H7S嘉泰姆 | 15H7S嘉泰姆 | 11H7S嘉泰姆 | UTQFN-1.8x1.4-10L MSOP-10H7S嘉泰姆 |
CXAS42176H7S嘉泰姆 | 2H7S嘉泰姆 | 01:02H7S嘉泰姆 | 2.5H7S嘉泰姆 | 5H7S嘉泰姆 | 3.5H7S嘉泰姆 | 0.6H7S嘉泰姆 | 80H7S嘉泰姆 | 1.5H7S嘉泰姆 | 0.6H7S嘉泰姆 | 17H7S嘉泰姆 | 24H7S嘉泰姆 | UTQFN-1.8H7S嘉泰姆 |
CXAS42177H7S嘉泰姆 | 1H7S嘉泰姆 | 01:02H7S嘉泰姆 | 2.5H7S嘉泰姆 | 5H7S嘉泰姆 | 8H7S嘉泰姆 | 4H7S嘉泰姆 | 400H7S嘉泰姆 | 1.65H7S嘉泰姆 | 0.6H7S嘉泰姆 | 15H7S嘉泰姆 | 11H7S嘉泰姆 | SOT-23-6H7S嘉泰姆 |
CXAS42178H7S嘉泰姆 | 4H7S嘉泰姆 | 01:02H7S嘉泰姆 | 1.8H7S嘉泰姆 | 4.35H7S嘉泰姆 | 1H7S嘉泰姆 | 0.5H7S嘉泰姆 | 70H7S嘉泰姆 | 1.6H7S嘉泰姆 | 0.5H7S嘉泰姆 | 52H7S嘉泰姆 | 25H7S嘉泰姆 | TQFN-2.6x1.8-16LH7S嘉泰姆 |
CXAS42179H7S嘉泰姆 | 1H7S嘉泰姆 | 01:02H7S嘉泰姆 | 1.8H7S嘉泰姆 | 5.5H7S嘉泰姆 | 0.1H7S嘉泰姆 | 0.8H7S嘉泰姆 | 90H7S嘉泰姆 | 1.6H7S嘉泰姆 | 0.4H7S嘉泰姆 | 56H7S嘉泰姆 | 32H7S嘉泰姆 | SC70-6H7S嘉泰姆 |
CXAS42180H7S嘉泰姆 | 4H7S嘉泰姆 | 01:02H7S嘉泰姆 | 1.8H7S嘉泰姆 | 5.5H7S嘉泰姆 | 1H7S嘉泰姆 | 4H7S嘉泰姆 | 300H7S嘉泰姆 | 1.6H7S嘉泰姆 | 0.5H7S嘉泰姆 | 31.5H7S嘉泰姆 | 30H7S嘉泰姆 | TQFN-3x3-16L TQFN-2.5x2.5-16LH7S嘉泰姆 |
CXAS42181H7S嘉泰姆 | 4H7S嘉泰姆 | 01:02H7S嘉泰姆 | 1.8H7S嘉泰姆 | 5.5H7S嘉泰姆 | 1H7S嘉泰姆 | 4H7S嘉泰姆 | 300H7S嘉泰姆 | 1.6H7S嘉泰姆 | 0.5H7S嘉泰姆 | 29.5H7S嘉泰姆 | 29.5H7S嘉泰姆 | TQFN-3x3-16LH7S嘉泰姆 |
CXAS42182H7S嘉泰姆 | 4H7S嘉泰姆 | 01:02H7S嘉泰姆 | 1.8H7S嘉泰姆 | 5.5H7S嘉泰姆 | 1H7S嘉泰姆 | 4H7S嘉泰姆 | 300H7S嘉泰姆 | 1.6H7S嘉泰姆 | 0.5H7S嘉泰姆 | 36H7S嘉泰姆 | 30H7S嘉泰姆 | TQFN-2.6x1.8-16LH7S嘉泰姆 |
CXAS42183H7S嘉泰姆 | 4H7S嘉泰姆 | 01:02H7S嘉泰姆 | 1.8H7S嘉泰姆 | 5.5H7S嘉泰姆 | 1H7S嘉泰姆 | 4H7S嘉泰姆 | 300H7S嘉泰姆 | 1.6H7S嘉泰姆 | 0.5H7S嘉泰姆 | 32H7S嘉泰姆 | 26H7S嘉泰姆 | TQFN-2.6x1.8-16LH7S嘉泰姆 |
CXAS42184H7S嘉泰姆 | 4H7S嘉泰姆 | 01:02H7S嘉泰姆 | 1.8H7S嘉泰姆 | 5.5H7S嘉泰姆 | 1H7S嘉泰姆 | 4.5H7S嘉泰姆 | 300H7S嘉泰姆 | 1.6H7S嘉泰姆 | 0.5H7S嘉泰姆 | 40H7S嘉泰姆 | 30H7S嘉泰姆 | TQFN-2.6x1.8-16LH7S嘉泰姆 |
CXAS42185H7S嘉泰姆 | 1H7S嘉泰姆 | 01:08H7S嘉泰姆 | 3.6H7S嘉泰姆 | 11H7S嘉泰姆 | 20H7S嘉泰姆 | 36H7S嘉泰姆 | 90H7S嘉泰姆 | 2.4H7S嘉泰姆 | 0.8H7S嘉泰姆 | 60H7S嘉泰姆 | 60H7S嘉泰姆 | SSOP-16 TSSOP-16 SOIC-16 TQFN-3x3-16LH7S嘉泰姆 |
CXAS42186H7S嘉泰姆 | 2H7S嘉泰姆 | 01:04H7S嘉泰姆 | 3.6H7S嘉泰姆 | 11H7S嘉泰姆 | 20H7S嘉泰姆 | 36H7S嘉泰姆 | 120H7S嘉泰姆 | 2.4H7S嘉泰姆 | 0.8H7S嘉泰姆 | 60H7S嘉泰姆 | 60H7S嘉泰姆 | SSOP-16 TSSOP-16 SOIC-16 TQFN-3x3-16LH7S嘉泰姆 |
CXAS42187H7S嘉泰姆 | 3H7S嘉泰姆 | 01:02H7S嘉泰姆 | 3.6H7S嘉泰姆 | 11H7S嘉泰姆 | 20H7S嘉泰姆 | 36H7S嘉泰姆 | 140H7S嘉泰姆 | 2.4H7S嘉泰姆 | 0.8H7S嘉泰姆 | 60H7S嘉泰姆 | 70H7S嘉泰姆 | SSOP-16 TSSOP-16 SOIC-16 TQFN-3x3-16LH7S嘉泰姆 |
CXAS42188H7S嘉泰姆 | 2H7S嘉泰姆 | 01:02H7S嘉泰姆 | 1.8H7S嘉泰姆 | 5.5H7S嘉泰姆 | 1H7S嘉泰姆 | 0.4H7S嘉泰姆 | 13H7S嘉泰姆 | 2.4H7S嘉泰姆 | 0.8H7S嘉泰姆 | 25H7S嘉泰姆 | 28H7S嘉泰姆 | WLCSP-2.0x1.5-10BH7S嘉泰姆 |
CXAS42189H7S嘉泰姆 | 2H7S嘉泰姆 | 01:02H7S嘉泰姆 | 1.8H7S嘉泰姆 | 5.5H7S嘉泰姆 | 5H7S嘉泰姆 | 4.5H7S嘉泰姆 | 300H7S嘉泰姆 | 1.5H7S嘉泰姆 | 0.6H7S嘉泰姆 | 26H7S嘉泰姆 | 20H7S嘉泰姆 | WLCSP-2.0x1.5-10B MSOP-10 TDFN-3x3-10L TQFN-1.8x1.4-10LH7S嘉泰姆 |
CXAS42190H7S嘉泰姆 | 2H7S嘉泰姆 | 01:04H7S嘉泰姆 | 1.8H7S嘉泰姆 | 4.2H7S嘉泰姆 | 1H7S嘉泰姆 | 0.5H7S嘉泰姆 | 30H7S嘉泰姆 | 1.6H7S嘉泰姆 | 0.5H7S嘉泰姆 | 20H7S嘉泰姆 | 20H7S嘉泰姆 | TQFN-3x3-16L TSSOP-16H7S嘉泰姆 |
CXAS42191H7S嘉泰姆 | 1H7S嘉泰姆 | 01:08H7S嘉泰姆 | 2.5H7S嘉泰姆 | 5.5H7S嘉泰姆 | 6H7S嘉泰姆 | 48H7S嘉泰姆 | 180H7S嘉泰姆 | 1.7H7S嘉泰姆 | 0.5H7S嘉泰姆 | 60H7S嘉泰姆 | 70H7S嘉泰姆 | SSOP-16 TSSOP-16 SOIC-16 TQFN-3x3-16LH7S嘉泰姆 |
CXAS42192H7S嘉泰姆 | 2H7S嘉泰姆 | 01:04H7S嘉泰姆 | 2.5H7S嘉泰姆 | 5.5H7S嘉泰姆 | 6H7S嘉泰姆 | 48H7S嘉泰姆 | 180H7S嘉泰姆 | 1.7H7S嘉泰姆 | 0.5H7S嘉泰姆 | 60H7S嘉泰姆 | 70H7S嘉泰姆 | SSOP-16 TSSOP-16 SOIC-16 TQFN-3x3-16LH7S嘉泰姆 |
CXAS42193H7S嘉泰姆 | 3H7S嘉泰姆 | 01:02H7S嘉泰姆 | 2.5H7S嘉泰姆 | 5.5H7S嘉泰姆 | 6H7S嘉泰姆 | 48H7S嘉泰姆 | 180H7S嘉泰姆 | 1.7H7S嘉泰姆 | 0.5H7S嘉泰姆 | 60H7S嘉泰姆 | 70H7S嘉泰姆 | SSOP-16 TSSOP-16 SOIC-16 TQFN-3x3-16LH7S嘉泰姆 |
CXAS42194H7S嘉泰姆 | 4H7S嘉泰姆 | SPSTH7S嘉泰姆 | 2.5H7S嘉泰姆 | 5.5H7S嘉泰姆 | 6H7S嘉泰姆 | 24H7S嘉泰姆 | 180H7S嘉泰姆 | 1.7H7S嘉泰姆 | 0.5H7S嘉泰姆 | 40H7S嘉泰姆 | 100H7S嘉泰姆 | TSSOP-14 SOIC-14H7S嘉泰姆 |
CXAS42195H7S嘉泰姆 | 1H7S嘉泰姆 | 01:04H7S嘉泰姆 | 2.5H7S嘉泰姆 | 5.5H7S嘉泰姆 | 6H7S嘉泰姆 | 24H7S嘉泰姆 | 180H7S嘉泰姆 | 1.7H7S嘉泰姆 | 0.5H7S嘉泰姆 | 50H7S嘉泰姆 | 85H7S嘉泰姆 | MSOP-10H7S嘉泰姆 |
CXAS42196H7S嘉泰姆 | 1H7S嘉泰姆 | 01:04H7S嘉泰姆 | 1.8H7S嘉泰姆 | 4.2H7S嘉泰姆 | 1H7S嘉泰姆 | 4H7S嘉泰姆 | 150H7S嘉泰姆 | 1.4H7S嘉泰姆 | 0.3H7S嘉泰姆 | 35H7S嘉泰姆 | 9H7S嘉泰姆 | TDFN-3x3-10L MSOP-10H7S嘉泰姆 |
CXAS42197H7S嘉泰姆 | 4H7S嘉泰姆 | 01:02H7S嘉泰姆 | 1.8H7S嘉泰姆 | 5.5H7S嘉泰姆 | 1H7S嘉泰姆 | 4.5H7S嘉泰姆 | 300H7S嘉泰姆 | 1.6H7S嘉泰姆 | 0.5H7S嘉泰姆 | 40H7S嘉泰姆 | 30H7S嘉泰姆 | TSSOP-16H7S嘉泰姆 |
CXAS42198H7S嘉泰姆 | 2H7S嘉泰姆 | 01:02H7S嘉泰姆 | 1.8H7S嘉泰姆 | 4.2H7S嘉泰姆 | 1H7S嘉泰姆 | 0.5H7S嘉泰姆 | 55H7S嘉泰姆 | 1.6H7S嘉泰姆 | 0.5H7S嘉泰姆 | 17H7S嘉泰姆 | 27.5H7S嘉泰姆 | TQFN-1.8x1.4-10LH7S嘉泰姆 |
CXAS42199H7S嘉泰姆 | 2H7S嘉泰姆 | 01:02H7S嘉泰姆 | 1.8H7S嘉泰姆 | 4.3H7S嘉泰姆 | 1H7S嘉泰姆 | 4.5H7S嘉泰姆 | 550H7S嘉泰姆 | 1.6H7S嘉泰姆 | 0.5H7S嘉泰姆 | 10H7S嘉泰姆 | 22H7S嘉泰姆 | TQFN-1.8x1.4-10L MSOP-10 UTQFN-1.8x1.4-10LH7S嘉泰姆 |
CXAS42200H7S嘉泰姆 | 2H7S嘉泰姆 | 01:02H7S嘉泰姆 | 1.8H7S嘉泰姆 | 4.3H7S嘉泰姆 | 1H7S嘉泰姆 | 4.5H7S嘉泰姆 | 500H7S嘉泰姆 | 1.6H7S嘉泰姆 | 0.5H7S嘉泰姆 | 11H7S嘉泰姆 | 20H7S嘉泰姆 | TQFN-2.1x1.6-10LH7S嘉泰姆 |
CXAS42201H7S嘉泰姆 | 2H7S嘉泰姆 | 01:02H7S嘉泰姆 | 1.8H7S嘉泰姆 | 5.5H7S嘉泰姆 | 30H7S嘉泰姆 | 5H7S嘉泰姆 | 550H7S嘉泰姆 | 1.5H7S嘉泰姆 | 0.35H7S嘉泰姆 | 15H7S嘉泰姆 | 20H7S嘉泰姆 | TQFN-2.6x1.8-16LH7S嘉泰姆 |
CXAS42202H7S嘉泰姆 | 2H7S嘉泰姆 | 01:02H7S嘉泰姆 | 1.8H7S嘉泰姆 | 4.3H7S嘉泰姆 | 1H7S嘉泰姆 | 5H7S嘉泰姆 | 550H7S嘉泰姆 | 1.6H7S嘉泰姆 | 0.5H7S嘉泰姆 | 15H7S嘉泰姆 | 20H7S嘉泰姆 | MSOP-10 UTQFN-1.8x1.4-10LH7S嘉泰姆 |
CXAS42203H7S嘉泰姆 | 2H7S嘉泰姆 | 01:04H7S嘉泰姆 | 1.8H7S嘉泰姆 | 4.2H7S嘉泰姆 | 1H7S嘉泰姆 | 4H7S嘉泰姆 | 150H7S嘉泰姆 | 1.6H7S嘉泰姆 | 0.5H7S嘉泰姆 | 17H7S嘉泰姆 | 9H7S嘉泰姆 | TQFN-3x3-16L TSSOP-16H7S嘉泰姆 |
