产品概述 返回TOPskM嘉泰姆
The CXAS42205 provides eight inputs that can be routed to any of six outputs. Each input can be routed to one or more outputs, but only one input may be routed to any output.skM嘉泰姆
Each input supports an integrated clamp option to set the output sync tip level of video with sync to ~600mV. Alternatively, the input may be internally biased to center output signals without sync (Chroma, Pb, Pr) at ~1.3V.skM嘉泰姆
All outputs are designed to drive a 150Ω DC-coupled load. Each output can be programmed to provide either 0dB or 6dB of signal gain.skM嘉泰姆
Input-to-output routing and input bias mode functions are controlled via an I2C-compatible digital interface.skM嘉泰姆
The CXAS42205 is available in Green TSSOP-24 package. It operates over an ambient temperature range of -40℃</span> to +85℃</span>.skM嘉泰姆
产品特点 返回TOPskM嘉泰姆
• 8 × 6 Crosspoint Switch Matrix
• One-to-One or One-to-Many Input-to-Output Switching
• I2C - Compatible Digital Interface, Standard Mode
• Supports SD, PS, and HD Video
• Input Clamp and Bias Circuitry
• Doubly Terminated 75Ω Cable Drivers
• Programmable 0dB or 6dB Gain
• AC- or DC-Coupled Inputs
• AC- or DC-Coupled Outputs
• Single Supply: 3.1V to 5.5V
• Green TSSOP-24 PackageskM嘉泰姆
应用范围 返回TOPskM嘉泰姆
Video Distribution
TV and HDTV Sets
Cable and Satellite Set-Top Boxes
A/V Switchers
Personal Video Recorders (PVR)
Security and Surveillance
Automotive (In-Cabin Entertainment)skM嘉泰姆
技术规格书（产品PDF) 返回TOP skM嘉泰姆
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持</span>！</span>
skM嘉泰姆
skM嘉泰姆

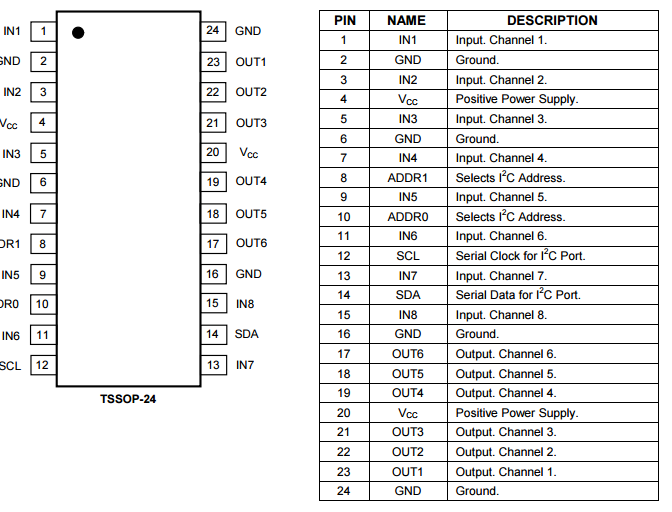

产品封装图 返回TOPskM嘉泰姆
skM嘉泰姆
电路原理图 返回TOPskM嘉泰姆
skM嘉泰姆
skM嘉泰姆
skM嘉泰姆
特殊开关系列</span>skM嘉泰姆 |
Part NumberskM嘉泰姆 | FeatureskM嘉泰姆 | VCCskM嘉泰姆 (Min)VskM嘉泰姆 | VCCskM嘉泰姆 (Max)V skM嘉泰姆 | -3dB skM嘉泰姆 BandwidthskM嘉泰姆 | InterfaceskM嘉泰姆 | RON skM嘉泰姆 (Ω)skM嘉泰姆 | Crosstalk skM嘉泰姆 (-dB)skM嘉泰姆 | PackageskM嘉泰姆 |
CXAS42204skM嘉泰姆 | 12x9,BufferedskM嘉泰姆 | 3.1skM嘉泰姆 | 5.5skM嘉泰姆 | 84skM嘉泰姆 | I2CskM嘉泰姆 |
| 74skM嘉泰姆 | SSOP-28 TSSOP-28skM嘉泰姆 |
CXAS42205skM嘉泰姆 | 8x6, BufferedskM嘉泰姆 | 3.1skM嘉泰姆 | 5.5skM嘉泰姆 | 88skM嘉泰姆 | I2CskM嘉泰姆 |
| 77skM嘉泰姆 | TSSOP-24skM嘉泰姆 |
CXAS42206skM嘉泰姆 | SIM I/F SwapskM嘉泰姆 | 1.8skM嘉泰姆 | 5.5skM嘉泰姆 | 400skM嘉泰姆 | I/OskM嘉泰姆 |
| 80skM嘉泰姆 | TQFN-3x3-20LskM嘉泰姆 |
CXAS42207skM嘉泰姆 | 4-2:2, Passive SwapskM嘉泰姆 | 1.8skM嘉泰姆 | 5.5skM嘉泰姆 | 400skM嘉泰姆 | I/OskM嘉泰姆 | 12skM嘉泰姆 | 80skM嘉泰姆 | TQFN-3x3-20LskM嘉泰姆 |
CXAS42208skM嘉泰姆 | Six Channels 1:2 MultiplexerskM嘉泰姆 | 2skM嘉泰姆 | 5skM嘉泰姆 | 450skM嘉泰姆 | I/OskM嘉泰姆 | 8.5skM嘉泰姆 | 55skM嘉泰姆 | TSSOP-24 TQFN-4x4-24LskM嘉泰姆 |
CXAS42209skM嘉泰姆 | 16x4,PassiveskM嘉泰姆 | 2.7skM嘉泰姆 | 5.5skM嘉泰姆 | 120skM嘉泰姆 | I2CskM嘉泰姆 | 30skM嘉泰姆 | 110skM嘉泰姆 | TSSOP-28 TQFN-4x4-28LskM嘉泰姆 |
CXAS42210skM嘉泰姆 | 16x8 PassiveskM嘉泰姆 | 2.7skM嘉泰姆 | 5.5skM嘉泰姆 | 120skM嘉泰姆 | I2CskM嘉泰姆 | 30skM嘉泰姆 | 110skM嘉泰姆 | TQFN-5x5-32L LQFP-7x7-32LskM嘉泰姆 |
CXAS42211skM嘉泰姆 | 1:16, MultiplexerskM嘉泰姆 | 3.3skM嘉泰姆 | 13.2skM嘉泰姆 | 80skM嘉泰姆 | I/OskM嘉泰姆 | 24skM嘉泰姆 | 70skM嘉泰姆 | TQFN-5x5-32L TSSOP-28skM嘉泰姆 |
CXAS42212skM嘉泰姆 | Dual 1:8, MultiplexerskM嘉泰姆 | 3.3skM嘉泰姆 | 13.2skM嘉泰姆 | 135skM嘉泰姆 | I/OskM嘉泰姆 | 24skM嘉泰姆 | 70skM嘉泰姆 | TQFN-5x5-32L TSSOP-28skM嘉泰姆 |
CXAS42213skM嘉泰姆 | High Speed, 16x8, Passive, skM嘉泰姆 I2C InterfaceskM嘉泰姆 | 2.7skM嘉泰姆 | 5.5skM嘉泰姆 | 250skM嘉泰姆 | I2CskM嘉泰姆 | 30skM嘉泰姆 | 110skM嘉泰姆 | LQFP-7x7-32LskM嘉泰姆 |
CXAS42214skM嘉泰姆 | 1:8, MultiplexerskM嘉泰姆 | 3.3skM嘉泰姆 | 13.2skM嘉泰姆 | 80skM嘉泰姆 | I/OskM嘉泰姆 | 24skM嘉泰姆 | 70skM嘉泰姆 | TSSOP-16skM嘉泰姆 |
CXAS42215skM嘉泰姆 | 16x8, PassiveskM嘉泰姆 | 4.5skM嘉泰姆 | 13.2skM嘉泰姆 | 45skM嘉泰姆 | I/OskM嘉泰姆 | 40skM嘉泰姆 | 47skM嘉泰姆 | LQFP-10x10-44L PLCC-44LskM嘉泰姆 |
CXAS42216skM嘉泰姆 | High Speed, 16x8, Passive, Serial Digital InterfaceskM嘉泰姆 | 2.7skM嘉泰姆 | 5.5skM嘉泰姆 | 250skM嘉泰姆 | SPIskM嘉泰姆 | 28skM嘉泰姆 | 55skM嘉泰姆 | LQFP-7x7-32LskM嘉泰姆 |
CXAS42217skM嘉泰姆 | High Speed, 2:1 32-Bit Bus MultiplexerskM嘉泰姆 | 3.3skM嘉泰姆 | 5skM嘉泰姆 | 100skM嘉泰姆 | I/OskM嘉泰姆 | 11skM嘉泰姆 | 60skM嘉泰姆 | LQFP-14x14-100LskM嘉泰姆 |
CXAS42218skM嘉泰姆 | High Speed, 3-1:3MultiplexerskM嘉泰姆 | 2.5skM嘉泰姆 | 5.5skM嘉泰姆 | 350skM嘉泰姆 | I/OskM嘉泰姆 | 7skM嘉泰姆 | 60skM嘉泰姆 | TQFN-3x3-20L TSSOP-20skM嘉泰姆 |
CXAS42219skM嘉泰姆 | High Speed, 2-1:3 MultiplexerskM嘉泰姆 | 2.7skM嘉泰姆 | 4.3skM嘉泰姆 | 380/400skM嘉泰姆 | I/OskM嘉泰姆 | 4/9skM嘉泰姆 | 90skM嘉泰姆 | UTQFN-2.2x1.4-12LskM嘉泰姆 |
