Dual, Low Dropout, 250mA LDO Regulator CXLD64290 dual, low-power, low-dropout, CMOS linear voltage regulator. It operates from a 2.5V to 5.5V input voltage and delivers up to 250mA at each channel

发布时间：2020-04-06 09:43:38 浏览次数：706 作者：嘉泰姆

摘要：Dual, Low Dropout, 250mA LDO Regulator CXLD64290 dual, low-power, low-dropout, CMOS linear voltage regulator. It operates from a 2.5V to 5.5V input voltage and delivers up to 250mA at each channel

The CXLD64290 is the perfect choice for low voltage, low power applications. The ground current is 190μA (both LDO’s enabled and active) that makes this part attractive for battery operated power systems. The CXLD64290 also offers low dropout voltage (250mV at 250mA output) to prolong battery life in portable electronics.uG7嘉泰姆

Separate enable pins control each individual LDO output. The EN function allows the output of each regulator to be turned off independently, resulting in greatly reduced power consumption. Other features include a 10nA logic-controlled shutdown mode, current limit and thermal shutdown protection.uG7嘉泰姆

The CXLD64290 is available in Green SOT-23-6 package. It operates over an ambient temperature range of -40℃ to +85℃.uG7嘉泰姆

产品特点 返回TOPuG7嘉泰姆

uG7嘉泰姆

• Highly Accurate: ±2%
uG7嘉泰姆

• Ultra-Low Dropout Voltage:
250mV at 250mA Output
• 190μA No-Load Supply Current
• Thermal-Overload Protection
• Output Current Limit
• 10nA Logic-Controlled Shutdown
• Operating Temperature Range: -40℃ to +85℃
• Available in Green SOT-23-6 PackageuG7嘉泰姆

应用范围 返回TOPuG7嘉泰姆

Cellular Telephones
Cordless Telephones
PCMCIA Cards
Modems
MP3 Player
Hand-Held Instruments
Palmtop Computers
Wireless LAN
Portable/Battery-Powered EquipmentuG7嘉泰姆

技术规格书（产品PDF) 返回TOP uG7嘉泰姆

需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！
uG7嘉泰姆

uG7嘉泰姆

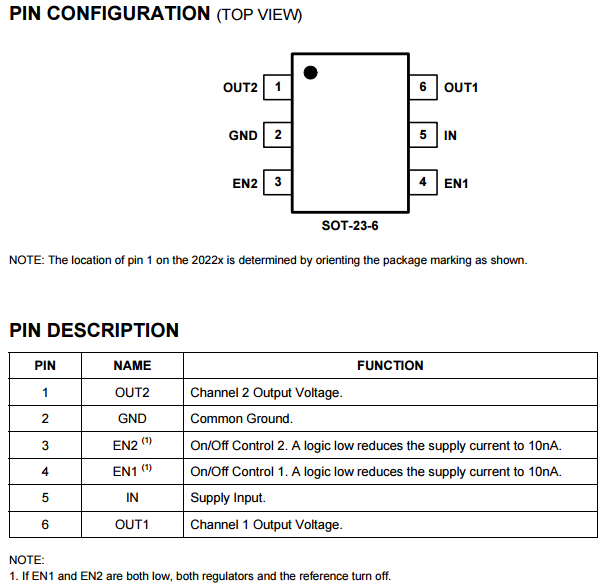

产品封装图 返回TOPuG7嘉泰姆

uG7嘉泰姆

电路原理图 返回TOPuG7嘉泰姆

uG7嘉泰姆

相关芯片选择指南返回TOP 更多同类产品......

uG7嘉泰姆

低功耗、高压线性稳压器uG7嘉泰姆
ProductuG7嘉泰姆	V_{OUT (V)}uG7嘉泰姆	V_INuG7嘉泰姆 (Min)uG7嘉泰姆 (V) uG7嘉泰姆	V_INuG7嘉泰姆 (Max)uG7嘉泰姆 (V) uG7嘉泰姆	I_OUTuG7嘉泰姆 _(mA)uG7嘉泰姆	Iq uG7嘉泰姆 (μA)uG7嘉泰姆	Dropout uG7嘉泰姆 Voltage uG7嘉泰姆 (mV)uG7嘉泰姆	PSRR uG7嘉泰姆 (dB)uG7嘉泰姆	PackageuG7嘉泰姆
CXLD64278uG7嘉泰姆	1.5,1.8,2.5,2.8,3,3.3uG7嘉泰姆 ,3.6,4.4,5,adjuG7嘉泰姆	4uG7嘉泰姆	26.4uG7嘉泰姆	50uG7嘉泰姆	1.75uG7嘉泰姆	35uG7嘉泰姆	47uG7嘉泰姆	SOT-89-3 SOT-23 uG7嘉泰姆 TSOT-23-5 SC70-5uG7嘉泰姆
CXLD64279uG7嘉泰姆	1.5,1.8,2.5,2.8,3,3.3,3.6,5,adjuG7嘉泰姆	4uG7嘉泰姆	18uG7嘉泰姆	50uG7嘉泰姆	1.7uG7嘉泰姆	35uG7嘉泰姆	47uG7嘉泰姆	SOT-23-5 SOT-23uG7嘉泰姆

高精度、低噪声、低功耗、低压差线性稳压器uG7嘉泰姆
ProductuG7嘉泰姆	V_{OUT (V)}uG7嘉泰姆	V_INuG7嘉泰姆 (Min)uG7嘉泰姆 VuG7嘉泰姆	V_INuG7嘉泰姆 (Max)uG7嘉泰姆 VuG7嘉泰姆	I_OUTuG7嘉泰姆 _(mA)uG7嘉泰姆	Iq uG7嘉泰姆 (μA)uG7嘉泰姆	Dropout uG7嘉泰姆 Voltage uG7嘉泰姆 (mV)uG7嘉泰姆	uG7嘉泰姆 Output uG7嘉泰姆 Voltage uG7嘉泰姆 Noise uG7嘉泰姆 (μVRMS) uG7嘉泰姆	PSRR uG7嘉泰姆 (dB)uG7嘉泰姆	PackageuG7嘉泰姆
CXLD64280uG7嘉泰姆	1.2,1.5,1.8,2.5,2.6,2.8,uG7嘉泰姆 2.85,3,3.3uG7嘉泰姆	2.5uG7嘉泰姆	5.5uG7嘉泰姆	300uG7嘉泰姆	110uG7嘉泰姆	270uG7嘉泰姆	140uG7嘉泰姆	52uG7嘉泰姆	SOT-89-3uG7嘉泰姆
CXLD64281uG7嘉泰姆	1.2,1.5,1.8,2.5,2.6,2.8uG7嘉泰姆 ,2.85,3,3.3,adjuG7嘉泰姆	2.5uG7嘉泰姆	5.5uG7嘉泰姆	300uG7嘉泰姆	100uG7嘉泰姆	270uG7嘉泰姆	30uG7嘉泰姆	74uG7嘉泰姆	SOT-23-5 SC70-5uG7嘉泰姆
CXLD64282uG7嘉泰姆	1.2,1.5,1.8,2.5,2.8uG7嘉泰姆 ,2.85,3,3.3uG7嘉泰姆	2.5uG7嘉泰姆	5.5uG7嘉泰姆	300uG7嘉泰姆	110uG7嘉泰姆	270uG7嘉泰姆	30uG7嘉泰姆	67uG7嘉泰姆	SOT-23-5 SC70-5uG7嘉泰姆
CXLD64283uG7嘉泰姆	0.9,1.2,1.3,1.5,1.8,2.1,uG7嘉泰姆 2.5,2.8,,3,3.3,3.6,4.2,5uG7嘉泰姆	2.5uG7嘉泰姆	5.5uG7嘉泰姆	300uG7嘉泰姆	120uG7嘉泰姆	270uG7嘉泰姆	120uG7嘉泰姆	48uG7嘉泰姆	SOT-23-3uG7嘉泰姆
CXLD64284uG7嘉泰姆	2.8,3.0,3.3,AdjuG7嘉泰姆	2.5uG7嘉泰姆	5.5uG7嘉泰姆	500uG7嘉泰姆	115uG7嘉泰姆	270uG7嘉泰姆	30uG7嘉泰姆	73uG7嘉泰姆	SOT-23-5uG7嘉泰姆
CXLD64285uG7嘉泰姆	1.2,1.5,1.8,2.5,2.6,uG7嘉泰姆 2.8,2.85,3,3.3uG7嘉泰姆	2.5uG7嘉泰姆	5.5uG7嘉泰姆	300uG7嘉泰姆	95uG7嘉泰姆	270uG7嘉泰姆	140uG7嘉泰姆	71uG7嘉泰姆	UTDFN-1.2x1.6-4LuG7嘉泰姆
CXLD64286uG7嘉泰姆	1.2,1.5,1.8,2.5,2.6,uG7嘉泰姆 2.8,2.85,3,3.3uG7嘉泰姆	2.5uG7嘉泰姆	5.5uG7嘉泰姆	250uG7嘉泰姆	95uG7嘉泰姆	230uG7嘉泰姆	140uG7嘉泰姆	72uG7嘉泰姆	UTDFN-1x1-4LuG7嘉泰姆
CXLD64287uG7嘉泰姆	0.9,1.3,2.1,2.7,2.9,3.1,uG7嘉泰姆 3.2,3.6,4.2,5,adjuG7嘉泰姆	2.5uG7嘉泰姆	5.5uG7嘉泰姆	300uG7嘉泰姆	120uG7嘉泰姆	270uG7嘉泰姆	30uG7嘉泰姆	75uG7嘉泰姆	SOT-23-5 SC70-5uG7嘉泰姆
CXLD64288uG7嘉泰姆	2.8,3,3.3,adjuG7嘉泰姆	2.5uG7嘉泰姆	5.5uG7嘉泰姆	500uG7嘉泰姆	115uG7嘉泰姆	250uG7嘉泰姆	30uG7嘉泰姆	73uG7嘉泰姆	TDFN-2x2-6L UTDFN-1.6x1.6-6LuG7嘉泰姆
CXLD64289uG7嘉泰姆	0.8,0.9,1,1.0,1.1,1.2,1.3,uG7嘉泰姆 1.5,1.8,1.85,2.1 2.2 2.3 uG7嘉泰姆 2.5,2.6,2.7,2.8,2.85,2.9, 3,3.1,3.3, 3.6, 4.2,4.4,5,adjuG7嘉泰姆	1.6uG7嘉泰姆	5.5uG7嘉泰姆	300uG7嘉泰姆	20uG7嘉泰姆	185uG7嘉泰姆	30uG7嘉泰姆	66uG7嘉泰姆	UTDFN-1x1-4L SOT-23-5 SC70-5uG7嘉泰姆
多通道、高精度、低噪声、低功耗、低压差线性稳压器uG7嘉泰姆
ProductuG7嘉泰姆	V_{OUT (V)}uG7嘉泰姆	V_INuG7嘉泰姆 (Min)uG7嘉泰姆	V_IN(Max)uG7嘉泰姆 (V) uG7嘉泰姆	I_{OUT (mA)}uG7嘉泰姆	Dropout uG7嘉泰姆 Voltage (mV)uG7嘉泰姆	Iq uG7嘉泰姆 (μA)uG7嘉泰姆	Output uG7嘉泰姆 Voltage uG7嘉泰姆 Noise uG7嘉泰姆 (μVRMS) uG7嘉泰姆	PSRR uG7嘉泰姆 (dB)uG7嘉泰姆	PackageuG7嘉泰姆
CXLD64290uG7嘉泰姆	2 channels 2.8/1.8 2.8/1.3uG7嘉泰姆	2.5uG7嘉泰姆	5.5uG7嘉泰姆	250uG7嘉泰姆	250uG7嘉泰姆	190uG7嘉泰姆	120uG7嘉泰姆	54uG7嘉泰姆	SOT-23-6uG7嘉泰姆
CXLD64291uG7嘉泰姆	2 channels 3.0/3.0 1.2/1.8uG7嘉泰姆	2.5uG7嘉泰姆	5.5uG7嘉泰姆	250uG7嘉泰姆	250uG7嘉泰姆	190uG7嘉泰姆	120uG7嘉泰姆	54uG7嘉泰姆	TSOT-23-6uG7嘉泰姆
