CXLE8181 The small equivalent 1× mode open loop resistance and ultra-low dropout voltage of current source extend the operating time of 1× mode and optimize the efficiency of Li-ion battery in white

   产品概述 返回TOPqcf嘉泰姆

The CXLE8181 is a high efficiency and cost effective charge pump white LED driver. It supports up to 4 white LEDs and regulates a constant current for uniform intensity. The part maintains the high efficiency by utilizing a 1×/1.5× fractional charge pump and low dropout current sources. The small equivalent 1× mode open loop resistance and ultra-low dropout voltage of current source extend the operating time of 1× mode and optimize the efficiency of Li-ion battery in white LED applications.qcf嘉泰姆

qcf嘉泰姆

User can easily configure each LED current from 1.25mA to 20mA by a pulse dimming control. The dimming of white LEDs current can be achieved by applying a pulse signal to the EN/SET pin. There are totally 16 steps of current could be set by users. The operating voltage range is 2.7V to 5.5V. Internal soft-start circuitry effectively reduces the in-rush current while both start-up and mode transition.qcf嘉泰姆

qcf嘉泰姆

The CXLE8181 is available in Green TQFN-3×3-16L package and is specified over an ambient temperature range of -40℃</span> to +85℃</span>.qcf嘉泰姆

   产品特点 返回TOPqcf嘉泰姆

• Input Voltage Range: 2.7V to 5.5V
• Drives up to 4 LEDs at 20mA Each
• 16-Step Brightness Control
• High Efficiency by Fractional Conversion with
    1× and 1.5× Modes
• Automatic Charge Pump Mode Selection
• Switching Frequency: 1MHz
• 1% Typical LED Current Matching
• Internal Soft-Start Limits Inrush Current
• Low Input Noise and Low EMI
• Over-Current and Over-Temperature Protection
• Output Over-Voltage Protection
• Under-Voltage Lockout with Hysteresis

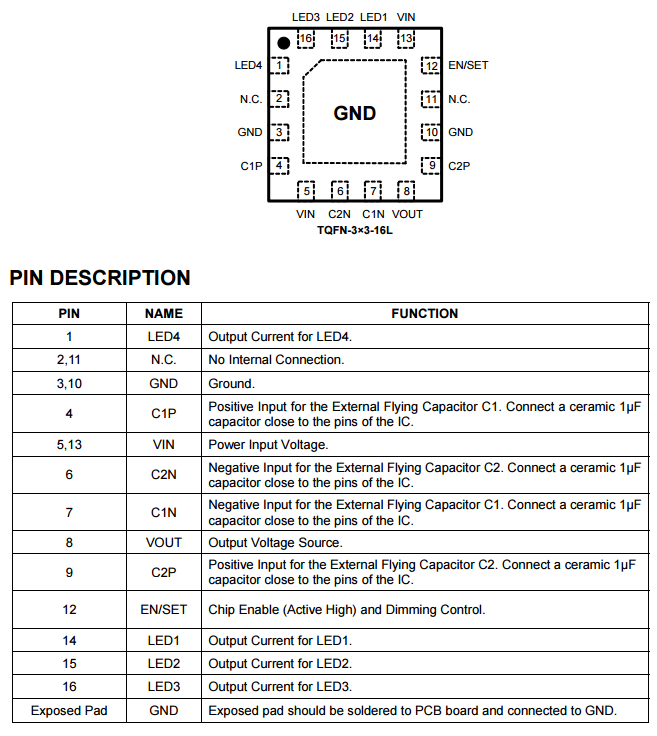

• Available in Green TQFN-3×3-16L Packageqcf嘉泰姆

   应用范围 返回TOPqcf嘉泰姆

Mobile Phone, DSC, MP3
White LED Backlighting
LCD Display Supplyqcf嘉泰姆

   技术规格书（产品PDF) 返回TOP qcf嘉泰姆

     需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持</span>！</span>
