音频功放
The APA2180,APA2180 is a stereo, fixed gain, single supply, and cap-free headphone driver, which is available in a WLCSP1.6x1.6-12and TDFN3x3-12 packages.
-
-
- 发布时间2015-7-14 19:33:23
- 发布作者
- 产品点击
- 参考价格1
产品详细
Features
Operating Voltage: 2.3V~5.5V
Supply Current
- IDD=1mA at VDD=3.6V
Low Shutdown Current
- IDD=5µA at VDD=3.6V
Ground Reference Output
- No Output Capacitor Required (for DC Blocking)
- Save the PCB Space
- Reduce the BOM Costs
- Improve the Low Frequency Response
Output Power 50mW/Ch into 16Ω at VDD=3.6V
High PSRR: 80dB at 217Hz
Fast Start-Up Time: 4ms
Integrate the De-pop Circuitry
Thermal Protection
Surface-Mount Packaging
WLCSP1.6x1.6-12
TDFN3x3-12
Lead Free and Green Devices Available

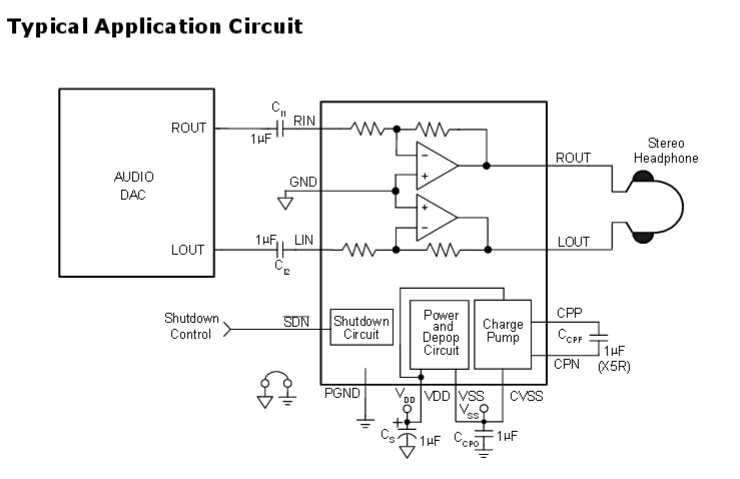

General Description
The APA2180,APA2180 is a stereo, fixed gain, single supply, and
cap-free headphone driver, which is available in a
WLCSP1.6x1.6-12and TDFN3x3-12 packages.
The APA2180 is ground-reference output and don’t need
the output capacitors for DC blocking. The advantages of
eliminating the output capacitor are saving the cost, elimi-
nating component height, and improving the low frequency
response.
The internal fixed gain setting (-1.5V/V) can minimize the
external component counts and save the PCB space. High
PSRR provides increased immunity to noise and RF
rectification.
The APA2180 is capable of driving 50mW at 3.6V into 16Ω
load and provides thermal protection.
相关产品
Part_No | Package & Pins | VDD Voltage (V) | IDD Supply Current (mA) | TSTART -UP (uS) | Output Power RL=32W (mW) | Output Power RL=2.5 KW (mW) | Total Harmonic Distortn Plus Noise (%) | Power Supply Rejection Ratio (dB) | Output Noise (uV) | Signal To Noise Ratio (dB) | Output Offset Voltage (mV) | |
min | max | |||||||||||
APA2171 | TSSOP-14 | 3 | 3.6 | 10 | 500 | 20 | 2.1 | 0.001 | 80 | 8 | 108 | 5 |
APA2172 | TSSOP-14 | 2.3 | 5.5 | 10 | 500 | 40 | 2.1 | 0.001 | 80 | 8 | 108 | 5 |
APA2174 | TQFN4x4-20A | 2.3 | 4.5 | 5 | 500 | NA | 2.1 | 0.002 | 90 | 10 | 105 | 8 |
APA2175 | TQFN4x4-20B | 2.3 | 4.5 | 5 | 16000 | NA | 2.1 | 0.003 | 80 | 15 | 102 | 8 |
"APA2176 | TQFN4x4-20B | 1.8 | 5.5 | 2 | 120 | 150 | NA | 0.03 | 82 | 15 | 95 | 5 |
APA2177 | WLCSP-16 | 2.4 | 5.5 | 2.5 | 4000 | 22 | NA | 0.02 | 90 | 7 | 95 | 0.5 |
APA2178 | WLCSP2x2-16 | 1.8 | 4.5 | 5 | 120 | 145 | NA | 0.02 | 75 | 15 | 100 | 5 |
APA2180 | WLCSP1.6x1.6-12 | 2.3 | 5.5 | 1 | 4000 | 60 | NA | 0.03 | 80 | 27 | 95 | 8 |
APA2181 | WLCSP1.6x1.6-12 | 2.3 | 5.5 | 1 | 4000 | 60 | NA | 0.03 | 80 | 27 | 95 | 8 |
APA2173 | MSOP-10P | 2.3 | 5.5 | 10 | 500 | 60 | 2.1 | 0.001 | 80 | 8 | 108 | 5 |
