正电压输出三端稳压器CXLD64026手持设备GRS接收器无线局域网CMOS激光微调技术低功耗高精度 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|

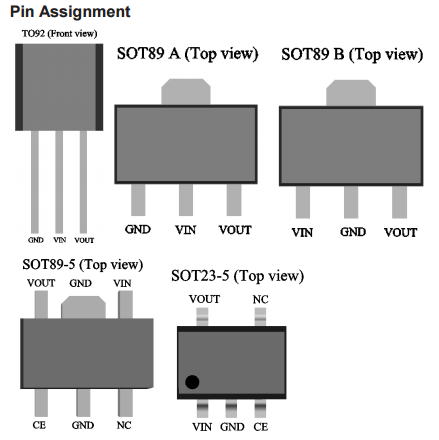

目录7.相关产品 产品概述 返回TOP The CXLD64026 series is a group of positive voltage output, three-pin regulators, that provide a high current even when the input/output voltage differential is small. Low power consumption and high accuracy is achieved through CMOS and laser trimming technologies. The CXLD64026 consists of a high-precision voltage reference, an error amplification circuit, and a current limited output driver. Transient response to load variations have improved in comparison to the existing series. SOT89-3 SOT89-5 TO92 SOT223 TO252 TO263 and TO220 packages are available产品特点 返回TOP Low voltage drop: 0.06V@100mA High input voltage: 8.5V Low temperature coefficient Low Quiescent Current: 2uA at 5.0V Output voltage accuracy: tolerance ±2% 应用范围 返回TOP Battery-powered equipment Hand-Hold Equipment GRS Receivers Wireless LAN 技术规格书（产品PDF) 返回TOP 需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！ 产品封装图 返回TOP
电路原理图 返回TOP
相关芯片选择指南 返回TOP 更多同类产品......
