双通道3.3V/500mA和1.8V/300mA线性稳压器CXLD64147内置限流保护快速瞬态响应 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|

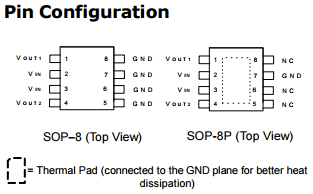

目录7.相关产品 产品概述 返回TOP The CXLD64147 is a dual low dropout regulator with output1 with 3.3V/0.5A and output2 with 1.8V/0.3A output capability. In order to obtain lower dropout voltage and faster transient response, which is critical for low voltage applications, the CXLD64147 has been optimized. The dropout voltages are guaranteed at 0.6V at 0.5A for output1 and 0.9V at 0.3A for output 2. Current limit is trimmed to ensure specified output current and controlled shortcircuit current. On-chip thermal limiting provides protection against any combination of overload that would create excessive junction temperatures. The CXLD64147 regulator comes in a SOP-8 and SOP-8P packages.产品特点 返回TOP · Fixed Output Voltage : VOUT1=3.3V/500mA VOUT2=1.8V/300mA · Low Dropout Voltage (Defined as the Minimum Input/Output Voltage difference): Output 1 Dropout Voltage : 0.6V (at 500mA) Output 2 Dropout Voltage : 0.9V (at 300mA) · Stable with 4.7mF Output Capacitor(at VOUT1) Stable with 2.2mF Output Capacitor(at VOUT2) · Built-In Thermal Protection · Built-In Current-Limit Protection · Fast Transient Response · Short Setting Time · SOP-8 and SOP-8P Packages Available · Lead Free and Green Devices Available (RoHS Compliant) 应用范围 返回TOP · Desktop Computer · Networking Systems · Optical Data Storage Systems 技术规格书（产品PDF) 返回TOP 需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！ 产品封装图 返回TOP
电路原理图 返回TOP
相关芯片选择指南 返回TOP 更多同类产品......
