300mA输出电流CXLD64335正压输出低功耗低压差的稳压器折叠短路保护热保护和输出电流限制功能 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
目录7.相关产品 产品概述 返回TOP CXLD64335 series is a group of positive voltage output, low power consumption, low dropout voltage regulator. It can provide 300mA output current when input / output voltage differential drops to 600mV (Vout= 3.3V), and it also provides foldback short-circuit protection, thermal protection and output current limit function. The very low power consumption of CXLD64335 (Iq=10uA)can greatly improve natural life of batteries. CXLD64335can provide output value in the range of 1.2V~5.0V in 0.1V steps. It also can customize on command. CXLD64335includes high accuracy voltage reference, error amplifier, current limit circuit and output driver module. CXLD64335has well load transient response and good temperature characteristic, And it uses trimming technique to guarantee output voltage accuracy within±2%.产品特点 返回TOP Low Power Consumption: 10uA(Typ.) Maximum Output Current: 500mA Small Dropout Voltage 600mV@300mA (Vout=3.3V) 1.2V@500mA (Vout=3.3V) Input Voltage Range: 3V~16V Output Voltage Range: 1.2V~5.0V (customized on command in 0.1V steps) Highly Accurate:±2%(±1% customized) Output Current Limit: 650mA 应用范围 返回TOP Battery Powered equipment Power Management of MP3、PDA、DSC、 Mouse、PS2 Games Reference Voltage Source Regulation after Switching Power 技术规格书（产品PDF) 返回TOP 需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！ 产品封装图 返回TOP

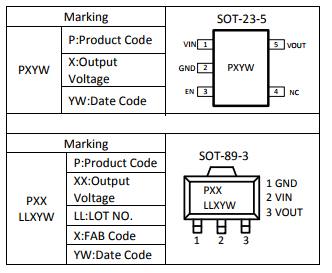

电路原理图 返回TOP
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
CMOS型低压差线性稳压器(CMOS Type LDO Linear Regulator ) |
||||||||
|
Part No. |
VIN |
VOUT |
Accu. |
PSRR |
IQ |
IOUT(Max) |
Package |
Features |
|
36V |
3.3,5,12V, ADJ |
±2% |
10μA |
150mA |
SOT89-3 TO92 |
HV Three-Terminal Positive Regulator |
||
|
1.5~8V |
1.1~5.5V |
±2% |
1μA |
200mA |
SOT23-3 SOT89-3 TO92 |
Low Power Consumption, Low Dropout Voltage |
||
|
Max 16V |
1.1~5.0V |
±2% |
2μA |
250mA |
SOT23-3 SOT23-5 SOT89-3 |
Low Power Consumption, Low Dropout Voltage |
||
|
Max 16V |
1.2~5.0V |
±2% |
3μA |
250mA |
SOT23-3 SOT89-3 |
Low Power Consumption, Low Dropout Voltage |
||
|
Max 8V |
1.2~6V |
±2% ±1% |
3μA |
250mA |
SOT89-3 SOT23-3 TO92 |
Low Dropout Voltage, Low lq |
||
|
Max 6V |
2~6V |
±2% |
74dB@100Hz |
35μA |
300mA |
DFN1x1-4L SC70-5 SOT23-5 |
Low Noise, High PSRR |
|
|
Max 6V |
1.5~4.5V |
±2% |
73dB@100Hz |
35μA |
300mA |
DFN1x1-4L SOT23-5 SC70-5,SOT23-3 |
Low Noise, High PSRR,Output Discharge |
|
|
Max 6V |
1.0~4.5V |
±2% |
70dB@100Hz |
35μA |
300mA |
SOT23-5 SC70-5 |
Low Noise, High PSRR,Output Discharge |
|
|
2~6V |
1.2~5V, ADJ |
±2% ±1% |
80dB@217Hz 78dB@1KHz |
90μA |
300mA |
SOT23-5 SC70-5 |
RF LDO, Ultra Low Noise,High PSSR,Output Discharge |
|
|
2~6V |
1.2~5V |
±2% ±1% |
78dB@217Hz |
90μA |
300mA |
SOT23-3 SOT89-3 SOT223-3 |
Ultra Fast, Ultra Low Noise, High PSSR,Output Discharge |
|
|
2~6V |
1.2~5V |
±2% ±1% |
78dB@217Hz |
90μA |
300mA |
SOT23-5 SC70-5 |
RF LDO, Ultra Low Noise, High PSSR,Output Discharge |
|
|
2~6V |
1.2~5V |
±2% ±1% |
70dB@1KHz |
90μAx2 |
300mA x 2 |
SOT23-6 ESOP8 |
Dual Channels LDO, Output Discharge |
|
|
Max 6V |
1.5~4.5V |
±2% ±1% |
73dB@100Hz |
20μAx2 |
300mA x 2 |
SOT23-6 |
Dual Channels LDO, Output Discharge |
|
|
4.75~40V |
1.8~10V |
±2% |
6μA |
500mA |
SOT89-3 |
HV, Low Power Consumption, Low Dropout Voltage |
||
|
4.75~40V |
1.8~10V |
±2% |
6μA |
500mA |
SOT89-3 |
HV, Low Power Consumption, Low Dropout Voltage |
||
|
Max 8V |
1.2~4.5V |
±2% ±1% |
66dB@100Hz |
75μA |
500mA |
SOT89-3 SOT23-5 |
Low Noise,High PSRR, Output Discharge |
|
|
Max 6V |
1.5~4.5V |
±2% |
73dB@100Hz |
20μA |
500mA |
SOT89-3 |
Low Noise,Low Dropout,High PSRR,Output Discharge |
|
|
Max 6V |
1.2~4.5V |
±2% |
72dB@1KHz |
30μA |
500mA |
SC70-5 SOT23-5 |
Low Noise,High PSRR Fast Response,Output Discharge |
|
|
Max 6V |
1.2~4.5V |
±2% |
72dB@1KHz |
30μAx2 |
500mAx2 |
SOT23-6 |
Dual Channels LDO |
|
|
2.5~6V |
1.0~5.0V |
±2% ±1% |
70dB@100Hz |
70μA |
1A |
SOT223-3 TO252-3 |
1A Very Low Dropout Low Noise High PSRR |
|
|
Max 6V |
1.2~5.0V |
±2% |
100μA |
1A |
SOT89-3 SOT23-5 |
Low Noise, Low Dropout,High PSRR |
||
|
Max 6V |
1.2~5.0V |
±2% |
100μA |
1.5A |
SOT223 |
Low Noise, Low Dropout,High PSRR |
||
|
Max 18V |
1.2~5.0V |
±2% |
3μA |
2A |
SOT223 TO252 |
2A Low Dropout , Low lq |
||
|
Max 18V |
1.2~5.0V |
±2% |
3μA |
2A |
SOT223 TO252 |
2A Low Dropout , Low lq |
||
|
~6V |
1.2V |
±2% |
3μA |
800mA |
SOT89-3 |
800mA-Low-Dropout Regulator |
||
|
~16V |
1.2V |
±2% |
3μA |
500MA |
SOT23-5 SOT89-3 |
16V 500mA Low Consumption |
||
|
CXLD64336 |
~40V |
1.2V |
±2% |
3μA |
150MA |
SOT89-3,SOT23-5 |
Low Power Consumption, Low Dropout Voltage |
|
