CXCO4326 CXCO4327是一种具有开漏输出的低压轨对轨CMOS比较器。保证在2.7V至8V电源下运行。在5V电源电压下，电流消耗低至3.5μA。因此非常适合于便携式电子设备的应用。
·保证2.7V至8V的性能
明排输出
·输入轨外共模
5V电源下的低电源电流为3.5μA
-
[ CXCO4326 ]
目录
7.相关产品
产品概述 返回TOP
The CXCO4326 CXCO4327 is a low voltage rail-to-rail CMOS comparator with open-drain output. It is guaranteed to operate from 2.7V to 8V power supply. The current consumption is as low as 3.5μA at 5V supply voltage. So it is very suitable for portable electronic devices applications. CXCO4326 CXCO4327 is available in the SOT-23-5 and SC-70-5 package.
产品特点 返回TOP
„ Guaranteed 2.7V to 8V Performance
„ Open Drain Output
„ Input Common Mode Beyond the Rails
„ Low Supply Current 3.5μA at 5V Power Supply
„ Operating Temperature Range -40°C to +85°C
„ SOT-23-5 and SC-70-5 package available
应用范围 返回TOP
„ Mobile communications
„ Notebooks and PDA’s
„ Battery powered electronics
„ General purpose portable device
„ General purpose low voltage applications
技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

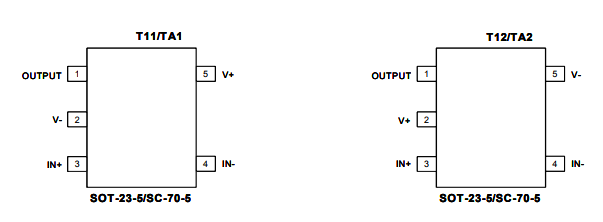

产品封装图 返回TOP
电路原理图 返回TOP
a
相关芯片选择指南 返回TOP 更多同类产品......
|
Comparator |
|||||||||
|
Part NO. |
VDD (V） min. |
VDD (V) max. |
CH |
IOUT (mA) |
TPHL (ns) |
TPLH (ns) |
Offset (mV) |
Note |
Package |
|
2.7 |
6 |
1 |
36 |
600 |
700 |
1.7 |
Open Drain Output |
SOT-23-5/SC-70-5 |
|
|
2.7 |
8 |
1 |
45 |
1800 |
3500 |
1.5 |
Open Drain Output |
SOT-23-5/SC-70-5 |
|
|
2.7 |
8 |
1 |
-- |
3000 |
7000 |
1.5 |
Push-Pull Output |
SOT-23-6 |
|
|
2.7 |
8 |
2 |
45 |
1800 |
3500 |
1.5 |
Open Drain Output |
TDFN2X2-8/SOT-23-8 |
|
