The CXCP5384 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 4.5V.This device is suitable for use as a load switch or in PWM applications.
1.）VDS = -30V,ID = -12A
RDS(ON) < 25mΩ @ VGS=-4.5V
RDS(ON) < 16mΩ @ VGS=-10V
2.）High Power and current handing capability
3.）Lead free product is acquired
4.）Surface mount package
-
[ CXCP5384 ]
目录
1.产品概述 2.产品特点
3.应用范围 4.下载产品资料PDF文档
5.产品封装图 6.电路原理图
7.功能概述 8.相关产品
一,产品概述(General Description)
The CXCP5384 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 4.5V.
This device is suitable for use as a load switch or in PWM applications.
二.产品特点(Features)
1.）VDS = -30V,ID = -12A
RDS(ON) < 25mΩ @ VGS=-4.5V
RDS(ON) < 16mΩ @ VGS=-10V
2.）High Power and current handing capability
3.）Lead free product is acquired
4.）Surface mount package
三,应用范围 (Applications)
PWM applications
Load switch
Power management
四.下载产品资料PDF文档
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

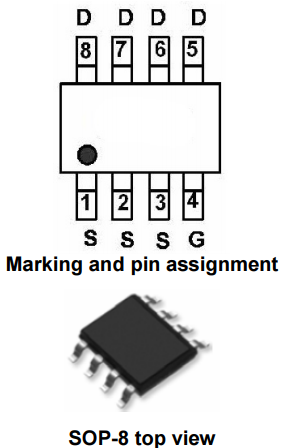

五,产品封装图 (Package)
六.电路原理图
七,功能概述
|
Parameter |
Symbol |
Limit |
Unit |
|
Drain-Source Voltage |
VDS |
-30 |
V |
|
Gate-Source Voltage |
VGS |
±20 |
V |
|
Drain Current-Continuous |
ID |
-12 |
A |
|
(Note 1) |
IDM |
-48 |
A |
|
Maximum Power Dissipation |
PD |
3 |
W |
|
Operating Junction and Storage Temperature Range |
TJ,TSTG |
-55 To 150 |
℃ |
