CXES4274是便携式多媒体设备的音频点击和弹出消除器。从1.7伏工作到3伏。6V电源，CXES4274连接到现有系统放大器的输出，并在启动和关闭期间提供低阻抗接地路径。输入INL和INR接受电压从VDD波动到低于VDD的5.5V。有关更多信息，请参阅设置电源电压部分。上电和下电瞬态被分流到地面，以防止发出咔哒声和砰砰声。CXES4274具有两个由静音控制的低阻抗模拟开关，可打开和关闭开关。开关在正常工作时打开，对输出信号没有影响。在放大器的启动和关闭过程中，可以激活CXES4274，使输出对地短路，防止咔哒声和砰砰声通过耳机拉电流。
电源电压范围从1.7V到3.6V
·低静态电流1毫安
·通过设定销可调整关闭时间
·快速开启时间：100us（典型值）
·低开关电阻：0.3W
·无失真，点击和弹出消除
-
[ CXES4274 ]
目录
7.相关产品
产品概述 返回TOP
The CXES4274 is an audio click-and-pop eliminator for portable multimedia devices. Operating from a 1.7V to 3. 6V supply, the CXES4274 connects to the output of the existing system amplifier and provides a low-impedance path to ground during startup and shutdown. The inputs INL and INR accept voltage swings from VDD to 5.5V below VDD. See the Setting the Supply Voltage section for more information. The power-up and power down transients are shunted to ground to prevent clicks and pops from becoming audible. The CXES4274 features two low-impedance analog switches controlled by MUTE that opens and closes the switches. The switches are open during normal operation and have no impact on the output signal.During startup and shutdown of the amplifier, the CXES4274 can be activated to short the outputs to ground and prevent clicks and pops from pulling current through the headphones.
产品特点 返回TOP
· Wide supply voltage range from 1.7V to 3.6V
· Low quiescent current 1mA
· Adjustable turn off time by SET pin
· Fast turn on time : 100us(typ)
· Low switch resistance :0.3W
· Distortion-Free, Click-and-Pop Elimination
· Available in WLCSP1.42x0.92 - 6 Packages
· Lead Free Green Devices Available (RoHS Compliant)
应用范围 返回TOP
· Smart Phones
· Tablet PCs
· Portable Media Players

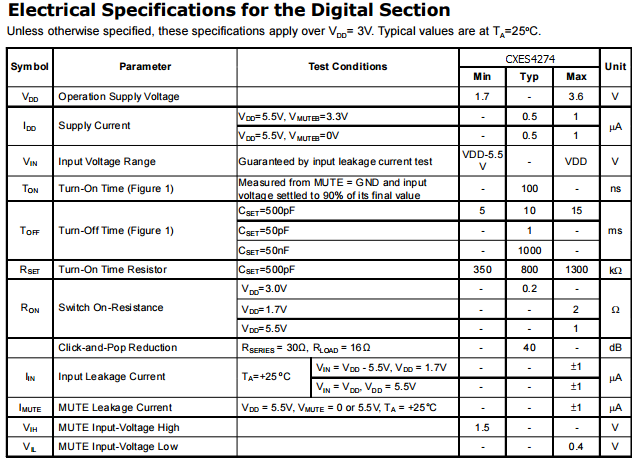

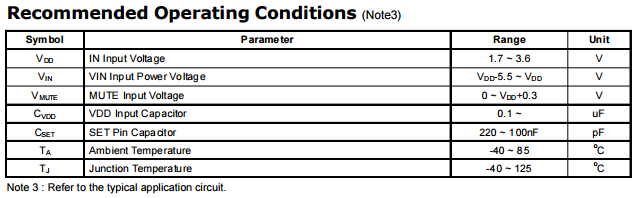

技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！
产品封装图 返回TOP
电路原理图 返回TOP
