CXLD6445系列是一款基于CMOS技术开发的正压稳压器，具有低压差、高输出电压精度和低功耗的特点。内置低导通电阻晶体管提供低漏失电压和大输出电流，内置过电流保护器防止负载电流超过输出晶体管的电流电容。开/关电路确保电池寿命长
-
[ 产品资料下载 ]
一.目录
1.产品概述 2.产品特点 3.应用范围 4.技术规格书下载（PDF文档）
二.产品概述
The CXLD6445 Series is a positive voltage regulator with a low dropout voltage,high output voltage accuracy,and low crrent consumption developed based on CMOS technology. A built-in low on-resistance transistor provides a low dropout voltage and large output current, a built-in overcurrent protector prevents the load current from exceeding the current capacitance of the output transistor. An ON/OFF circuit ensures a long battery life. Compared with the voltage regulators using the conventional CMOS process, a larger variety of capacitors are available, including small ceramic capacitors.
三.产品特点
l Maximum Output Current: 800 mA （VIN≥VOUT(T)+1.0V）
l Dropout Voltage: 100mV@ IOUT =300mA,VOUT =5.0V
l Operating Voltage Range: 2V～6.5V
l Highly Accuracy: ±1％
l Low Current Consumption: During Operation: 82uA（TYP.） During Shutdown:0.1uA（TYP.）
l High Ripple Rejection: 65dB@1KHz (JTM6207C50)
l Line Regulation: 0.05％（TYP.）
l Small Packages: SOT-89-5,SOT23-5，SOT89-3
四.应用范围
l Power supply for DVD and CD-ROM drives
l Power supply for persona
l communication device
l Power supply for battery-powered devices
l Power supply for note PCs
五.技术规格书（产品PDF)
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

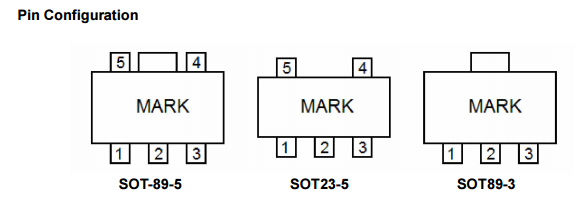

六.产品封装图
七.电路原理图
八.相关芯片选择指南 更多同类产品.....
|
CMOS LDO Linear Regulator（CMOS低压差线性稳压器） |
|||||||||
|
Part |
VIN |
IOUT |
VOUT |
Accu |
IQ |
PSRR |
VDROPOUT |
Application |
Package |
|
(Max) |
(1KHZ) |
3.3V@100mA |
|||||||
|
~6.5V |
300mA |
1.5-5.0V |
±2% |
8uA |
50dB |
150mV |
①②⑨⑪ |
SOT23-3/SOT89-3/ |
|
|
~6.5V |
800mA |
1.8-5.0V |
±1% |
80uA |
65dB |
35mV |
⑨⑰⑱⑲ |
SOT89-5/SOT23-5 |
|
|
~6.5V |
500mA |
1.2-5.0V |
±2% |
50uA |
70dB |
120mV |
①②③④⑨⑪⑫⑬ |
SOT23-5/SOT353 |
|
|
~6.5V |
300mA |
1.5-5.0V |
±2% |
8uA |
50dB |
110mV |
①②⑨⑪ |
SOT23-5 |
|
|
~6.5V |
300mA |
1.0-5.0V |
±1% |
8uA |
50dB |
105mV |
①②⑨⑪ |
SOT23-3/SOT89-3/SOT23/TO92 |
|
|
~6.5V |
800mA |
1.5-5.6V |
±1% |
100uA |
65dB |
35mV |
⑨⑰⑱⑲ |
SOT89-5/SOT23-5 |
|
|
~6.5V |
300mA |
1.2-5.0V |
±2% |
65uA |
62dB |
180mV |
①②③④⑨⑪⑫⑬ |
SOT23-5/SOT353/ |
|
|
~18V |
1000mA |
1.2-5.0V |
±2% |
50uA |
70dB |
80mV |
⑨⑭⑮⑯⑰ |
SOT223/TO252 |
|
|
~18V |
400mA |
1.2-5.0V |
±2% |
60uA |
60dB |
105mV |
①②③④⑨⑪⑫⑬ |
SOT23-5/SOT89-3 |
|
|
~18V |
400mA |
ADJ |
±2% |
60uA |
60dB |
105mV |
①②③④⑨⑪⑫⑬ |
SOT23-5/SOT89-3 |
|
|
~18V |
100mA |
3.0-5.0V |
±2.5% |
4uA |
60dB |
700mV(@50mA) |
③⑤⑥⑦⑧⑨⑩⑫ |
TO92/SOT89-3/SOT23-3 |
|
|
~18V |
150mA |
3.0-5.0V |
±2% |
3uA |
50dB |
580mV |
④⑤⑥⑩ |
TO92/SOT89-3/SOT23-3 |
|
|
~18V |
250mA |
3.0-5.0V |
±2% |
3uA |
50dB |
200mV |
⑨⑩⑪⑫⑭⑮⑯ |
TO92/SOT89-3/SOT23-3 |
|
|
~18V |
500mA |
1.5-5.0V |
±2% |
1.5uA |
50dB |
100mV |
①②④⑤⑨⑪ |
TO92/SOT89-3/SOT23-3 |
|
|
~18V |
300mA |
1.5-5.0V |
±2% |
0.7uA |
40dB |
160mV |
①②④⑤⑨⑪ |
SOT89-3/SOT23-3/SOT23-5 |
|
|
~18V |
300mA |
1.5-5.0V |
±2% |
5.5uA |
50dB |
160mV(VOUT=2.8V) |
①②⑨⑪ |
SOT23-5 |
|
|
~40V |
100mA |
3.0-5.0V |
±2% |
3uA |
50dB |
1100mV(@50mA) |
③⑤⑥⑦⑧⑨⑩⑫ |
TO92/SOT89-3 |
|
|
Applications：①Mobile phone②MID③Cordless phone④Radio communicationequipment⑤Wireless communication equipment ⑥Electronic Balance |
|||||||||
|
⑦Toys⑧Reference voltage⑨Battery powered equipment⑩Ammeter⑪Camera, Video camera⑫Portable games⑬Reference voltage sources |
|||||||||
|
⑭Post Regulator for Switching DC/DC Converter⑮High-efficiency linear regulators⑯Battery Charger⑰PC⑱Communication tools |
|||||||||
|
⑲DVD or CD-ROM drivers★CXLD6449 OTP=165°CXLD6445 no OTP |
|||||||||
