CXLD64135是一个1A超低衰减线性稳压器。集成电路需要两个电源电压，一个是控制电路的控制电压（VCNTL），另一个是电源转换的主电源电压（VIN），以降低功耗并提供极低的压降。CXLD64135集成了许多功能。上电复位（POR）电路监测VCNTL和车辆识别号引脚上的电源电压，以防止错误操作。热关机和电流限制功能可保护设备免受热过载和电流过载的影响。POK表示输出电压状态，内部设置了延迟时间
-
[ 产品资料下载 ]
目录
7.相关产品
产品概述 返回TOP
The CXLD64135 is a 1A ultra low dropout linear regulator. The IC needs two supply voltages, one is the control voltage (VCNTL ) for the control circuitry, the other is the main supply voltage (VIN ) for power conversion, to reduce power dissipation and provide extremely low dropout voltage. The CXLD64135 integrates many functions. A Power-OnReset (POR) circuit monitors both supply voltages on VCNTL and VIN pins to prevent erroneous operations. The functions of thermal shutdown and current-limit protect the device against thermal and current over-loads. A POK indicates that the output voltage status with a delay time set internally. It can control other converter for power sequence. The CXLD64135 can be enabled by other power systems. Pulling and holding the EN voltage below 0.4V shuts off the output. The CXLD64135 is available in a SOP-8P package which features small size as SOP-8 and an Exposed Pad to reduce the junction-to-case resistance to extend power range of applications.
产品特点 返回TOP
· Ultra Low Dropout - 0.12V (Typical) at 1A Output Current
· 0.8V Reference Voltage
· High Output Accuracy - ±1.5% over Line, Load, and Temperature Range
· Fast Transient Response
· Adjustable Output Voltage
· Power-On-Reset Monitoring on Both VCNTL and VIN Pins
· Internal Soft-Start
· Current-Limit and Short Current-Limit Protections
· Thermal Shutdown with Hysteresis
· Open-Drain VOUT Voltage Indicator (POK)
· Low Shutdown Quiescent Current (< 30mA )
· Shutdown/Enable Control Function

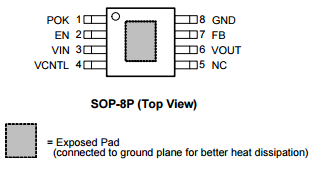

· Simple SOP-8P Package with Exposed Pad
· Lead Free and Green Devices Available (RoHS Compliant)
应用范围 返回TOP
· Motherboards, VGA Cards
· Notebook PCs
· Add-in Cards

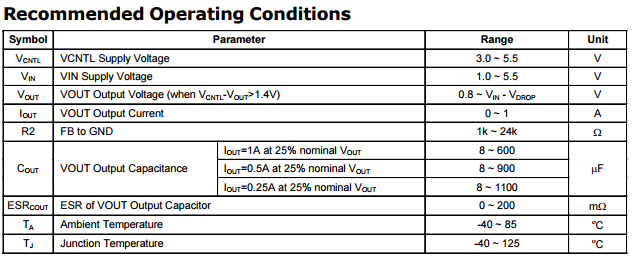

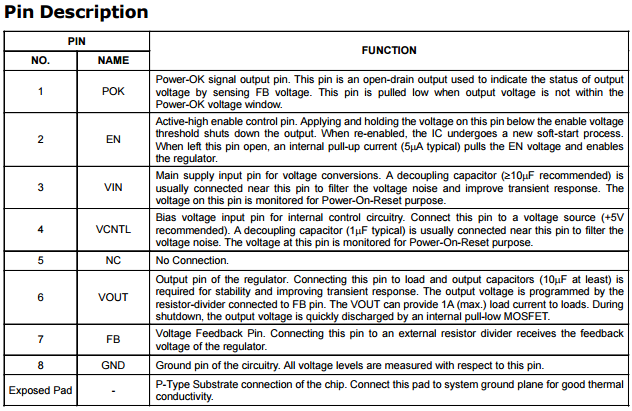

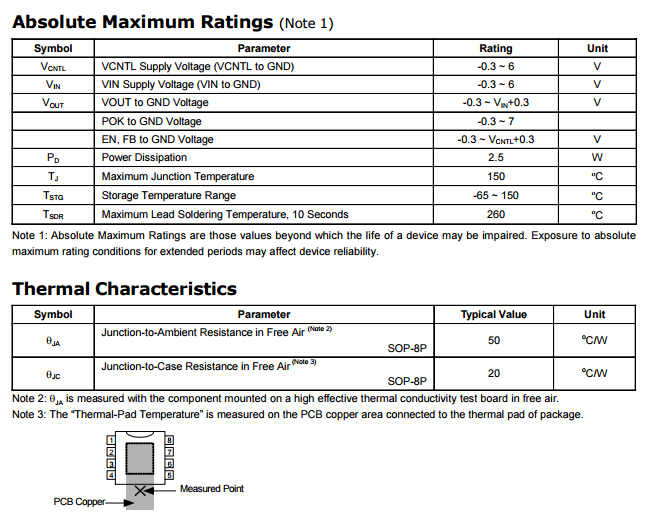

技术规格书（产品PDF) 返回TOP
