CXAO42137A CXAO42137C单CXAO42137B双CXAO42137D四是轨对轨输出电压反馈放大器，使用方便，成本低。它们的带宽和转换率通常在电流反馈放大器中找到。它们都具有宽的输入共模电压范围和输出电压摆幅，使得它们易于在低至2.5V的单电源上使用。尽管成本较低，但CXAO42137A系列提供了优异的整体性能。它们提供350MHz（G=+1）的宽频带，125MHz（G=+1）的0.1dB平坦度，4.3mA/放大器的典型低功耗。CXAO42137A系列具有低失真和快速稳定特性，是缓冲高速a/D或D/a转换器的理想选择。CXAO42137C具有断电禁用功能，可将电源电流降低至75μa。这些功能使CXAO42137C非常适合于尺寸和功率都至关重要的便携式和电池供电应用。在-40℃至+125℃的扩展温度范围内，所有温度都有规定。
•轨对轨输出
2mV典型VOS
•高速
350MHz，-3dB带宽（G=+1）
265V/μs，转换率
2V步进，32ns稳定时间至0.1%
•电源电压范围：2.5V至5.5V
•输入电压范围：-0.2V至+3.8V，VS=5V
•优秀的视频规格（RL=150Ω，G=+2）
增益平坦度0.1dB至70MHz
差增益：0.004%，差相位：0.08度
•低供电电流
4.3mA/放大器（典型）
-
[ CXAO42137A ]
目录
7.相关产品
产品概述 返回TOP
The CXAO42137A/CXAO42137C(single), CXAO42137B (dual), CXAO42137D (quad) are rail-to-rail output voltage feedback amplifiers offering ease of use and low cost. They have bandwidth and slew rate typically found in current feedback amplifiers. All have a wide input common mode voltage range and output voltage swing, making them easy to use on single supplies as low as 2.5V.Despite being low cost, the CXAO42137A series provide excellent overall performance. They offer wide bandwidth to 350MHz (G = +1) along with 0.1dB flatness out to 125MHz (G = +1) and offer a typical low power of 4.3mA/amplifier.The CXAO42137A series are low distortion and fast settling make them ideal for buffering high speed A/D or D/A converters. The CXAO42137C has a power-down disable feature that reduces the supply current to 75μA. These features make the CXAO42137C ideal for portable and battery-powered applications where size and power are critical. All are specified over the extended -40℃ to +125℃ temperature range.
产品特点 返回TOP
• Rail-to-Rail Output
2mV Typical VOS
• High Speed
350MHz, -3dB Bandwidth (G = +1)
265V/μs, Slew Rate
32ns Settling Time to 0.1% with 2V Step
• Supply Voltage Range: 2.5V to 5.5V
• Input Voltage Range: -0.2V to +3.8V with VS = 5V
• Excellent Video Specs (RL = 150Ω, G = +2)
Gain Flatness 0.1dB to 70MHz
Diff Gain: 0.004%, Diff Phase: 0.08 Degree
• Low Supply Current
4.3mA/Amplifier (TYP)
75μA Shutdown Current for CXAO42137C
• Small Packaging
CXAO42137A Available in SOIC-8 and SOT-23-5
CXAO42137B Available in SOIC-8 and MSOP-8
CXAO42137C Available in SOIC-8 and SOT-23-6
CXAO42137D Available in SOIC-14 and TSSOP-14
应用范围 返回TOP
Imaging
Photodiode Preamp
Professional Video and Cameras
Hand Sets
DVD/CD
Base Stations
Filters
A - to - D Driver
技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

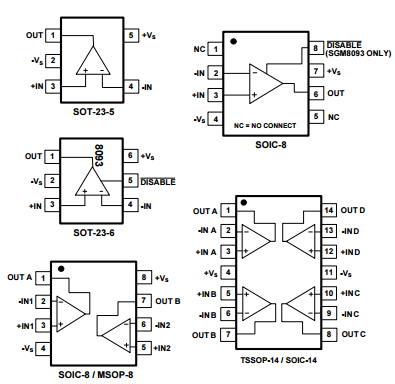

产品封装图 返回TOP
电路原理图 返回TOP
相关芯片选择指南 返回TOP 更多同类产品......
|
高速运算放大器 |
||||||||||||
|
Part No. |
CH |
SHDN |
VCC (Min) |
VCC (Max) |
BW @-3dB (MHz) |
VOS (mV) |
Iq/CH (mA) |
IB (pA) |
GBP (MHz) |
SR (V/μs) |
ENOIS E(nV/√Hz) |
Package |
|
1 |
N |
2.5 |
5.5 |
250 |
8 |
2.3 |
6 |
130 |
8.1 |
SOT-23-5 SOIC-8 |
||
|
2 |
N |
2.5 |
5.5 |
250 |
8 |
2.3 |
6 |
130 |
8.1 |
SOIC-8 MSOP-8 |
||
|
1 |
Y |
2.5 |
5.5 |
250 |
8 |
2.3 |
6 |
130 |
8.1 |
SOT-23-6 SOIC-8 |
||
|
4 |
N |
2.5 |
5.5 |
250 |
8 |
2.3 |
6 |
130 |
8.1 |
SOIC-14 TSSOP-14 |
||
|
2 |
Y |
2.5 |
5.5 |
250 |
8 |
2.3 |
6 |
130 |
8.1 |
MSOP-10 |
||
|
1 |
N |
2.5 |
5.5 |
500 |
8 |
8.2 |
6 |
420 |
5.6 |
SOT-23-5 SOIC-8 |
||
|
2 |
N |
2.5 |
5.5 |
500 |
8 |
8.2 |
6 |
420 |
5.6 |
SOIC-8 |
||
|
1 |
Y |
2.5 |
5.5 |
500 |
8 |
8.2 |
6 |
420 |
5.6 |
SOT-23-6 SOIC-8 |
||
|
1 |
N |
2.5 |
5.5 |
350 |
8 |
4.3 |
6 |
265 |
5.9 |
SOT-23-5 SOIC-8 |
||
|
2 |
N |
2.5 |
5.5 |
350 |
8 |
4.3 |
6 |
265 |
5.9 |
SOIC-8 MSOP-8 |
||
|
1 |
Y |
2.5 |
5.5 |
350 |
8 |
4.3 |
6 |
265 |
5.9 |
SOT-23-6 SOIC-8 |
||
|
4 |
N |
2.5 |
5.5 |
350 |
8 |
4.3 |
6 |
265 |
5.9 |
SOIC-14 TSSOP-14 |
||
|
1 |
N |
4.5 |
12 |
110 |
18 |
7.5 |
57 |
140 |
65 |
SOT-23-5 SOIC-8 MSOP-8 |
||
|
2 |
N |
4.5 |
12 |
110 |
18 |
7.5 |
57 |
140 |
65 |
SOIC-8 MSOP-8 |
||
|
4 |
N |
4.5 |
5.5 |
110 |
18 |
7.5 |
57 |
140 |
65 |
SOIC-14 TSSOP-14 |
||
