CXAO42156A （单台）、CXAO42156B（双台）、CXAO42156C（单台停机）和CXAO42156D（四台）是低噪声、低电压和低功耗的运算放大器，可被广泛应用。CXAO42156A/B/C/D具有3MHz的高增益带宽积和1.7V/μs的转换速率。CXAO42156C具有断电禁用功能，可将电源电流降低到小于1μa。
CXAO42156A/B/C/D设计用于在低电压和低噪声系统中提供最佳性能。它们提供轨对轨输出，使其摆动成重载。输入共模电压范围包括接地，CXAO42156A/B/C/D的最大输入偏置电压为3mV。它们是在扩展的工业温度范围（-40℃到+125℃）内指定的。工作电源范围为2V至5.5V。
单一版本的CXAO42156A有绿色SC70-5、SOT-23-5和SOIC-8封装。CXAO42156C有绿色SOT-23-6和SOIC-8两种型号。双版本CXAO42156B有绿色SOIC-8和MSOP-8两个软件包。四版本CXAO42156D有绿色SOIC-14和TSSOP-14两种包装。
轨对轨输入和输出
3mV最大VOS
•高增益带宽产品：3MHz
•高转换率：1.7V/μs
•2V步进，沉降时间为0.1%：0.5μs
•过载恢复时间：2.3μs
•低噪声：1kHz时17.5nV/√Hz
•电源电压范围：2V至5.5V
-
[ CXAO42156A ]
目录
7.相关产品
产品概述 返回TOP
The CXAO42156A (single), CXAO42156B (dual), CXAO42156C (single with shutdown) and CXAO42156D (quad) are low noise, low voltage, and low power operational amplifiers, that can be designed into a wide range of applications. The CXAO42156A/B/C/D have a high gain-bandwidth product of 3MHz and a slew rate of 1.7V/μs. The CXAO42156C has a power-down disable feature that reduces the supply current to less than 1μA.
The CXAO42156A/B/C/D are designed to provide optimal performance in low voltage and low noise systems. They provide rail-to-rail output swing into heavy loads. The input common mode voltage range includes ground, and the maximum input offset voltage is 3mV for CXAO42156A/B/C/D. They are specified over the extended industrial temperature range (-40℃ to +125℃). The operating supply range is from 2V to 5.5V.
The single version, CXAO42156A is available in Green SC70-5, SOT-23-5 and SOIC-8 packages. CXAO42156C is available in Green SOT-23-6 and SOIC-8 packages. The dual version CXAO42156B is available in Green SOIC-8 and MSOP-8 packages. The quad version CXAO42156D is available in Green SOIC-14 and TSSOP-14 packages.
产品特点 返回TOP
• Rail-to-Rail Input and Output
3mV Maximum VOS
• High Gain-Bandwidth Product: 3MHz
• High Slew Rate: 1.7V/μs
• Settling Time to 0.1% with 2V Step: 0.5μs
• Overload Recovery Time: 2.3μs
• Low Noise: 17.5nV/√Hz at 1kHz
• Supply Voltage Range: 2V to 5.5V
• Input Voltage Range: -0.1V to +5.6V with VS = 5.5V
• Low Supply Current
CXAO42156A/3: 270μA (TYP)
CXAO42156B/4: 210μA/Amplifier (TYP)
Less than 1μA Shutdown Current for CXAO42156C
• Small Packaging
CXAO42156A Available in Green SC70-5, SOT-23-5
and SOIC-8
CXAO42156B Available in Green MSOP-8 and SOIC-8
CXAO42156C Available in Green SOT-23-6 and
SOIC-8
CXAO42156D Available in Green TSSOP-14 and
SOIC-14
应用范围 返回TOP
Sensors
Audio
Active Filters
A/D Converters
Communications
Test Equipment
Cellular and Cordless Phones
Laptops and PDAs
Photodiode Amplification
Battery-Powered Instrumentation
技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

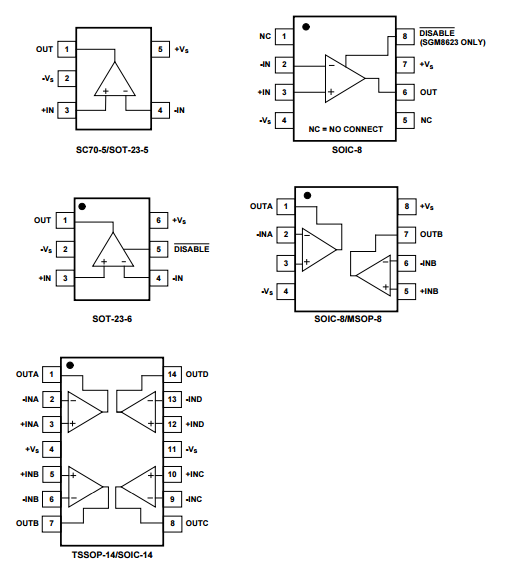

产品封装图 返回TOP
电路原理图 返回TOP
相关芯片选择指南 返回TOP 更多同类产品......
|
低噪声运算放大器 |
|||||||||||
|
Part No. |
CH |
SHDN |
VCC (Min) |
VCC(Max) |
VOS (mV) |
Iq/CH (μA) |
IB(pA) |
GBP(MHz) |
SR(V/μs) |
ENOISE (nV/√Hz) |
Package |
|
1 |
N |
2.1 |
5.5 |
4 |
1.2 |
1 |
11 |
8.5 |
12.5 |
SOT-23-5 SOIC-8 SC70-5 |
|
|
2 |
N |
2.1 |
5.5 |
4 |
1.1 |
1 |
11 |
8.5 |
12.5 |
SOIC-8 MSOP-8 TSSOP-8 |
|
|
1 |
Y |
2.1 |
5.5 |
4 |
1.2 |
1 |
11 |
8.5 |
12.5 |
SOT-23-6 SOIC-8 |
|
|
4 |
N |
2.1 |
5.5 |
4 |
1.1 |
1 |
11 |
8.5 |
12.5 |
SOIC-14 TSSOP-14 |
|
|
1 |
N |
2 |
5.5 |
3 |
0.27 |
1 |
3 |
1.7 |
17.5 |
SOT-23-5 SOIC-8 SC70-5 |
|
|
2 |
N |
2 |
5.5 |
3 |
0.21 |
1 |
3 |
1.7 |
17.5 |
SOIC-8 MSOP-8 |
|
|
1 |
Y |
2 |
5.5 |
3 |
0.27 |
1 |
3 |
1.7 |
17.5 |
SOT-23-6 SOIC-8 |
|
|
4 |
N |
2 |
5.5 |
3 |
0.21 |
1 |
3 |
1.7 |
17.5 |
SOIC-14 TSSOP-14 |
|
|
1 |
N |
2 |
5.5 |
3.5 |
0.57 |
1 |
6 |
3.7 |
13 |
SOT-23-5 SOIC-8 SC70-5 |
|
|
2 |
N |
2 |
5.5 |
3.5 |
0.48 |
1 |
6 |
3.7 |
13 |
MSOP-8 SOIC-8 |
|
|
1 |
Y |
2 |
5.5 |
3.5 |
0.57 |
1 |
6 |
3.7 |
13 |
SOT-23-6 SOIC-8 |
|
|
4 |
N |
2.5 |
5.5 |
3.5 |
0.47 |
1 |
6 |
3.7 |
12 |
SOIC-14 TSSOP-14 |
|
|
1 |
N |
2.5 |
5.5 |
8 |
2.3 |
6 |
50 |
66 |
8.7@1MHz |
SOT-23-5 SOIC-8 |
|
|
2 |
N |
2.5 |
5.5 |
8 |
2.3 |
6 |
50 |
66 |
8.7@2MHz |
SOIC-8 MSOP-8 |
|
|
1 |
Y |
2.5 |
5.5 |
8 |
2.3 |
6 |
50 |
66 |
8.7@3MHz |
SOT-23-6 SOIC-8 |
|
|
4 |
N |
2.5 |
5.5 |
8 |
2.3 |
6 |
50 |
66 |
8.7@4MHz |
SOIC-14 TSSOP-14 |
|
|
2 |
Y |
2.5 |
5.5 |
8 |
2.3 |
6 |
50 |
66 |
8.7@5MHz |
MSOP-10 |
|
