   产品概述 返回TOPZmF嘉泰姆

The CXVD3399 CXVD3400 CXVD3401 low voltage, triple video filter is intended to replace passive LC filter and drivers with a low-cost integrated device. The 6th order filter provides much improved image quality compared to typical 2nd or 3rd order passive LC filters. The filters are especially suited for standard definition video signals, such as television and set-top box applications. The CXVD3399 CXVD3400 CXVD3401 can be directly driven by a DC coupled DAC output or an AC coupled signal. Internal diode clamps and bias circuitry may be used if AC-coupled inputs are required. The output can drive AC or DC coupled single (150Ω) or dual (75Ω) loads. DC coupling the outputs removes the need for output coupling capacitors.

   产品特点 返回TOPZmF嘉泰姆

Triple 6th-order 9.0MHz SD filters ZmF嘉泰姆

Drive Dual Video Load ZmF嘉泰姆

6dB Output Driver Gain ZmF嘉泰姆

Transparent Input Clamping ZmF嘉泰姆

AC or DC Coupled Inputs ZmF嘉泰姆

AC or DC Coupled Outputs ZmF嘉泰姆

Operates from 3.3V to 5.5VZmF嘉泰姆

   应用范围 返回TOPZmF嘉泰姆

Cable set-top boxes ZmF嘉泰姆

Satellite set-top boxes ZmF嘉泰姆

DVD Players ZmF嘉泰姆

Personal Video Recorders ZmF嘉泰姆

Communications Devices ZmF嘉泰姆

Video on DemandZmF嘉泰姆

   技术规格书（产品PDF) 返回TOP ZmF嘉泰姆

     需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！ZmF嘉泰姆

 ZmF嘉泰姆

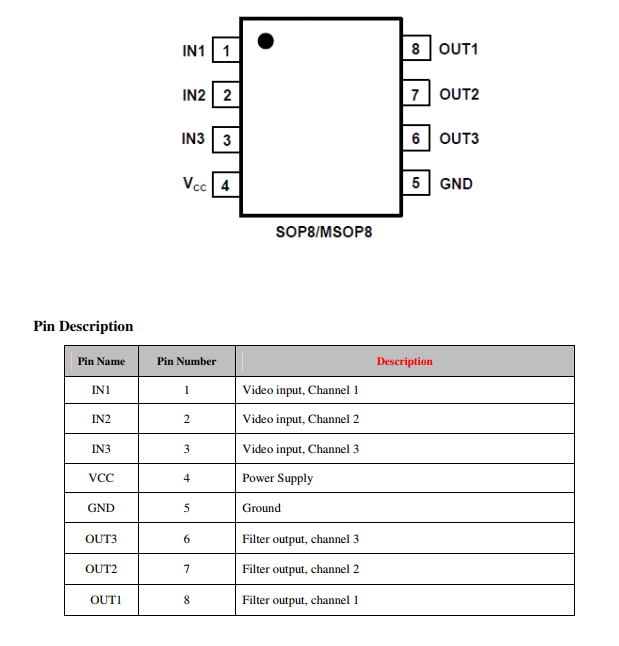

产品封装图 返回TOPZmF嘉泰姆

ZmF嘉泰姆

电路原理图 返回TOPZmF嘉泰姆

ZmF嘉泰姆
