The CXSU63137 integrates with a high-performance step-up converter, two linear-regulator controllers, a high voltage switch and one (CXSU63137), three (CXSU63137) or five (CXSU63137) high current operational amplifiers for TFT-LCD applications.The main step-up regulator is a current-mode, fixed-fre-quency PWM switching regulator. The 1.2MHz switching frequency allows the usage of low-profile inductors and ceramic capacitors to minimize the thickness of LCD panel designs.
The linear-regulator controllers used external transistors provide regulated the gate-driver of TFT-LCD VGON and VGOFF supplies.
The amplifiers are ideal for VCOM and VGAMMA applications, with
150m A peak output current drive, 10MHz bandwidth, and 13V/μs slew
rate. All inputs and outputs are rail-to-rail.
The CXSU63137/1/2 is available in a tiny 5mm x 5mm 32-pin QFN package (TQFN5x5-32).
二.产品特点(Features)bpx嘉泰姆

· 2.6V to 6.5V Input Supply Range bpx嘉泰姆

· Current-Mode Step-Up Regulator bpx嘉泰姆

- Fast Transient Response bpx嘉泰姆

- 1.2MHz Fixed Operating Frequency bpx嘉泰姆

· ±1.5% High-Accuracy Output Voltage bpx嘉泰姆

· 3A, 20V, 0.25W Internal N-Channel MOSFET bpx嘉泰姆

· High Efficiency bpx嘉泰姆

· Low Quiescent Current (0.6mA Typical) bpx嘉泰姆

· Linear-Regulator Controllers for VGON and VGOFF bpx嘉泰姆

· High-performance Operational Amplifiers bpx嘉泰姆

- ±150mA Output Short-Circuit Currentbpx嘉泰姆

- 13V/ms Slew Rate - 10MHz, -3dB Bandwidth bpx嘉泰姆

- Rail-to-Rail Inputs/Outputs bpx嘉泰姆

· Fault-Delay Timer and Fault Latch for All Regulator Outputs bpx嘉泰姆

· Over-Temperature Protection bpx嘉泰姆

· Available in Compact 32-pin 5mmx5mm Thin QFN Package (TQFN5x5-32) bpx嘉泰姆

· Lead Free Available (RoHS Compliant)
bpx嘉泰姆

三,应用范围 (Applications)bpx嘉泰姆

TFT LCD Displays for Monitors
TFT LCD Displays for Notebook Computers
Automotive Displays
四.下载产品资料PDF文档 bpx嘉泰姆

需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！
bpx嘉泰姆

QQ截图20160419174301.jpg bpx嘉泰姆

五,产品封装图 (Package)bpx嘉泰姆

Pin Function Description
bpx嘉泰姆

Pinbpx嘉泰姆	Namebpx嘉泰姆			Function Descriptionbpx嘉泰姆
Pinbpx嘉泰姆	CXSU63137bpx嘉泰姆	CXSU63137-1bpx嘉泰姆	CXSU63137-2bpx嘉泰姆	Function Descriptionbpx嘉泰姆
1bpx嘉泰姆	SRCbpx嘉泰姆	SRCbpx嘉泰姆	SRCbpx嘉泰姆	Switch Input. Source of the internal high-voltage P-channel MOSFET. Bypass SRC to PGND with a minimum of 0.1μF capacitor closed to the pins.bpx嘉泰姆
2bpx嘉泰姆	REFbpx嘉泰姆	REFbpx嘉泰姆	REFbpx嘉泰姆	Reference voltage output. Bypass REF to AGND with a minimum of 0.22μFcapacitor closed to the pins.bpx嘉泰姆
3bpx嘉泰姆	AGNDbpx嘉泰姆	AGNDbpx嘉泰姆	AGNDbpx嘉泰姆	Analog Ground for Step-Up Regulator and Linear Regulators. Connect to power ground (PGND) underneath the IC.bpx嘉泰姆
4bpx嘉泰姆	PGNDbpx嘉泰姆	PGNDbpx嘉泰姆	PGNDbpx嘉泰姆	Power Ground for Step-Up Regulator. PGND is the source of the main step-up n-channel power MOSFET. Connect PGND to the ground terminals of output capacitors through a short, wide PC board trace. Connect to analog ground (AGND) underneath the IC.bpx嘉泰姆
5bpx嘉泰姆	OUT1bpx嘉泰姆	OUT1bpx嘉泰姆	OUT1bpx嘉泰姆	Output of Operational-Amplifier 1bpx嘉泰姆
6bpx嘉泰姆	NEG1bpx嘉泰姆	NEG1bpx嘉泰姆	NEG1bpx嘉泰姆	Inverting Input of Operational-Amplifier 1bpx嘉泰姆
7bpx嘉泰姆	POS1bpx嘉泰姆	POS1bpx嘉泰姆	POS1bpx嘉泰姆	Non-inverting Input of Operational-Amplifier 1bpx嘉泰姆
8bpx嘉泰姆	NCbpx嘉泰姆	OUT2bpx嘉泰姆	OUT2bpx嘉泰姆	Output of Operational-Amplifier 2 of CXSU63137/CXSU63137. No internal connected of CXSU63137.bpx嘉泰姆
9bpx嘉泰姆	NCbpx嘉泰姆	NEG2bpx嘉泰姆	NEG2bpx嘉泰姆	Inverting Input of Operational-Amplifier 2 of CXSU63137/CXSU63137. No internal connected of CXSU63137.bpx嘉泰姆
10bpx嘉泰姆	ICbpx嘉泰姆	POS2bpx嘉泰姆	POS2bpx嘉泰姆	Non-inverting Input of Operational-Amplifier 2 of CXSU63137/CXSU63137. Internal connected to GND of CXSU63137bpx嘉泰姆
11bpx嘉泰姆	BGNDbpx嘉泰姆	BGNDbpx嘉泰姆	BGNDbpx嘉泰姆	Analog Ground for Operational Amplifiers. Connect to power ground (PGND) underneath the IC.bpx嘉泰姆
12bpx嘉泰姆	NCbpx嘉泰姆	NCbpx嘉泰姆	POS3bpx嘉泰姆	Non-inverting Input of Operational-Amplifier 3 of CXSU63137. No internal connected of CXSU63137/CXSU63137.bpx嘉泰姆
13bpx嘉泰姆	NCbpx嘉泰姆	NCbpx嘉泰姆	OUT3bpx嘉泰姆	Output of Operational-Amplifier 3 of CXSU63137. No internal connected ofCXSU63137/CXSU63137.bpx嘉泰姆
14bpx嘉泰姆	SUPbpx嘉泰姆	SUPbpx嘉泰姆	SUPbpx嘉泰姆	Power Input of Operational Amplifiers. Typically connected to VMAIN. Bypass SUP to BGND with a 0.1μF capacitor.bpx嘉泰姆
15bpx嘉泰姆	NCbpx嘉泰姆	POS3bpx嘉泰姆	POS4bpx嘉泰姆	Non-inverting Input of Operational-Amplifier 4 of CXSU63137. Non-inverting Input of Operational-Amplifier 3 of CXSU63137. No internal connected ofCXSU63137.bpx嘉泰姆
16bpx嘉泰姆	NCbpx嘉泰姆	NEG3bpx嘉泰姆	NEG4bpx嘉泰姆	Inverting Input of Operational-Amplifier 4 of CXSU63137. Inverting Input of Operational-Amplifier 3 of CXSU63137. No internal connected of CXSU63137.bpx嘉泰姆
17bpx嘉泰姆	NCbpx嘉泰姆	OUT3bpx嘉泰姆	OUT4bpx嘉泰姆	Output of Operational-Amplifier 4 of CXSU63137. Output of Operational-Amplifier 3 of CXSU63137. No internal connected of CXSU63137.bpx嘉泰姆
18bpx嘉泰姆	ICbpx嘉泰姆	ICbpx嘉泰姆	POS5bpx嘉泰姆	Non-inverting Input of Operational-Amplifier 5 of CXSU63137. Internal connected to GND of CXSU63137/CXSU63137.bpx嘉泰姆
19bpx嘉泰姆	NCbpx嘉泰姆	NCbpx嘉泰姆	NEG5bpx嘉泰姆	Inverting Input of Operational-Amplifier 5 of CXSU63137. No internal connected of CXSU63137/CXSU63137.bpx嘉泰姆
20bpx嘉泰姆	NCbpx嘉泰姆	NCbpx嘉泰姆	OUT5bpx嘉泰姆	Output of Operational-Amplifier 5 of CXSU63137. No internal connected ofCXSU63137/CXSU63137.bpx嘉泰姆
21bpx嘉泰姆	LXbpx嘉泰姆	LXbpx嘉泰姆	LXbpx嘉泰姆	N-Channel Power MOSFET Drain and Switching Node. Connect the inductor and Schottky diode to LX and minimize the trace area for lowest EMI.bpx嘉泰姆
22bpx嘉泰姆	INbpx嘉泰姆	INbpx嘉泰姆	INbpx嘉泰姆	Supply Voltage Input. Bypass IN to AGND with a 0.1μF capacitor. IN can range from 2.6V to 6.5V.bpx嘉泰姆
23bpx嘉泰姆	FBbpx嘉泰姆	FBbpx嘉泰姆	FBbpx嘉泰姆	Step-Up Regulator Feedback Input. Connect a resistive voltage-divider from the output (VMAIN) to FB to analog ground (AGND). Place the divider within 5mm of FB.bpx嘉泰姆
24bpx嘉泰姆	COMPbpx嘉泰姆	COMPbpx嘉泰姆	COMPbpx嘉泰姆	Step-Up Regulator Error-Amplifier Compensation Point. Connect a series RC from COMP to AGND.bpx嘉泰姆

PinFunction Description
bpx嘉泰姆

Pinbpx嘉泰姆	Namebpx嘉泰姆			Function Descriptionbpx嘉泰姆
Pinbpx嘉泰姆	CXSU63137bpx嘉泰姆	CXSU63137-1bpx嘉泰姆	CXSU63137-2bpx嘉泰姆	Function Descriptionbpx嘉泰姆
24bpx嘉泰姆	COMPbpx嘉泰姆	COMPbpx嘉泰姆	COMPbpx嘉泰姆	Step-Up Regulator Error-Amplifier Compensation Point. Connect a series RC from COMP to AGND.bpx嘉泰姆
25bpx嘉泰姆	FBPbpx嘉泰姆	FBPbpx嘉泰姆	FBPbpx嘉泰姆	Gate-On Linear-Regulator Feedback Input. Connect FBP to the center of a resistive voltage-divider between the regulator output and AGND to set the gate-on linear regulator output voltage. Place the resistive voltage-divider close to the pin.bpx嘉泰姆
26bpx嘉泰姆	DRVPbpx嘉泰姆	DRVPbpx嘉泰姆	DRVPbpx嘉泰姆	Gate-On Linear-Regulator Base Drive. Open drain of an internal n-channel MOSFET. Connect DRVP to the base of an external PNP pass transistor.bpx嘉泰姆
27bpx嘉泰姆	FBNbpx嘉泰姆	FBNbpx嘉泰姆	FBNbpx嘉泰姆	Gate-Off Linear-Regulator Feedback Input. Connect FBN to the center of a resistive voltage-divider between the regulator output and REF to set the gate-off linear regulator output voltage. Place the resistive voltage-divider close to the pin.bpx嘉泰姆
28bpx嘉泰姆	DRVNbpx嘉泰姆	DRVNbpx嘉泰姆	DRVNbpx嘉泰姆	Gate-Off Linear-Regulator Base Drive. Open drain of an internal p-channel MOSFET. Connect DRVN to the base of an external NPN pass transistor.bpx嘉泰姆
29bpx嘉泰姆	DELbpx嘉泰姆	DELbpx嘉泰姆	DELbpx嘉泰姆	High-Voltage Switch Delay Input. Connect a capacitor from DEL to AGND to set the high-voltage switch startup delay.bpx嘉泰姆
30bpx嘉泰姆	CTLbpx嘉泰姆	CTLbpx嘉泰姆	CTLbpx嘉泰姆	High-Voltage Switch Control Input. When CTL is high, the high-voltage switch between COM and SRC is on and the high-voltage switch between COM and DRN is off. When CTL is low, the high-voltage switch between COM and SRC is off and the high-voltage switch between COM and DRN is on. CTL is inhibited by the undervoltage lockout and when the voltage on DEL is less than 1.25V.bpx嘉泰姆
31bpx嘉泰姆	DRNbpx嘉泰姆	DRNbpx嘉泰姆	DRNbpx嘉泰姆	Switch Input. Drain of the internal high-voltage back-to-back P-channel MOSFETs connected to COM. Do not allows the voltage on DRN to exceed VSRC.bpx嘉泰姆
32bpx嘉泰姆	COMbpx嘉泰姆	COMbpx嘉泰姆	COMbpx嘉泰姆	Internal High-Voltage MOSFET Switch Common Terminal. Do not allow the voltage on COM to exceed VSRC.bpx嘉泰姆

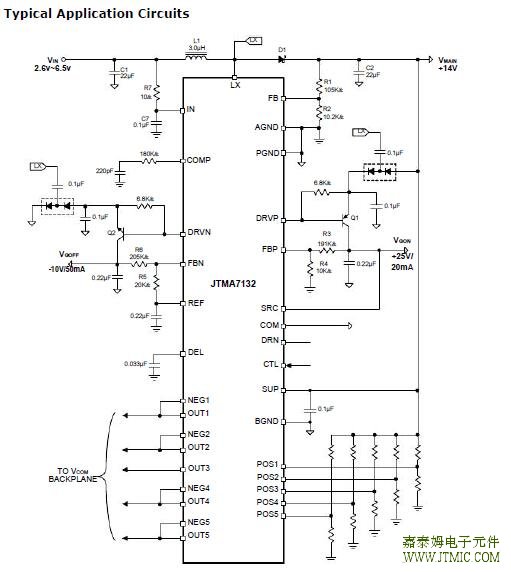

六.电路原理图bpx嘉泰姆

七,功能概述
For all switching power supplies, the layout is an impor-tant step in the design; especially at high peak currents and switching frequencies. There are some general guidelines for layout:
1.Place the external power components (the input capacitors, output capacitors, boost inductor and output diodes, etc.) in close proximity to the device.Traces to these components should be kept as short and wide as possible to minimize parasitic inductance and resistance.
2.Place the REF and IN bypass capacitors close to the pins. The ground connection of the IN bypass capacitor should be connected directly to the AGND pin with a wide trace.
3.Create a power ground (PGND) and a signal ground island and connect at only one point. The power ground consisting of the input and output capacitor grounds, PGND pin, and any charge-pump components. Connect all of these together with short, wide traces or a small ground plane. Maxi-mizing the width of the power ground traces im-proves efficiency and reduces output voltage ripple and noise spikes. The analog ground plane (AGND) consisting of the AGND pin, all the feed-back-divider ground connections, the operational-amplifier divider ground connections, the COMP and DEL capacitor ground connections, and the device’s exposed backside pad. Connect the AGND and PGND islands by connecting the PGND pin directly to the exposed backside pad. Make no other connections between these separate ground planes.
4.The feedback network should sense the output volt-age directly from the point of load, and be as far away from LX node as possible.
5.The exposed die plate, underneath the package,should be soldered to an equivalent area of metal on the PCB. This contact area should have mul-tiple via connections to the back of the PCB as well as connections to intermediate PCB layers, if available, to maximize thermal dissipation away from the IC.
6.To minimize the thermal resistance of the package when soldered to a multi-layer PCB, the amount of copper track and ground plane area connected to the exposed die plate should be maximized and spread out as far as possible from the IC. The bot-tom and top PCB areas especially should be maxi-mized to allow thermal dissipation to the surround-ing air.
7.Minimize feedback input track lengths to avoid switching noise pick-up
八,相关产品
bpx嘉泰姆

bpx嘉泰姆

Switching Regulator > Boost Converterbpx嘉泰姆
Part_No bpx嘉泰姆	Packagebpx嘉泰姆	Archi-tecture bpx嘉泰姆	Input bpx嘉泰姆 Voltage bpx嘉泰姆		Max Adj.bpx嘉泰姆 Output bpx嘉泰姆 Voltage bpx嘉泰姆		Switch Current Limit (max) bpx嘉泰姆	Fixed bpx嘉泰姆 Output bpx嘉泰姆 Voltage bpx嘉泰姆	Switching bpx嘉泰姆 Frequency bpx嘉泰姆	Internal Power Switch bpx嘉泰姆	Sync. Rectifier bpx嘉泰姆
Part_No bpx嘉泰姆	Packagebpx嘉泰姆		minbpx嘉泰姆	maxbpx嘉泰姆	minbpx嘉泰姆	maxbpx嘉泰姆	(A)bpx嘉泰姆	(V)bpx嘉泰姆	(kHz)bpx嘉泰姆		Sync. Rectifier bpx嘉泰姆
CXSU63133bpx嘉泰姆	SOT89bpx嘉泰姆	VM bpx嘉泰姆	0.9bpx嘉泰姆	5.5bpx嘉泰姆	2.5bpx嘉泰姆	5.5bpx嘉泰姆	0.5bpx嘉泰姆	1.8\|2.6\|2.8\|3bpx嘉泰姆 \|3.3\|3.8\|4.5\|5bpx嘉泰姆	-bpx嘉泰姆	Nobpx嘉泰姆	Yesbpx嘉泰姆
CXSU63134bpx嘉泰姆	MSOP8\|TSSOP8bpx嘉泰姆 \|SOP8bpx嘉泰姆	VMbpx嘉泰姆	2.5bpx嘉泰姆	5.5bpx嘉泰姆	2.5bpx嘉泰姆	-bpx嘉泰姆	-bpx嘉泰姆	-bpx嘉泰姆	200 ~ 1000bpx嘉泰姆	Nobpx嘉泰姆	Nobpx嘉泰姆
CXSU63135bpx嘉泰姆	TSSOP8\|SOP-8Pbpx嘉泰姆	VMbpx嘉泰姆	1bpx嘉泰姆	5.5bpx嘉泰姆	2.5bpx嘉泰姆	5bpx嘉泰姆	1bpx嘉泰姆	2.5\|3.3bpx嘉泰姆	300bpx嘉泰姆	Yesbpx嘉泰姆	Yesbpx嘉泰姆
CXSU63136bpx嘉泰姆	SOP8bpx嘉泰姆	CMbpx嘉泰姆	3bpx嘉泰姆	40bpx嘉泰姆	1.25bpx嘉泰姆	40bpx嘉泰姆	1.5bpx嘉泰姆	-bpx嘉泰姆	33 ~ 100bpx嘉泰姆	Yesbpx嘉泰姆	Nobpx嘉泰姆
CXSU63137bpx嘉泰姆	TQFN5x5-32bpx嘉泰姆	CMbpx嘉泰姆	2.5bpx嘉泰姆	6.5bpx嘉泰姆	2.5bpx嘉泰姆	18bpx嘉泰姆	3bpx嘉泰姆	Nobpx嘉泰姆	1200bpx嘉泰姆	Yesbpx嘉泰姆	Nobpx嘉泰姆
CXSU63138bpx嘉泰姆	TSOT23-5bpx嘉泰姆 TDFN2x2-6bpx嘉泰姆	CMbpx嘉泰姆	2.5bpx嘉泰姆	6bpx嘉泰姆	2.5bpx嘉泰姆	20bpx嘉泰姆	2bpx嘉泰姆	-bpx嘉泰姆	1500bpx嘉泰姆	Yesbpx嘉泰姆	Nobpx嘉泰姆
CXSU63139bpx嘉泰姆	TQFN4x4-6bpx嘉泰姆 TDFN3x3-12bpx嘉泰姆	CMbpx嘉泰姆	1.8bpx嘉泰姆	5.5bpx嘉泰姆	2.7bpx嘉泰姆	5.5bpx嘉泰姆	5bpx嘉泰姆	-bpx嘉泰姆	1.2bpx嘉泰姆	Yesbpx嘉泰姆	Yesbpx嘉泰姆
CXSU63140bpx嘉泰姆	SOT23-5bpx嘉泰姆	CMbpx嘉泰姆	2.5bpx嘉泰姆	6bpx嘉泰姆	2.5bpx嘉泰姆	32bpx嘉泰姆	1bpx嘉泰姆	-bpx嘉泰姆	1000bpx嘉泰姆	Yesbpx嘉泰姆	Nobpx嘉泰姆
CXSU63141bpx嘉泰姆	TSOT-23-6 bpx嘉泰姆 TDFN2x2-8bpx嘉泰姆	CMbpx嘉泰姆	1.2bpx嘉泰姆	5.5bpx嘉泰姆	1.8bpx嘉泰姆	5.5bpx嘉泰姆	1.2bpx嘉泰姆	-bpx嘉泰姆	1.2bpx嘉泰姆	Yesbpx嘉泰姆	Yesbpx嘉泰姆
