EnglishCXSU63153 a group of PFM controlled step-up DC/DC converter/controller ICs designed to generate low supply voltage by the combination of PFM control and CMOS structure,Output voltage is internall
目录
1.产品概述 2.产品特点 3.应用范围 4.技术规格书下载（产品PDF文档）
5.产品封装图</span> 6.电路原理图</span> 7.功能概述 8.相关产品
一,产品概述(General Description)
The CXSU63153 series is a group of PFM controlled step-up DC/DC converter/controller ICs designed
to generate low supply voltage by the combination of PFM control and CMOS structure. The series is ideal for
applications where a longer battery life is needed such as in portable communication equipment. With a built-in
2.5ΩN-channel driver transistor, the CXSU63153A/C/E and CXSU63153A/C/E types provide a step-up operation
by using only a coil, a capacitor, and a diode connected externally.
The CXSU63153B, D and F versions can be used with an external transistor for applications requiring
larger currents.Output voltage is internally programmable in a range from 1.5V to 7.0V in increments of 100mV
(accuracy:±2.5%). Maximum oscillation frequency is set to 100kHz for CXSU63153 series. (At light loads,
it is set to 180kHz for the CXSU63153 series.) Options include products equipped with a CE pin (C and D
versions) that allows the IC to be shut down thereby reducing supply current and with separated VDD/VOUT
pins (E and F versions) to separate the power supply block and the output voltage detect block. With the
CXSU63153 series, maximum duty cycle is set to 75% (VDD=3.3V) making it suitable for use with large current
operations. The CXSU63153 series automatically switches duty ratio between 56% & 75% (VDD=3.3V) when it
senses changes in load to drop output ripple voltage and can support both large and small currents. The external
transistor types (B/D/F types) can be provided for applications, which require larger currents.
二</span>.产品特点(Features)
三</span>,应用范围 (Applications)
●Mobile phones
●Various palm top equipment
●Cameras, VCRs
●Various portable equipment
四.技术</span>规格书下载（产品PDF）</span>

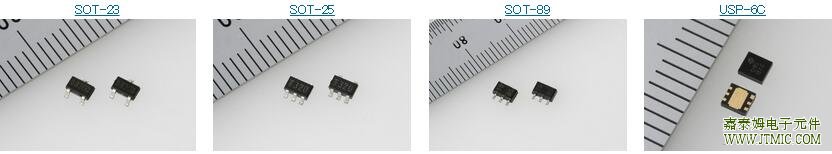

五,产品封装图 (Package)

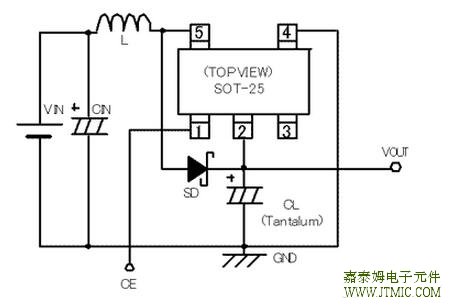

六.电路原理图</span>
七</span>,功能概述
PARAMETER | SYMBOL | RATINGS | UNITS | |
VOUT Input Voltage | VOUT | – 0.3 ~ 12.0 | V | |
Lx Pin Voltage | VLx | – 0.3 ~ 12.0 | V | |
Lx Pin Current | ILx | 400 | mA | |
EXT Pin Voltage | VEXT | VSS–0.3 ~ VOUT＋0.3 | V | |
EXT Pin Current | IEXT | ±100 | mA | |
CE Input Voltage | VCE | –0.3 ~ 12.0 | V | |
VDD Input Voltage | VDD | –0.3 ~ 12.0 | V | |
Power Dissipation | SOT-23, 25 | Pd | 250 | mW |
SOT-89 | 500 | |||
USP-6C | ||||
120 | ||||
Operating Ambient Temperature | ||||
Topr | – 40 ~ + 85 | ℃</p> | ||
Storage Temperature | Tstg | – 55 ~ +125 | ℃</p> | |
八,相关芯片选择指南 更多同类产品......
升压型DC/DC转换器</span> | |||||||||||||||
产品名称 | 特点 | 封装 | 控制 | FET | Synchr onous | VIN MIN | VIN MAX | VOUT MIN | VOUT MAX | IIN | FB/VOUT 电压精度 | 振</span>荡</span> 频率 kHz | 限</span>制</span> 电流 mA | 消</span>耗</span> 电流 μA | 限</span>定</span> 电流 |
(V) | (V) | (V) | (V) | (mA) | 自</span>动</span> 闩锁 | ||||||||||
PWM/PFM | SOT-25 | PWM | None | No | 0.9 | 10 | 1.5 | 6.5 | - | ±2.5% | 100 | 20 | |||
PWM/PFM | SOT-25 | PWM/PFM | None | No | 0.9 | 10 | 1.5 | 6.5 | - | ±2.5% | 100 | 20 | |||
PWM/PFM | SOT89/SOT89-5 USP-6B | PWM | Nch | No | 0.9 | 10 | 2 | 7 | - | ±2.5% | 50 | 8.2 | |||
PWM/PFM | SOT89/SOT89-5 USP-6B | PWM/PFM | Nch | No | 0.9 | 10 | 2 | 7 | - | ±2.5% | 50 | 8.2 | |||
PWM | MSOP-8A | None | No | 2.5 | 20 | 2.2 | 30 | - | 100~600 | 90 | Auto | ||||
PWM/PFM | SOT25/USP6B | PWM | None | No | 0.9 | 10 | 1.5 | 30 | - | ±2.0% | 100 | 20 | |||
PWM/PFM | SOT25/USP6B | PWM/PFM | None | No | 0.9 | 10 | 1.5 | 30 | - | ±2.0% | 100 | 20 | |||
PWM/PFM | SOT25/USP6B | PWM/PFM 外部转换 | None | No | 0.9 | 10 | 1.5 | 30 | - | ±2.0% | 100 | 20 | |||
PWM/PFM | SOT25/USP6B | PWM | None | No | 0.9 | 10 | 1.5 | 30 | - | ±2.0% | 100 | 16 | |||
PWM/PFM | SOT25/USP6B | PWM/PFM | None | No | 0.9 | 10 | 1.5 | 30 | - | ±2.0% | 100 | 16 | |||
PFM | SOT25/USP6C | PFM | Nch | No | 0.9 | 10 | 1.5 | 7 | - | ±2.5% | 100 | 1.9 | |||
PFM | SOT23/SOT25 SOT89/USP6C | PFM | Nch | No | 0.9 | 10 | 1.5 | 7 | - | ±2.5% | 100 | 1.9 | |||
背光LED驱动 | SOT25/USP6B | PWM | Nch | No | 2.5 | 6 | 17.5 | - | ±0.5% | 1000 | 325 | 50 | |||
PWM | SOT25/USP6C | PWM | Nch | No | 2.5 | 6 | 19.5 | - | ±2.0% | 1000 | 400 | 55 | |||
PWM/PFM | SOT25/USP6B | PWM | None | No | 0.9 | 6 | 1.5 | 30 | - | ±2.0% | 100 | 13 | |||
PWM/PFM | SOT25/USP6C | PWM/PFM | None | No | 0.9 | 6 | 1.5 | 30 | - | ±2.0% | 100 | 13 | |||
PWM/PFM | SOT25/USP6B | PWM/PFM 外部转换 | None | No | 0.9 | 6 | 1.5 | 30 | - | ±2.0% | 100 | 13 | |||
内置1A驱动三极管</span> | MSOP10/USP10B | PWM/PFM 外部转换 | Nch | Yes | 0.8 | 6 | 1.8 | 5.3 | 1000 | ±10mV | 1200 | 1500 | 30 | Auto | |
内置1A驱动三极管</span> | USP10B | PWM/PFM 外部转换 | Nch | Yes | 0.8 | 6 | 1.8 | 5.3 | 1000 | ±10mV | 1200 | 1500 | 29 | Auto | |
附带负载切断功能 | USP10B | PWM,PWM/PFM | Nch | Yes | 0.65 | 5.5 | 1.8 | 5 | 1000 | ±10mV | 1200 | 1500 | 36 | Auto | |
白色LED驱动升压 | SOT25 | PWM | PWM | No | 2.5 | 6 | 2.5 | 17.5 | - | ±5.0% | 1000 | 360 | 60 | ||
内置1A驱动三极管</span> | USP10B | PWM/PFM | Nch | Yes | 0.65 | 5.5 | 1.8 | 5 | 1000 | ±2.0% | 1200 | 1590 | 39 | Latch | |
内置1A驱动三极管</span> | USP10B | PWM/PFM | Nch | Yes | 0.65 | 5.5 | 1.8 | 5 | 1000 | ±2.0% | 1200 | 1590 | 39 | Auto | |
PFM控制、同步整流</span> | SOT25 | PFM | Nch | Yes | 0.9 | 5.5 | 1.8 | 5 | - | ±2.0% | 1200 | 350 | 6.3 | Yes | |
附带负载切断功能 | SOT25 USP6C WLP6-01 | PWM | Nch | Yes | 0.65 | 6 | 1.8 | 5.5 | 800 | ±2.0% | 1200 | 1300 | 17,26 | 自动 闩锁 | |
附带负载切断功能 | SOT25/USP6C USPN4B02/WLP6-01 | PWM/PFM | Nch | Yes | 0.65 | 6 | 1.8 | 5.5 | 800 | ±2.0% | 1200 | 1300 | 17,26 | 自动 闩锁 | |
