EnglishCXLD6454B low-dropout linear voltage regulators with a built-in voltage reference module, error correction module and phase compensation module,based on the CMOS process and allow high voltage
目录
1.产品概述 2.产品特点 3.应用范围 4.技术规格书下载（PDF文档）</span>

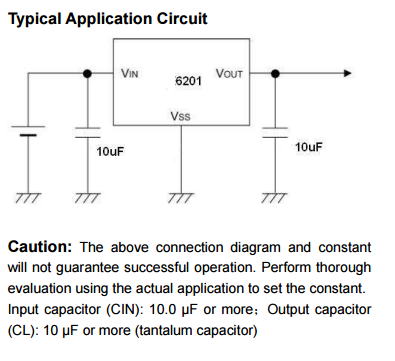

5.产品封装 6.电路原理图</strong> 7.相关产品
CXLD6454B series are low-dropout linear voltage regulators with a built-in voltage reference module, error correction module and phase compensation module. CXLD6454B series are based on the CMOS process and allow high voltage input with low quiescent current. This series has the function of internal feedback resistor setting from 3V to 5V. The output accuracy is ± 2.5%
High output accuracy: ± 2.5%
Input voltage: up to 16V
Output voltage: 3.0 V ~ 5.0V
Ultra-low Supply current (Typ. = 4 μ A)
Iout = 100mA （When Vin = 5.3V and Vout = 3.3V）</span>
Importation good stability: Typ. 0.1% / V
Low temperature coefficient
Ceramic capacitor can be used
Package: SOT-89, TO-92，SOT23-3
Electronic weighbridge
SCM
Phones, cordless phones
Security Products
Water meters, power meters
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持</span>！</span>
七.相关芯片选择指南 更多同类产品.....
CMOS LDO Linear Regulator（CMOS低压差线性稳压器）</p> | |||||||||
Part | VIN | IOUT | VOUT | Accu | IQ | PSRR | VDROPOUT | Application | Package |
(Max) | (1KHZ) | 3.3V@100mA | |||||||
~6.5V | 300mA | 1.5-5.0V | ±2% | 8uA | 50dB | 150mV | ①②⑨⑪ | SOT23-3/SOT89-3/ | |
~6.5V | 800mA | 1.8-5.0V | ±1% | 80uA | 65dB | 35mV | ⑨⑰⑱⑲ | SOT89-5/SOT23-5 | |
~6.5V | 500mA | 1.2-5.0V | ±2% | 50uA | 70dB | 120mV | ①②③④⑨⑪⑫⑬ | SOT23-5/SOT353 | |
~6.5V | 300mA | 1.5-5.0V | ±2% | 8uA | 50dB | 110mV | ①②⑨⑪ | SOT23-5 | |
~6.5V | 300mA | 1.0-5.0V | ±1% | 8uA | 50dB | 105mV | ①②⑨⑪ | SOT23-3/SOT89-3/SOT23/TO92 | |
~6.5V | 800mA | 1.5-5.6V | ±1% | 100uA | 65dB | 35mV | ⑨⑰⑱⑲ | SOT89-5/SOT23-5 | |
~6.5V | 300mA | 1.2-5.0V | ±2% | 65uA | 62dB | 180mV | ①②③④⑨⑪⑫⑬ | SOT23-5/SOT353/ | |
~18V | 1000mA | 1.2-5.0V | ±2% | 50uA | 70dB | 80mV | ⑨⑭⑮⑯⑰ | SOT223/TO252 | |
~18V | 400mA | 1.2-5.0V | ±2% | 60uA | 60dB | 105mV | ①②③④⑨⑪⑫⑬ | SOT23-5/SOT89-3 | |
~18V | 400mA | ADJ | ±2% | 60uA | 60dB | 105mV | ①②③④⑨⑪⑫⑬ | SOT23-5/SOT89-3 | |
~18V | 100mA | 3.0-5.0V | ±2.5% | 4uA | 60dB | 700mV(@50mA) | ③⑤⑥⑦⑧⑨⑩⑫ | TO92/SOT89-3/SOT23-3 | |
~18V | 150mA | 3.0-5.0V | ±2% | 3uA | 50dB | 580mV | ④⑤⑥⑩ | TO92/SOT89-3/SOT23-3 | |
~18V | 250mA | 3.0-5.0V | ±2% | 3uA | 50dB | 200mV | ⑨⑩⑪⑫⑭⑮⑯ | TO92/SOT89-3/SOT23-3 | |
~18V | 500mA | 1.5-5.0V | ±2% | 1.5uA | 50dB | 100mV | ①②④⑤⑨⑪ | TO92/SOT89-3/SOT23-3 | |
~18V | 300mA | 1.5-5.0V | ±2% | 0.7uA | 40dB | 160mV | ①②④⑤⑨⑪ | SOT89-3/SOT23-3/SOT23-5 | |
~18V | 300mA | 1.5-5.0V | ±2% | 5.5uA | 50dB | 160mV(VOUT=2.8V) | ①②⑨⑪ | SOT23-5 | |
~40V | 100mA | 3.0-5.0V | ±2% | 3uA | 50dB | 1100mV(@50mA) | ③⑤⑥⑦⑧⑨⑩⑫ | TO92/SOT89-3 | |
Applications：①Mobile phone②MID③Cordless phone④Radio communicationequipment⑤Wireless communication equipment⑥Electronic Balance | |||||||||
⑦Toys⑧Reference voltage⑨Battery powered equipment⑩Ammeter⑪Camera, Video camera⑫Portable games⑬Reference voltage sources | |||||||||
⑭Post Regulator for Switching DC/DC Converter⑮High-efficiency linear regulators⑯Battery Charger⑰PC⑱Communication tools | |||||||||
⑲DVD or CD-ROM drivers★CXLD6449 OTP=165°CXLD6445 no OTP | |||||||||
