产品概述 返回TOPW2q嘉泰姆
The CXLD64275 is a very low dropout three-terminal
regulator. The CXLD64275 is specifically designed to work
with SE8801 for the electricity meter applications.
CXLD64275 is capable of delivering 150mA output current
at a very low dropout voltage of 0.82V (Typical). The
other unique and important feature is the low noise.
CXLD64275has a ripple rejection ratio at 62dB (Typical)
and this helps to reduce the overall system noise
level. The high precision output at 2% ensures that
the accurate power supply requirement is met with
enough margin in many tough applications.
The CXLD64275also provides Over Current
Protection (OCP) and Over Temperature Protection
(OTP) . Both these features will ensure a safe
operating environment for electricity meter
applications.
The CXLD64275is available in SOT-89 and
SOT-223 packages.
产品特点 返回TOPW2q嘉泰姆
Output voltage of 11.6V (Typ.) W2q嘉泰姆
Output current up to 150mA (Typ.) W2q嘉泰姆
Current limiting W2q嘉泰姆
Over thermal Protection. W2q嘉泰姆
Minimum external components. W2q嘉泰姆
Output voltage tolerances of ±2% W2q嘉泰姆
Input Voltage up to 30V W2q嘉泰姆
Operating Junction Temperature Range
-40 to +125°C W2q嘉泰姆
ESD rating is 2KV (Per MIL-STD-883D)W2q嘉泰姆
应用范围 返回TOPW2q嘉泰姆
Electricity meter W2q嘉泰姆
Networking Equipments where low noise and
low power consumption is required.W2q嘉泰姆
技术规格书（产品PDF) 返回TOP W2q嘉泰姆
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持</span>！</span>
W2q嘉泰姆
W2q嘉泰姆
产品封装图 返回TOPW2q嘉泰姆
W2q嘉泰姆

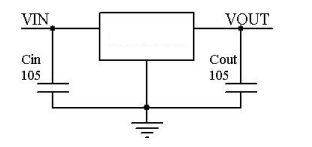

电路原理图 返回TOPW2q嘉泰姆
W2q嘉泰姆
W2q嘉泰姆
W2q嘉泰姆
Linear Voltage Regulator W2q嘉泰姆 |
ProductW2q嘉泰姆 | StatusW2q嘉泰姆 | Vin W2q嘉泰姆 | VoutW2q嘉泰姆 | IOUT MaxW2q嘉泰姆 | IQ/IDISW2q嘉泰姆 | DrpoutVoltage W2q嘉泰姆 | OTP/OCP W2q嘉泰姆 | EN/BP/PGW2q嘉泰姆 | PkgW2q嘉泰姆 |
CXLD64259W2q嘉泰姆 | ActiveW2q嘉泰姆 | 12VW2q嘉泰姆 | 1.5/1.8/2.5VW2q嘉泰姆 3V5/ADJW2q嘉泰姆 | 5AW2q嘉泰姆 | 3mAW2q嘉泰姆 | 1.3V @ 5AW2q嘉泰姆 | Yes/W2q嘉泰姆 | NO/W2q嘉泰姆 | TO220 TO263 TO252 W2q嘉泰姆 |
CXLD64260W2q嘉泰姆 | ActiveW2q嘉泰姆 | 12VW2q嘉泰姆 | 1.2VW2q嘉泰姆 | 1AW2q嘉泰姆 | 2.7mAW2q嘉泰姆 | 1.1V@1AW2q嘉泰姆 | Yes W2q嘉泰姆 | Yes W2q嘉泰姆 | SOT223W2q嘉泰姆 |
CXLD64261W2q嘉泰姆 | NEWW2q嘉泰姆 | 36VW2q嘉泰姆 | 3.3/2.5/1.8VW2q嘉泰姆 1.5/ADJW2q嘉泰姆 | 0.5AW2q嘉泰姆 | _W2q嘉泰姆 | _W2q嘉泰姆 | Yes W2q嘉泰姆 | Yes W2q嘉泰姆 | TO252 TO220W2q嘉泰姆 |
CXLD64262W2q嘉泰姆 | NRFNDW2q嘉泰姆 | 3.3~1.8VW2q嘉泰姆 | ADJW2q嘉泰姆 | 0.5AW2q嘉泰姆 | 65uAW2q嘉泰姆 | 300mV@300mAW2q嘉泰姆 | Yes W2q嘉泰姆 | Yes/W2q嘉泰姆 | DFN10 PSOP8W2q嘉泰姆 |
CXLD64263W2q嘉泰姆 | ActiveW2q嘉泰姆 | 2.5~6.5VW2q嘉泰姆 | 1.5V~4.6VW2q嘉泰姆 | 0.6AW2q嘉泰姆 | 55uAW2q嘉泰姆 | 600mV@600mAW2q嘉泰姆 | Yes W2q嘉泰姆 | NO/W2q嘉泰姆 | SOT89W2q嘉泰姆 |
CXLD64264W2q嘉泰姆 | ActiveW2q嘉泰姆 | 2.5~6.5VW2q嘉泰姆 | 1.5V~4.6VW2q嘉泰姆 | 0.3AW2q嘉泰姆 | 55uAW2q嘉泰姆 | 300mV@300mAW2q嘉泰姆 | Yes/W2q嘉泰姆 | NO/W2q嘉泰姆 | SOT23-3LW2q嘉泰姆 |
CXLD64265W2q嘉泰姆 | ActiveW2q嘉泰姆 | 2.5~6.5VW2q嘉泰姆 | 0.8VW2q嘉泰姆 | 1.5AW2q嘉泰姆 | 120uAW2q嘉泰姆 | 300mV@1.5AW2q嘉泰姆 | Yes/W2q嘉泰姆 | NO/W2q嘉泰姆 | SOT-223 TO252 W2q嘉泰姆 |
CXLD64266W2q嘉泰姆 | Active W2q嘉泰姆 | 2.5~6.5VW2q嘉泰姆 | 1.5V~4.6VW2q嘉泰姆 | 0.3AW2q嘉泰姆 | 55uA/0.1uAW2q嘉泰姆 | 300mV@300mAW2q嘉泰姆 | Yes/W2q嘉泰姆 | YES/NOW2q嘉泰姆 | SOT23-5LW2q嘉泰姆 SOT89-5LW2q嘉泰姆 |
CXLD64267W2q嘉泰姆 | Active W2q嘉泰姆 | 2.5~6.5VW2q嘉泰姆 | ADJW2q嘉泰姆 | 1.5AW2q嘉泰姆 | 120uA/0.1uAW2q嘉泰姆 | 380mV@1AW2q嘉泰姆 | Yes W2q嘉泰姆 | YES/W2q嘉泰姆 | PSOP8W2q嘉泰姆 |
CXLD64268W2q嘉泰姆 | ActiveW2q嘉泰姆 | 2.5~6.5VW2q嘉泰姆 | ADJW2q嘉泰姆 | 0.6AW2q嘉泰姆 | 55uA/0.1uAW2q嘉泰姆 | 300mV@600mAW2q嘉泰姆 | Yes/W2q嘉泰姆 | YES/W2q嘉泰姆 | SOT23-5LW2q嘉泰姆 |
CXLD64269W2q嘉泰姆 | ActiveW2q嘉泰姆 | 2.5~6.5VW2q嘉泰姆 | ADJW2q嘉泰姆 | 0.3A/0.6AW2q嘉泰姆 | 35uA/0.1uAW2q嘉泰姆 | 300mV@300mAW2q嘉泰姆 | Yes W2q嘉泰姆 | YES/W2q嘉泰姆 | SOT23-6L W2q嘉泰姆 |
CXLD64270W2q嘉泰姆 | Active W2q嘉泰姆 | 2.5~6.5VW2q嘉泰姆 | 1.5V~4.6VW2q嘉泰姆 | 0.6AW2q嘉泰姆 | 35uA/0.1uAW2q嘉泰姆 | 500mV@500mAW2q嘉泰姆 | Yes W2q嘉泰姆 | YES/W2q嘉泰姆 | SOT23-5LW2q嘉泰姆 |
CXLD64271W2q嘉泰姆 | Active W2q嘉泰姆 | 36V W2q嘉泰姆 | 5V/9V/12VW2q嘉泰姆 | 1A W2q嘉泰姆 | 3.2mAW2q嘉泰姆 | 2V@1AW2q嘉泰姆 | Yes W2q嘉泰姆 | NO/W2q嘉泰姆 | TO252/TO220W2q嘉泰姆 |
CXLD64272W2q嘉泰姆 | ActiveW2q嘉泰姆 | 9VW2q嘉泰姆 | 3.3/2.5/1.8W2q嘉泰姆 1.5/3.0VW2q嘉泰姆 | 800mA W2q嘉泰姆 | 3mA W2q嘉泰姆 | 1.3V@0.8A W2q嘉泰姆 | Yes W2q嘉泰姆 | NO/W2q嘉泰姆 | SOT89W2q嘉泰姆 |
CXLD64273XW2q嘉泰姆 | NEW W2q嘉泰姆 | 40VW2q嘉泰姆 | 5.0V/4.2VW2q嘉泰姆 /4.0VW2q嘉泰姆 | 200mA W2q嘉泰姆 | 1.6uA W2q嘉泰姆 | 0.6V@0.2AW2q嘉泰姆 |
| NO/W2q嘉泰姆 | SOT89 W2q嘉泰姆 SOT23-3LW2q嘉泰姆 |
CXLD64274W2q嘉泰姆 | NEWW2q嘉泰姆 | 30VW2q嘉泰姆 | 3.3/4.3/5.0W2q嘉泰姆 /5.7/ADJW2q嘉泰姆 | 100mA W2q嘉泰姆 | 650uA W2q嘉泰姆 | 0.8VW2q嘉泰姆 | Yes/W2q嘉泰姆 | NO/W2q嘉泰姆 | SOT23-3L W2q嘉泰姆 SOT-89W2q嘉泰姆 |
CXLD64275W2q嘉泰姆 | NEWW2q嘉泰姆 | 30V W2q嘉泰姆 | 11.6V W2q嘉泰姆 | 200mA W2q嘉泰姆 | 1.7uA W2q嘉泰姆 | 0.8VW2q嘉泰姆 | Yes/W2q嘉泰姆 | NO W2q嘉泰姆 | SOT22L SOT-89W2q嘉泰姆 |
CXLD64276W2q嘉泰姆 | NRFND W2q嘉泰姆 | 30 W2q嘉泰姆 | 5V/12VW2q嘉泰姆 | 100mA/200mA W2q嘉泰姆 | 650uA/1.7mAW2q嘉泰姆 | 0.8V W2q嘉泰姆 | Yes/W2q嘉泰姆 | NO W2q嘉泰姆 | SOP8 PSOP8W2q嘉泰姆 |
CXLD64277W2q嘉泰姆 | Active W2q嘉泰姆 | 2.5~6.5vW2q嘉泰姆 | 3.3/3.0/1.8/1.5VW2q嘉泰姆 | 200mA W2q嘉泰姆 | 55uA/0.1uAW2q嘉泰姆 | 175@100mAW2q嘉泰姆 375mVW2q嘉泰姆 | Yes W2q嘉泰姆 | YES/W2q嘉泰姆 | SOT-6LW2q嘉泰姆 |
