产品概述 返回TOPnJP嘉泰姆
The CXLD64321 CXLD64321-ADJ’s current limiters' feedback circuit
also operates as a short protect for the output
current limiter and. the output pin. The output
voltage is set by current trimming. Voltages are
selectable in 100mV steps within a range of 0.9V
to 5.0V. The CXLD64321 CXLD64321-ADJ series is also fully compatible with
low ESR ceramic capacitors, reducing cost and
improving output stability. This high level of output
stability is maintained even during frequent load
fluctuations, due to the excellent transient
response performance and high PSRR achieved
across a broad range of frequencies. The CE
function allows the output of regulator to be turned
off, resulting in greatly reduced power
consumption.The CXLD64321 CXLD64321-ADJ series are highly accurate, low noise, CMOS LDO Voltage Regulators. Offering low
output noise, high ripple rejection ratio, low
dropout and very fast turn-on times, the CXLD64321 CXLD64321-ADJ
series is ideal for today’s cutting edge mobile
phone. Internally the CXLD64321 CXLD64321-ADJ includes a reference
voltage source, error amplifiers, driver transistors, current limiters and phase compensators
产品特点 返回TOPnJP嘉泰姆
Low power consumption:30uA (Typ.) nJP嘉泰姆
Low voltage drop:0.15V@100mA(Typ.) nJP嘉泰姆
Standby Mode: 0.1uA nJP嘉泰姆
Low temperature coefficient nJP嘉泰姆
Good line Regulation:0.05%/V nJP嘉泰姆
High Ripple Rejection: 85dB@100Hz(Typ.) nJP嘉泰姆
High input voltage (up to 8V) nJP嘉泰姆
Output voltage accuracy: tolerance ±2% nJP嘉泰姆
Build-in Enable/Output Current Limit circuit nJP嘉泰姆
DFN1×1—4、DFN2×2—6、SOT23-5
packagenJP嘉泰姆
应用范围 返回TOPnJP嘉泰姆
Battery-powered equipment nJP嘉泰姆
Communication equipment nJP嘉泰姆
Mobile phones nJP嘉泰姆
Portable games nJP嘉泰姆
Cameras, Video cameras nJP嘉泰姆
Reference voltage sourcesnJP嘉泰姆
技术规格书（产品PDF) 返回TOP nJP嘉泰姆
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持</span>！</span>
nJP嘉泰姆
nJP嘉泰姆

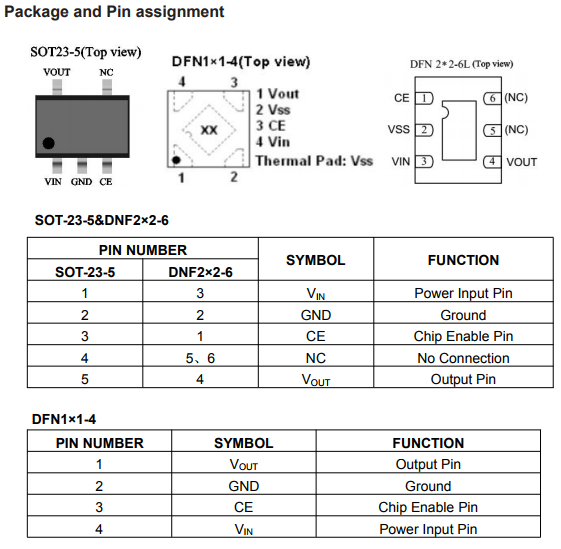

产品封装图 返回TOPnJP嘉泰姆
nJP嘉泰姆
电路原理图 返回TOPnJP嘉泰姆
nJP嘉泰姆
nJP嘉泰姆
nJP嘉泰姆
CMOS电源稳压器LDOnJP嘉泰姆 |
产品系列名</span>nJP嘉泰姆 | 输出电</span>nJP嘉泰姆 流MaxnJP嘉泰姆 （mA）</span>nJP嘉泰姆 | 输入电</span>nJP嘉泰姆 压MaxnJP嘉泰姆 (V) nJP嘉泰姆 | 输入耐</span>nJP嘉泰姆 压MaxnJP嘉泰姆 (V) nJP嘉泰姆 | 输出电</span>nJP嘉泰姆 压范围</span>nJP嘉泰姆 (V)nJP嘉泰姆 | 精度nJP嘉泰姆 (±%)nJP嘉泰姆 | 静态</span>nJP嘉泰姆 电流nJP嘉泰姆 （uA）</span>nJP嘉泰姆 | 压差nJP嘉泰姆 | 特征nJP嘉泰姆 | 封装形式nJP嘉泰姆 |
CXLD64316nJP嘉泰姆 | 250nJP嘉泰姆 | 12nJP嘉泰姆 | 15nJP嘉泰姆 | 1.5~5nJP嘉泰姆 | ±2%nJP嘉泰姆 | 2nJP嘉泰姆 | 0.17V/100mA@VOUT=3.3VnJP嘉泰姆 | 低消耗电流</span>nJP嘉泰姆 | SOT23-3/SOT23-5/SOT89nJP嘉泰姆 |
CXLD64317nJP嘉泰姆 | 150nJP嘉泰姆 | 15nJP嘉泰姆 | 18nJP嘉泰姆 | 1.5~5nJP嘉泰姆 | ±2%nJP嘉泰姆 | 2nJP嘉泰姆 | 0.26V/100mA@VOUT=3.3VnJP嘉泰姆 | 低消耗电流</span>nJP嘉泰姆 | SOT23-3/SOT89nJP嘉泰姆 |
CXLD64318nJP嘉泰姆 | 300nJP嘉泰姆 | 6nJP嘉泰姆 | 8nJP嘉泰姆 | 1.2~5nJP嘉泰姆 | ±2%nJP嘉泰姆 | 1.5nJP嘉泰姆 | 0.17V/100mA@VOUT=3.3VnJP嘉泰姆 | 8V耐压1.5uA静态电流</span>nJP嘉泰姆 | SOT23/SOT23-3/SOT89nJP嘉泰姆 |
CXLD64319nJP嘉泰姆 | 300nJP嘉泰姆 | 6nJP嘉泰姆 | 8nJP嘉泰姆 | 1.2~5nJP嘉泰姆 | ±2%nJP嘉泰姆 | 3nJP嘉泰姆 | 0.17V/100mA@VOUT=3.3VnJP嘉泰姆 | 8V耐压3uA静态电流</span>nJP嘉泰姆 | SOT23/SOT23-3/SOT89nJP嘉泰姆 |
CXLD64320nJP嘉泰姆 | 400nJP嘉泰姆 | 6nJP嘉泰姆 | 7nJP嘉泰姆 | 1.2~5nJP嘉泰姆 | ±2%nJP嘉泰姆 | 30nJP嘉泰姆 | 0.15V/100mA@VOUT=3.3VnJP嘉泰姆 | 超高速低噪声高纹波抑制比nJP嘉泰姆 | SOT23/SOT23-3/SOT89nJP嘉泰姆 |
CXLD64320BnJP嘉泰姆 | 400nJP嘉泰姆 | 5nJP嘉泰姆 | 5.5nJP嘉泰姆 | 1.2~5nJP嘉泰姆 | ±2%nJP嘉泰姆 | 30nJP嘉泰姆 | 0.17V/200mA@VOUT=3.3VnJP嘉泰姆 | 超高速低噪声高纹波抑制比nJP嘉泰姆 | SC70-5/SOT23-3nJP嘉泰姆 |
CXLD64320CnJP嘉泰姆 | 300nJP嘉泰姆 | 7nJP嘉泰姆 | 8nJP嘉泰姆 | 1.0~5nJP嘉泰姆 | ±2%nJP嘉泰姆 | 30nJP嘉泰姆 | 0.15V/100mA@VOUT=3.0VnJP嘉泰姆 | 超高速低噪声高纹波抑制比nJP嘉泰姆 | SOT23-5/DFN1*1-4/DNF2*2-6nJP嘉泰姆 |
CXLD64321nJP嘉泰姆 | 350nJP嘉泰姆 | 7nJP嘉泰姆 | 8nJP嘉泰姆 | 1.0~5nJP嘉泰姆 | ±2%nJP嘉泰姆 | 30nJP嘉泰姆 | 0.15V/100mA@VOUT=3.0VnJP嘉泰姆 | 超高速低噪声高纹波抑制比nJP嘉泰姆 | SOT23-5/DFN1*1-4/DNF2*2-6nJP嘉泰姆 |
CXLD64321-ADJnJP嘉泰姆 | 300nJP嘉泰姆 | 7nJP嘉泰姆 | 8nJP嘉泰姆 | ADJnJP嘉泰姆 | ±2%nJP嘉泰姆 | 30nJP嘉泰姆 | 0.30V/100mA@VOUT=3.0VnJP嘉泰姆 | 超高速低噪声高纹波抑制比nJP嘉泰姆 | SOT23-5/SOT23-6nJP嘉泰姆 |
CXLD64322nJP嘉泰姆 | 300nJP嘉泰姆 | 8nJP嘉泰姆 | 10nJP嘉泰姆 | 1.2~5nJP嘉泰姆 | ±2%nJP嘉泰姆 | 30nJP嘉泰姆 | 0.18V/100mA@VOUT=3.3VnJP嘉泰姆 | 超高速低噪声高纹波抑制比nJP嘉泰姆 | SOT23/SOT23-3/SOT89nJP嘉泰姆 |
CXLD64323nJP嘉泰姆 | 300nJP嘉泰姆 | 15nJP嘉泰姆 | 18nJP嘉泰姆 | 1.6~5nJP嘉泰姆 | ±2%nJP嘉泰姆 | 10nJP嘉泰姆 | 0.3V/100mA@VOUT=5.0VnJP嘉泰姆 | 18V耐压带使能300mAnJP嘉泰姆 | SOT23/SOT23-3/SOT89nJP嘉泰姆 |
CXLD64324nJP嘉泰姆 | 1000nJP嘉泰姆 | 8nJP嘉泰姆 | 10nJP嘉泰姆 | 0.6~5nJP嘉泰姆 | ±2%nJP嘉泰姆 | 25nJP嘉泰姆 | 0.06V/100mA@VOUT=5.0VnJP嘉泰姆 | 8.5V耐压1A电流能力高纹波</span>nJP嘉泰姆 | SOT89/SOT23-5nJP嘉泰姆 |
CXLD64325nJP嘉泰姆 | 1000nJP嘉泰姆 | 8nJP嘉泰姆 | 10nJP嘉泰姆 | 0.6~5nJP嘉泰姆 | ±2%nJP嘉泰姆 | 2nJP嘉泰姆 | 0.06V/100mA@VOUT=5.0VnJP嘉泰姆 | 8.5V耐压1A电流能力低功耗</span>nJP嘉泰姆 | SOT89/SOT23-5nJP嘉泰姆 |
CXLD64326nJP嘉泰姆 | 350nJP嘉泰姆 | 10nJP嘉泰姆 | 12nJP嘉泰姆 | 1.5~5nJP嘉泰姆 | ±2%nJP嘉泰姆 | 2nJP嘉泰姆 | 0.17V/100mA@VOUT=3.3VnJP嘉泰姆 |
| SOT89nJP嘉泰姆 |
