MP1410 12V&24V输入5V2A输出车充方案(The MP1410 is a monolithic s

一,目录
1.产品概述         2.产品特点
3.应用范围                       4.产品封装图
5.电路原理图             6.产品PCB
7.产品BOM                       8.产品PDF文档
9.产品设计概述

二,产品概述(General Description)
   The MP1410 is a monolithic step-down switch mode converter with a built in internal power
MOSFET. It achieves 2A continuous output cur-rent over a wide input supply range with excel-lent load and line regulation.
    The MP1410 requires a minimum number of readily available standard external components.Current mode operation provides fast transient response and eases loop stabilization.Fault condition protection includes cycle-by-cycle current limiting and thermal shutdown. In shutdown mode the regulator draws 25µA of supply current.

三,.产品特点(Features)
1.2A Output Current
2. 0.22Ω Internal Power MOSFET Switch
3. Stable with Low ESR Output Ceramic Ca-pacitors
4. Up to 95% Efficiency
5. 25µA Shutdown Mode
6. Fixed 420KHz Frequency
7. Thermal Shutdown
8. Cycle-by-Cycle Over Current Protection
9. Wide 4.75 to 25V Operating Input Range
10. Output Adjustable from 1.22V to 21V
11. Programmable Under Voltage Lockout

四,应用范围 (Applications)
1.Distributed Power Systems
2.Battery Chargers
3.Pre-Regulator for Linear Regulators
4.PC Monitors

五,产品封装图 (Package)

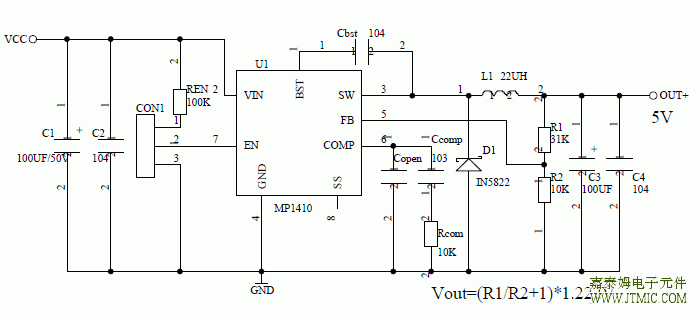

六,电路原理图

七, 产品PCB
(略)有需要可以联系我们!

八.产品BOM

编号	型号描述	位号	用量	单位
1	贴片电阻10K SMD0805	Rcom	1	PCS
2	贴片电阻10K SMD0805	R2	1	PCS
3	贴片电感22UH D8*8mm	L1	1	PCS
4	贴片电阻31K SMD0805	R1	1	PCS
5	贴片电阻100K SMD0805	REN	1	PCS
6	电解电容100UF16V	C3	1	PCS
7	电解电容100UF/50V	C1	1	PCS
8	贴片电容103/50V SMD0805	Ccomp	1	PCS
9	贴片电容104/50V SMD0805	C2	1	PCS
10	贴片电容104/50V SMD0805	C4	1	PCS
11	贴片电容103/50V SMD0805	Cbst	1	PCS
12	3PIN插针脚距2.54mm	CON1	1	PCS
13	降压芯片 MP1410 sop8	U1	1	PCS
14	肖特基二极管IN5822 40V3A	D1	1	PCS
15	PCB板 40301.6mm 双面玻纤板		1	PCS
