一,产品概述(General Description)

   The CXDR7576MP is a simple, cost-effective and high-speed linear regulator designed
to generate termination voltage in double data rate (DDR) memory system to comply with
the JEDEC SSTL_2 and SSTL_18 or other specific interfaces such as HSTL,SCSI-2 and
SCSI-3 etc. devices requirements. The regulator is cJTMAable of actively sinking or sourcing
up to 2.5A while regulating an output voltage to within 40mV.The output termination voltage
cab be tightly regulated to track 1/2VDDQ by two external voltage divider resistors or the
desired output voltage can be pro-grammed by externally forcing the REFEN pin voltage.
The CXDR7576MP also incorporates a high-speed differential amplifier to provide ultra-fast
response in line/load transient. Other features include extremely low initial offset voltage,
excellent load regulation, current limiting in bi-directions and on-chip thermal shut-down
protection.Built-in  softstart  function  avoids  a misoperation by inrush current.
     The CXDR7576MP are available in the ESOP-8 (Exposed Pad) surface mount packages.
二</span>.产品特点(Features)

Ideal for DDR-I, DDR-II and DDR-III VTT JTMAplications
Sink and Source up to 2.5Amp
Integrated Power MOSFETs
Generates Termination Voltage for SSTL_2, SSTL_18,
HSTL, SCSI-2 and SCSI-3 Interfaces.
High Accuracy Output Voltage at Full-Load
Output Adjustment by Two External Resistors
Built-in Soft-start Function
Shutdown for Suspend to RAM (STR) Functionality
with High-Impedance Output
Current Limiting Protection
On-Chip Thermal Protection
Available in ESOP-8 (Exposed Pad) Packages
VIN and VCNTL Under Voltage Protection
RoHS Compliant and Halogen Free
三</span>,应用范围 (Applications)

Desktop PCs, Notebooks, and Workstations
GrJTMAhics Card Memory Termination
Set Top Boxes, Digital TVs, Printers
Embedded Systems
Active Termination Buses
DDR-I, DDR-II and DDR-III Memory Systems
四.技术</span>规格书下载（产品PDF）</span>
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持</span>！</span>
qJg嘉泰姆

五,产品封装图 (Package)

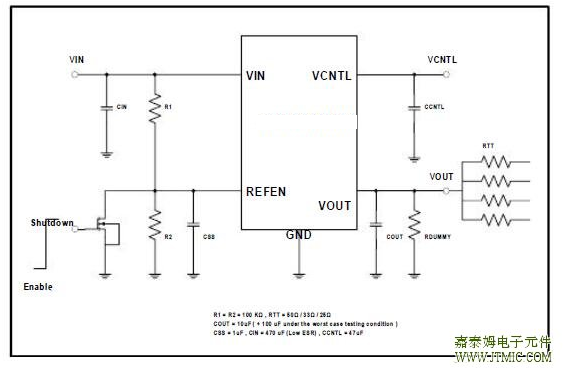

六.电路原理图</span>

qJg嘉泰姆

七</span>,功能概述

qJg嘉泰姆

Input Voltage (VIN) ------------------------------------------ 6V
CNTL Pin Voltage (VCNTL) -------------------------------- 6V
Power Dissipation (PD) ------------------------------------ Internally Limited
Storage Temperature Range (TST) --------------------- -65 to +150°CqJg嘉泰姆

Lead Temperature (Soldering, 10sec.) ---------------260°C260°C
Thermal Resistance from Junction to Case (R thjc)28°C/W
