CXDR7580 IC combines a Dual synchronous Buck controller, providing a cost-effective, high performance and flexible solution,configured as 2-independent or as 2-phase controller. The 2-phase con-f

目录DdT嘉泰姆

1.产品概述                        2.产品特点
3.应用范围                        4.下载产品资料PDF文档
5.产品封装图</span>                     6.电路原理图</span>
7.功能概述                        8.相关产品DdT嘉泰姆

一,产品概述(General Description)

   The CXDR7580 IC combines a Dual synchronous Buck controller, providing a cost-effective,
high performance and flexible solution. The CXDR7580 can configured as 2-independent or
as 2-phase controller. The 2-phase con-figuration is ideal for high current applications. The
     CXDR7580 features 180 out of phase operation which re-duces the required input/output
capacitance and results to few number of capacitor quantity. Other key features offered by this
device include two independent program-mable soft starts, programmable switching frequency up
to 500KHz per phase, under voltage lockout function.The current limit is provided by sensing the lower
MOSFET's on-resistance for optimum cost and perfor-mance
二</span>.产品特点(Features)

Dual Synchronous Controller with 180 out-of-phase
Configurable to 2-Independent Outputs or 2-Phase
Single Output
Current Sharing Using Inductor's DCR
Current Limit using MOSFET's RDS(ON)
Hiccup/Latched Current Limit
Latched Over-Voltage Protection
Vcc from 4.5V to 16V Input
Programmable Switching Frequency up to 500KHz
Two Independent Soft-Starts/ Shutdowns
0.8V Precision Reference Voltage Available
Power Good Output
External Frequency Synchronization
Halogen Free Product
三</span>,应用范围 (Applications)

Embedded Computer Systems
Telecom Systems
Point of Load Power Architectures
2-Phase Power Supply
Graphic Card
DDR Memory Applications
四.技术</span>规格书下载（产品PDF）</span>
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持</span>！</span>
DdT嘉泰姆

五,产品封装图 (Package)

DdT嘉泰姆

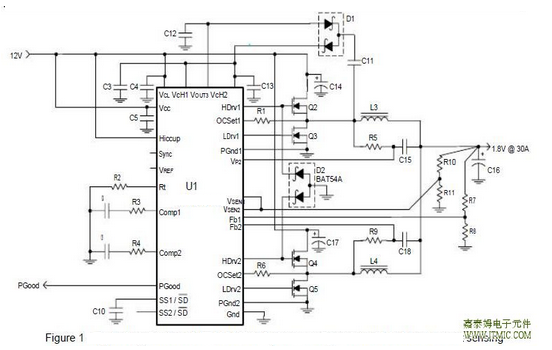

六.电路原理图</span>


七</span>,功能概述

Vcc, VCL Supply Voltage .............................................. -0.5V To 16V
VcH1 and VcH2 Supply Voltage ................................ -0.5V To 25V
PGOOD................. ................................................... -0.5V To 16V
Storage Temperature Range ...................................... -40°C To 125°C
Operating Junction Temperature Range ..................... -40°C To 125°C
