CXPU33106B为数码相机提供了完整的电源解决方案。与2芯A（CXPU33106A/CXPU33106B）、1芯LiIon（CXPU33106A/CXPU33106B）和多电池设计中的其他多通道控制器相比，它们提高了性能、组件数量和大小。片上mosfet为关键电源提供高达92~95%的效率。所有通道DC/DC以固定的2MHz（CH1~CH4）/1MHz（CH5~CH7）工作频率运行，以优化尺寸、成本和效率。CXPU33106A/CXPU33106B提供32针TQFN（4X4）产品包。
·95%高效DC/DC转换器。
高度集成7通道DC/DC和集成功率mosfet。
·具有真正关闭功能的CH1、CH2、CH6和CH7升压型同步整流电流模式PWM转换器。
·所有电池应用的CH2降压（CXPU33106A/CXPU33106BB）或升压（CXPU33106A/CXPU33106BA）。
·6通道内置同步整流电流模式PWM转换器，1通道内置非同步整流电流模式PWM转换器。
·低功耗（睡眠模式）<10μA。
·内置短路保护（SCP）和过电流保护（OCP），用于mosfet。
内置欠压锁定（UVLO）和过载保护（OLP）。内置软启动功能。
·可选CH7升压型，带开放式LED保护或电流调节型LED驱动器。
内置电源开/关顺序控制。
·固定的2兆赫（CH1~CH4）/1兆赫（CH5~CH7）工作频率。
·内部补偿的所有通道
·所有电源开关集成
内置RTC LDO。
-
[ CXPU33106A/B ]
目录
7.相关产品
产品概述 返回TOP
The CXPU33106A/CXPU33106B provide a complete power supply solution for digital cameras. They improve performance, component count, and size compared to other multi-channel controllers in 2-cell A(CXPU33106A/CXPU33106B), 1-cell LiIon(CXPU33106A/CXPU33106B), and multi-battery designs. On-chip MOSFETs provide up to 92~95% efficiency for critical power supplies. All channels DC/DC operate at Fixed 2MHz(CH1~CH4)/ 1MHz(CH5~CH7) Operating Frequency to optimize size, cost, and efficiency. The CXPU33106A/CXPU33106B is available in 32-pin TQFN (4X4) package.
产品特点 返回TOP
„ 95% Efficient DC/DC Converter.
„ Highly Integrated 7-CH DC/DC with integrated Power MOSFETs.
„ CH1, CH2, CH6 and CH7 Boost-type Synchronous Rectified Current-Mode PWM Converters with true-shutdown function.
„ CH2 Buck(CXPU33106A/CXPU33106BB) or Boost(CXPU33106A/CXPU33106BA) for all Battery Application.
„ 6 Channel Built-in Synchronous Rectified Current-Mode PWM Converters, 1 Channel Built-in Non-Synchronous Rectified Current-Mode PWM Converters.
„ Low Power Consumption (Sleep Mode)<10μA.
„ Built-In Short-circuit Protection (SCP) and Over Current Protection (OCP) for MOSFETs.
„ Built-In Under Voltage Lock Out (UVLO) and Over Load Protection (OLP). „ Built-In Soft-Start Function.
„ Selectable CH7 Boost Type with Open LED Protection or Current Regulation Type LED Driver.
„ Built-In Power ON/OFF Sequence Control.
„ Fixed 2MHz(CH1~CH4) / 1MHz(CH5~CH7) Operating Frequency.
„ All Channel with internal compensation
„ All Power Switches integrated
„ Built-in RTC LDO.
„ Build-in thermal shutdown (TSD, 150°C )
应用范围 返回TOP
„ DSC Power Supply
技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

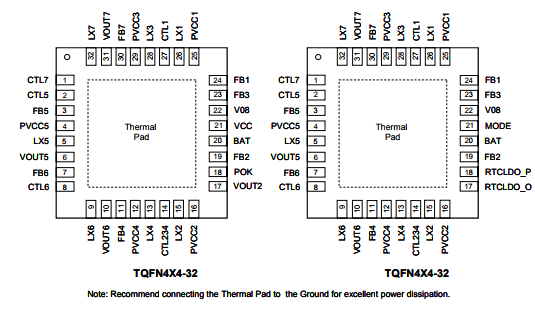

产品封装图 返回TOP
电路原理图 返回TOP
a
相关芯片选择指南 返回TOP 更多同类产品......
|
Multi-Channel PMIC |
|||||||||
|
Part NO. |
Vin(V min. |
Vin(V) max. |
DCDC CH |
DCD CFSW MHz |
Charger A |
LDO CH |
RTC LDOCH |
Note |
Package |
|
2.5 |
5.5 |
6 |
1.5 |
-- |
5 |
-- |
Bay Trail-M,DCDC1 2A, DCDC2~62.5A, LDO1~5 300mA,Load Switch*4 |
TQFN5X5-40 |
|
|
3 |
5.5 |
2 |
1.5 |
-- |
2 |
-- |
DCDC1~2 0.6A/1A LDO1=3V/3.3V/250mA, LDO2=1.2V/250mA |
TQFN3X3-16 |
|
|
2.5 |
5.5 |
4 |
1.5 |
1.5 |
6 |
1 |
DCDC1~4 1.5A/1.5A/2A/1.5A,Power Path, RTCLDO&LDO1=50mA,LDO2~6=300mA |
TQFN6X6-48 |
|
|
Multi-Channel PMIC for DSC |
||||||||
|
Part NO. |
Vin(V) min. |
Vin(V) max. |
FOSC (kHz) |
Built-in Compen sation CH |
Built-in HV LDO |
InternalPower ON/OFF Sequence |
Note |
Package |
|
3 |
5.5 |
1000 |
4+1 |
N |
Y |
Selectable Sync-Boost/buck,Sync-Buck*2, Sync-Boost,1-CH LDO,RTC LDO,RESET |
TQFN4X4-28 |
|
|
2.7 |
5.5 |
2000/ 1000 |
7 |
N |
Y |
Sync-Boost,Sync-Buck*2, Inverter,RTC LDO,Sync -Boost,Selectable Sync-Boost/Buck,Sync-Boost and Current Regulator for WLED |
TQFN4X4-32 |
|
|
1.5 |
5.5 |
1500 /750 |
7+1 |
Y |
Y |
Sync-Boost,Sync-Buck*2, Inverter,RTC LDO, Sync-Boost,Selectable Sync-Boost/Buck,HV LDO, Sync-Boost and Current Regulator for WLED |
TQFN4X4-32 |
|
|
1.5 |
5.5 |
1500 /750 |
7+1 |
Y |
Y |
Sync-Boost,Sync-Buck*2, Inverter,RTC LDO, Sync-Boost,Selectable Sync-Boost/Buck,HV LDO,Sync-Boost and Current Regulator for WLED |
TQFN4X4-32 |
|
|
1.5 |
5.5 |
1500 /750 |
7+6 |
Y |
Y |
Sync-Boost,Sync-Buck*2,Inverter,Sync-Boost, Selectable Sync-Boost/Buck,Sync-Boost and Current Regulator for WLED, RTC LDO,HV LDO, 4-CH LV LDO, I2C |
TQFN5X5-40 |
|
|
2.5 |
5.5 |
1500 /750 |
6+3 |
N |
Y |
Sync-Boost,Sync-Buck*3,Auto Buck/Boost, Sync-Boost for WLED,LV LDO*2,RTC LDO,JEITA, I2C Charger with Dynamic path,USB charger with Auto Power Source Detection |
TQFN5X5-40 |
|
|
2.5 |
5.5 |
1500 /750 |
6+6 |
N |
Y |
Sync-Boost,Sync-Buck*3,Auto Buck/Boost,Sync- Boost for WLED,LV LDO*4, RTC LDO,Power SwitchI2C |
TQFN5X5-40 |
|
