CXPU33107 CXPU33107B为数码相机提供了完整的电源解决方案。与其他2芯AA、1芯锂离子和多电池设计的多通道控制器相比，它们提高了性能、组件数量和尺寸。片上mosfet为关键电源提供高达92~95%的效率。除了CCDBST和LED驱动器外，所有通道DC/DC都以1.5MHz的固定频率工作，以优化尺寸、成本和效率。它们还具有真正的关机和内部补偿功能，以最小化外部组件计数。
1.5V~5.5V输入电压运行。
95%有效的DC/DC转换器。
具有集成功率mosfet的高度集成7通道DC/DC。
主通道可选降压或升压，用于2*AA或锂离子应用。内置6通道同步整流电流型PWM变换器，1通道非同步整流电流型PWM变换器。可选择升压型，带LED开路保护或电流调节型LED驱动器。
内置高压LDO和RTC LDO低功耗（睡眠模式）<10μA的LED驱动器32步亮度控制。
四通道同步整流转换器的内置电源开/关序列。
内置CCD+和CCD电源的通电顺序。
内置短路保护（SCP）和欠压保护（UVP）。
内置热关机功能的DC/DC转换器的逐周电流限制。
内置电池过电压保护功能。
内置软启动功能。
内置增压转换器的真正关闭。
固定1.5MHz/750KHz工作频率。
-
[ CXPU33107 ]
目录
7.相关产品
产品概述 返回TOP
The CXPU33107/CXPU33107B provide a complete power supply solution for digital cameras. They improve performance, component count, and size compared to other multi-channel controllers in 2-cell AA, 1-cell Li-Ion, and multi-battery designs. On-chip MOSFETs provide up to 92~95% efficiency for critical power supplies. Except for CCDBST and LED Driver, All channels DC/DC operate at one fixed frequency of 1.5MHz to optimize size, cost, and efficiency. They also feature True-Shutdown as well as internal compensation to minimize external component count.
产品特点 返回TOP
1.5V ~ 5.5V Input Voltage Operation.
95% Efficient DC/DC Converter.
Highly Integrated 7-CH DC/DC with integrated Power MOSFETs.
Main Channel Selectable Buck or Boost for 2*AA or Li-Ion Application. Built-in 6 Channel Synchronous Rectified Current-Mode PWM Converter, 1 Channel Non-Synchronous Rectified Current-Mode PWM Converter. Selectable Boost Type with LED open protection or Current Regulation Type LED Driver.
32-steps brightness control for LED Driver Built-in HV LDO and RTC LDO Low Power Consumption ( Sleep Mode ) < 10μA.
Built-In Power ON/OFF Sequence for 4 Channel Synchronous Rectified Converter.
Built-In Power ON Sequence for CCD+,CCDpower.
Built-In Short Circuit Protection (SCP)&Under Voltage Protection (UVP) .
Cycle-by-Cycle current limit for DC/DC Converter Built-In Thermal Shutdown Function.
Built-In Battery OVP Function.
Built-In Soft-Start Function.
Built-In True Shutdown in Boost Converter.
Fixed 1.5MHz / 750KHz Operating Frequency.
TQFN4x4-32 Package.
应用范围 返回TOP
DSC Power Supply
技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

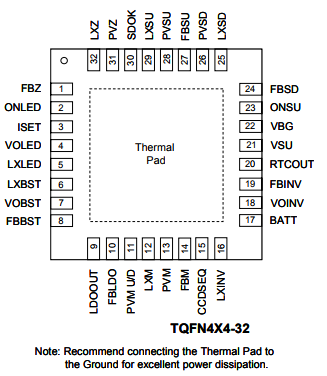

产品封装图 返回TOP
电路原理图 返回TOP
a
相关芯片选择指南 返回TOP 更多同类产品......
|
Multi-Channel PMIC |
|||||||||
|
Part NO. |
Vin(V min. |
Vin(V) max. |
DCDC CH |
DCD CFSW MHz |
Charger A |
LDO CH |
RTC LDOCH |
Note |
Package |
|
2.5 |
5.5 |
6 |
1.5 |
-- |
5 |
-- |
Bay Trail-M,DCDC1 2A, DCDC2~62.5A, LDO1~5 300mA,Load Switch*4 |
TQFN5X5-40 |
|
|
3 |
5.5 |
2 |
1.5 |
-- |
2 |
-- |
DCDC1~2 0.6A/1A LDO1=3V/3.3V/250mA, LDO2=1.2V/250mA |
TQFN3X3-16 |
|
|
2.5 |
5.5 |
4 |
1.5 |
1.5 |
6 |
1 |
DCDC1~4 1.5A/1.5A/2A/1.5A,Power Path, RTCLDO&LDO1=50mA,LDO2~6=300mA |
TQFN6X6-48 |
|
|
Multi-Channel PMIC for DSC |
||||||||
|
Part NO. |
Vin(V) min. |
Vin(V) max. |
FOSC (kHz) |
Built-in Compen sation CH |
Built-in HV LDO |
InternalPower ON/OFF Sequence |
Note |
Package |
|
3 |
5.5 |
1000 |
4+1 |
N |
Y |
Selectable Sync-Boost/buck,Sync-Buck*2, Sync-Boost,1-CH LDO,RTC LDO,RESET |
TQFN4X4-28 |
|
|
2.7 |
5.5 |
2000/ 1000 |
7 |
N |
Y |
Sync-Boost,Sync-Buck*2, Inverter,RTC LDO,Sync -Boost,Selectable Sync-Boost/Buck,Sync-Boost and Current Regulator for WLED |
TQFN4X4-32 |
|
|
1.5 |
5.5 |
1500 /750 |
7+1 |
Y |
Y |
Sync-Boost,Sync-Buck*2, Inverter,RTC LDO, Sync-Boost,Selectable Sync-Boost/Buck,HV LDO, Sync-Boost and Current Regulator for WLED |
TQFN4X4-32 |
|
|
1.5 |
5.5 |
1500 /750 |
7+1 |
Y |
Y |
Sync-Boost,Sync-Buck*2, Inverter,RTC LDO, Sync-Boost,Selectable Sync-Boost/Buck,HV LDO,Sync-Boost and Current Regulator for WLED |
TQFN4X4-32 |
|
|
1.5 |
5.5 |
1500 /750 |
7+6 |
Y |
Y |
Sync-Boost,Sync-Buck*2,Inverter,Sync-Boost, Selectable Sync-Boost/Buck,Sync-Boost and Current Regulator for WLED, RTC LDO,HV LDO, 4-CH LV LDO, I2C |
TQFN5X5-40 |
|
|
2.5 |
5.5 |
1500 /750 |
6+3 |
N |
Y |
Sync-Boost,Sync-Buck*3,Auto Buck/Boost, Sync-Boost for WLED,LV LDO*2,RTC LDO,JEITA, I2C Charger with Dynamic path,USB charger with Auto Power Source Detection |
TQFN5X5-40 |
|
|
2.5 |
5.5 |
1500 /750 |
6+6 |
N |
Y |
Sync-Boost,Sync-Buck*3,Auto Buck/Boost,Sync- Boost for WLED,LV LDO*4, RTC LDO,Power SwitchI2C |
TQFN5X5-40 |
|
