CXAS42180是一款高速、低压、先进的双独立双极/双掷（DPDT）CMOS模拟开关，设计用于从单电源+1.8V到+5.5V的工作。它具有高带宽（300MHz）和低导通电阻（4Ω类型）。
CXAS42180被配置为双双极/双掷（DPDT）设备，具有两个逻辑控制输入，每个逻辑控制输入控制两个复用器/解复用器。该配置还可以用作双差分2对1多路复用器/解复用器。
•低压运行：1.8V至5.5V
•导通电阻：4Ω（典型值）
•低电阻平面度
•-3dB带宽：300MHz
•轨对轨输入和输出操作
•高关隔离度：1MHz时为-75dB
•低串扰：1MHz时为-100dB
•典型功耗（<0.01μW）
•TTL/CMOS兼容
-
[ CXAS42180 ]
目录
7.相关产品
产品概述 返回TOP
The CXAS42180 is a high-speed, low-voltage, advanced dual-independent double-pole/double-throw (DPDT) CMOS analog switch that is designed to operate from a single +1.8V to +5.5V power supply. It features high-bandwidth (300MHz) and low on-resistance (4Ω TYP).
The CXAS42180 is configured as a dual double-pole/double-throw (DPDT) device with two logic control inputs that control two multiplexer/demultiplexer each. The configuration can also be used as a dual differential 2-to-1 multiplexer/demultiplexer.
CXAS42180 is available in Green TQFN-3×3-16L and TQFN-2.5×2.5-16L packages.
产品特点 返回TOP
• Low Voltage Operation: 1.8V to 5.5V
• On-Resistance: 4Ω (TYP)
• Low On-Resistance Flatness
• -3dB Bandwidth: 300MHz
• Rail-to-Rail Input and Output Operation
• High Off-Isolation: -75dB at 1MHz
• Low Crosstalk: -100dB at 1MHz
• Typical Power Consumption (< 0.01μW)
• TTL/CMOS Compatible
• Available in Green TQFN-3×3-16L and
TQFN-2.5×2.5-16L Packages
• Extended Industrial Temperature Range:
-40℃ to +85℃
应用范围 返回TOP
Communication Systems
Cell Phones
Portable Instrumentation
Audio Signal Routing
Audio and Video Switching
PCMCIA Cards
Computer Peripherals
Modems
PDAs
技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

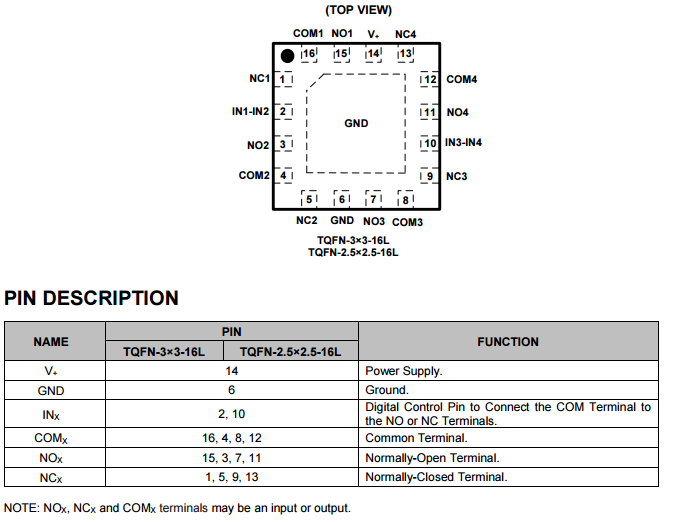

产品封装图 返回TOP
电路原理图 返回TOP
相关芯片选择指南 返回TOP 更多同类产品......
|
模拟信号开关 |
||||||||||||
|
Part Number |
CH |
Type |
VCC (Min)(V) |
VCC (Max)(V) |
Iq (μA) |
RON (Ω) |
-3dB Bandwi dth(MHz) |
VINH (Min) |
VINL (Max)V |
tON (ns) |
tOFF (ns) |
Package |
|
2 |
01:02 |
1.8 |
5.5 |
1 |
4.5 |
300 |
1.6 |
0.5 |
70 |
20 |
TQFN-2.1x1.6-10L |
|
|
2 |
01:02 |
1.8 |
4.3 |
1 |
6 |
300 |
1.6 |
0.5 |
20 |
20 |
UTQFN-1.8x1.4-10L |
|
|
2 |
01:02 |
1.8 |
4.2 |
1 |
0.4 |
40 |
1.6 |
0.5 |
96 |
16 |
TQFN-2.1x1.6-10L |
|
|
2 |
01:02 |
1.8 |
4.2 |
1 |
0.4 |
40 |
1.6 |
0.5 |
88 |
16 |
TQFN-1.8x1.4-10L |
|
|
1 |
01:02 |
1.8 |
5.5 |
1 |
2.5 |
120 |
2.4 |
0.8 |
11 |
30 |
SC70-6 |
|
|
2 |
01:02 |
1.8 |
5.5 |
1 |
2.5 |
120 |
2.4 |
0.8 |
11 |
8 |
MSOP-10 |
|
|
1 |
01:02 |
1.8 |
5.5 |
1 |
0.5 |
30 |
2.4 |
0.8 |
21 |
9 |
MSOP-8 |
|
|
2 |
01:02 |
1.8 |
5.5 |
1 |
0.5 |
15 |
2.4 |
0.8 |
50 |
15 |
TDFN-3x3-10L MSOP-10 |
|
|
1 |
01:02 |
1.8 |
5.5 |
5 |
4.5 |
300 |
1.5 |
0.6 |
20 |
15 |
SC70-6 |
|
|
2 |
01:02 |
1.8 |
5.5 |
5 |
4.5 |
270 |
1.5 |
0.6 |
20 |
15 |
TDFN-3x1-12L |
|
|
1 |
01:02 |
1.8 |
5.5 |
5 |
9 |
600 |
1.5 |
0.6 |
20 |
15 |
SC70-6 |
|
|
4 |
01:02 |
5 |
5 |
20 |
12 |
500 |
2 |
0.6 |
25 |
13 |
SOIC-16 TSSOP-16 SSOP-16 |
|
|
4 |
01:02 |
5 |
5 |
20 |
12 |
500 |
2 |
0.6 |
25 |
13 |
SOIC-16 TSSOP-16 SSOP-16 |
|
|
4 |
01:02 |
1.8 |
4.35 |
1 |
0.5 |
70 |
1.6 |
0.5 |
52 |
25 |
TQFN-3x3-16L |
|
|
4 |
01:02 |
2.5 |
5.5 |
15 |
4 |
380 |
1.5 |
0.5 |
15 |
9 |
TQFN-3x3-16L |
|
|
2 |
01:02 |
2.5 |
5 |
6 |
4 |
400 |
1.5 |
0.6 |
15 |
11 |
UTQFN-1.8x1.4-10L MSOP-10 |
|
|
2 |
01:02 |
2.5 |
5 |
3.5 |
0.6 |
80 |
1.5 |
0.6 |
17 |
24 |
UTQFN-1.8 |
|
|
1 |
01:02 |
2.5 |
5 |
8 |
4 |
400 |
1.65 |
0.6 |
15 |
11 |
SOT-23-6 |
|
|
4 |
01:02 |
1.8 |
4.35 |
1 |
0.5 |
70 |
1.6 |
0.5 |
52 |
25 |
TQFN-2.6x1.8-16L |
|
|
1 |
01:02 |
1.8 |
5.5 |
0.1 |
0.8 |
90 |
1.6 |
0.4 |
56 |
32 |
SC70-6 |
|
|
4 |
01:02 |
1.8 |
5.5 |
1 |
4 |
300 |
1.6 |
0.5 |
31.5 |
30 |
TQFN-3x3-16L TQFN-2.5x2.5-16L |
|
|
4 |
01:02 |
1.8 |
5.5 |
1 |
4 |
300 |
1.6 |
0.5 |
29.5 |
29.5 |
TQFN-3x3-16L |
|
|
4 |
01:02 |
1.8 |
5.5 |
1 |
4 |
300 |
1.6 |
0.5 |
36 |
30 |
TQFN-2.6x1.8-16L |
|
|
4 |
01:02 |
1.8 |
5.5 |
1 |
4 |
300 |
1.6 |
0.5 |
32 |
26 |
TQFN-2.6x1.8-16L |
|
|
4 |
01:02 |
1.8 |
5.5 |
1 |
4.5 |
300 |
1.6 |
0.5 |
40 |
30 |
TQFN-2.6x1.8-16L |
|
|
1 |
01:08 |
3.6 |
11 |
20 |
36 |
90 |
2.4 |
0.8 |
60 |
60 |
SSOP-16 TSSOP-16 SOIC-16 TQFN-3x3-16L |
|
|
2 |
01:04 |
3.6 |
11 |
20 |
36 |
120 |
2.4 |
0.8 |
60 |
60 |
SSOP-16 TSSOP-16 SOIC-16 TQFN-3x3-16L |
|
|
3 |
01:02 |
3.6 |
11 |
20 |
36 |
140 |
2.4 |
0.8 |
60 |
70 |
SSOP-16 TSSOP-16 SOIC-16 TQFN-3x3-16L |
|
|
2 |
01:02 |
1.8 |
5.5 |
1 |
0.4 |
13 |
2.4 |
0.8 |
25 |
28 |
WLCSP-2.0x1.5-10B |
|
|
2 |
01:02 |
1.8 |
5.5 |
5 |
4.5 |
300 |
1.5 |
0.6 |
26 |
20 |
WLCSP-2.0x1.5-10B MSOP-10 TDFN-3x3-10L TQFN-1.8x1.4-10L |
|
|
2 |
01:04 |
1.8 |
4.2 |
1 |
0.5 |
30 |
1.6 |
0.5 |
20 |
20 |
TQFN-3x3-16L TSSOP-16 |
|
|
1 |
01:08 |
2.5 |
5.5 |
6 |
48 |
180 |
1.7 |
0.5 |
60 |
70 |
SSOP-16 TSSOP-16 SOIC-16 TQFN-3x3-16L |
|
|
2 |
01:04 |
2.5 |
5.5 |
6 |
48 |
180 |
1.7 |
0.5 |
60 |
70 |
SSOP-16 TSSOP-16 SOIC-16 TQFN-3x3-16L |
|
|
3 |
01:02 |
2.5 |
5.5 |
6 |
48 |
180 |
1.7 |
0.5 |
60 |
70 |
SSOP-16 TSSOP-16 SOIC-16 TQFN-3x3-16L |
|
|
4 |
SPST |
2.5 |
5.5 |
6 |
24 |
180 |
1.7 |
0.5 |
40 |
100 |
TSSOP-14 SOIC-14 |
|
|
1 |
01:04 |
2.5 |
5.5 |
6 |
24 |
180 |
1.7 |
0.5 |
50 |
85 |
MSOP-10 |
|
|
1 |
01:04 |
1.8 |
4.2 |
1 |
4 |
150 |
1.4 |
0.3 |
35 |
9 |
TDFN-3x3-10L MSOP-10 |
|
|
4 |
01:02 |
1.8 |
5.5 |
1 |
4.5 |
300 |
1.6 |
0.5 |
40 |
30 |
TSSOP-16 |
|
|
2 |
01:02 |
1.8 |
4.2 |
1 |
0.5 |
55 |
1.6 |
0.5 |
17 |
27.5 |
TQFN-1.8x1.4-10L |
|
|
2 |
01:02 |
1.8 |
4.3 |
1 |
4.5 |
550 |
1.6 |
0.5 |
10 |
22 |
TQFN-1.8x1.4-10L MSOP-10 UTQFN-1.8x1.4-10L |
|
|
2 |
01:02 |
1.8 |
4.3 |
1 |
4.5 |
500 |
1.6 |
0.5 |
11 |
20 |
TQFN-2.1x1.6-10L |
|
|
2 |
01:02 |
1.8 |
5.5 |
30 |
5 |
550 |
1.5 |
0.35 |
15 |
20 |
TQFN-2.6x1.8-16L |
|
|
2 |
01:02 |
1.8 |
4.3 |
1 |
5 |
550 |
1.6 |
0.5 |
15 |
20 |
MSOP-10 UTQFN-1.8x1.4-10L |
|
|
2 |
01:04 |
1.8 |
4.2 |
1 |
4 |
150 |
1.6 |
0.5 |
17 |
9 |
TQFN-3x3-16L TSSOP-16 |
|
