CXAS42181是一种双、高速、低压、双极/双掷（DPDT）CMOS模拟开关，设计用于从单个1.8V到5.5V电源工作。它具有高带宽（300MHz）和低导通电阻（4Ω类型），有针对性地应用于音频交换。
CXAS42181由四个SPTT开关组成。该配置可用作具有单个开关启用（IN）输入的双向四路2信道复用器/解复用器。
•低压运行：1.8V至5.5V
•低导通电阻：4Ω（典型值）
•低电阻平面度
•-3dB带宽：300MHz
•高关隔离度：1MHz时为-75dB
•低串扰：1MHz时为-100dB
•轨对轨输入和输出操作
•典型功耗（<0.01μW）
•TTL/CMOS兼容
-
[ CXAS42181 ]
目录
7.相关产品
产品概述 返回TOP
The CXAS42181 is a dual, high-speed, low-voltage, double-pole/double-throw (DPDT) CMOS analog switch that is designed to operate from a single 1.8V to 5.5V power supply. It features high-bandwidth (300MHz) and low on-resistance (4Ω TYP), targeted applications for audio switching.
The CXAS42181 consists of four SPDT switches. The configuration can be used as a bidirectional quad 2-channel multiplexer/demultiplexer with a single switch-enable (IN) input.
CXAS42181 can handle rail-to-rail analog signals and is available in Green TQFN-3×3-16L package.
产品特点 返回TOP
• Low Voltage Operation: 1.8V to 5.5V
• Low On-Resistance: 4Ω (TYP)
• Low On-Resistance Flatness
• -3dB Bandwidth: 300MHz
• High Off-Isolation: -75dB at 1MHz
• Low Crosstalk: -100dB at 1MHz
• Rail-to-Rail Input and Output Operation
• Typical Power Consumption (< 0.01μW)
• TTL/CMOS Compatible
• Available in Green TQFN-3×3-16L Package
• Extended Industrial Temperature Range:
-40℃ to +85℃
应用范围 返回TOP
Communication Systems
Cell Phones
Portable Instrumentation
Audio Signal Routing
Audio and Video Switching
PCMCIA Cards
Computer Peripherals
Modems
PDAs
技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！
产品封装图 返回TOP

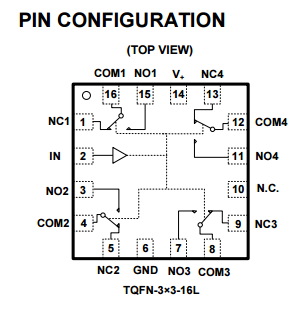

电路原理图 返回TOP
